4.

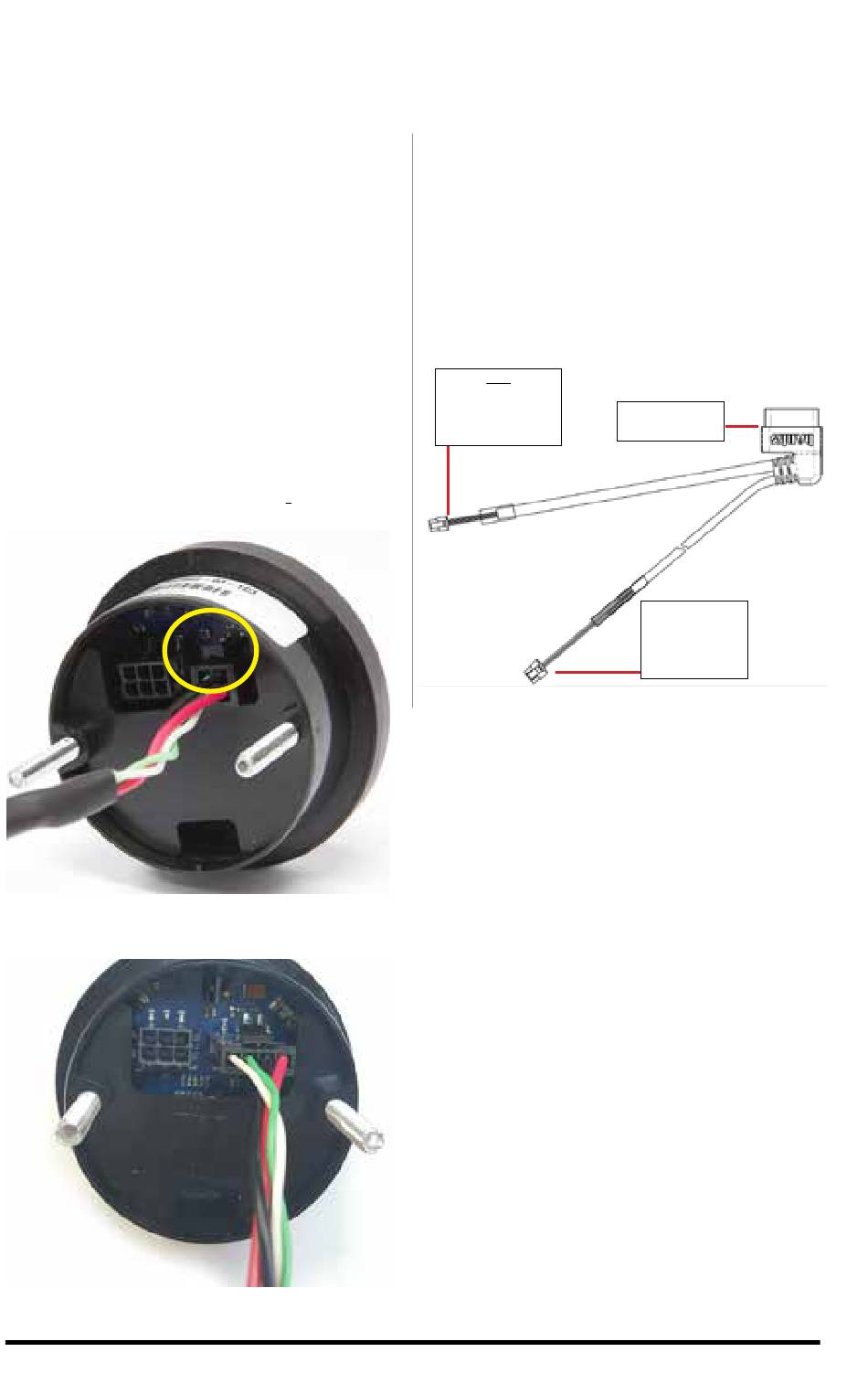

Connect the Banks OBDII Cable to
the 4-pin port on the iDash 1.8 with
the locking tab up.
If you have the standard iDash 1.8 refer
to Figure 2-3. If you have the iDash 1.8
Banks Bus 1, refer to Figure 2-4.
If connecting multiple gauges
refer to "2.7 Advanced B-Bus
Network - Multiple iDash 1.8" on
page 17.
5.
Secure the Banks OBDII Cable away
from any moving parts or sharp edges
using the supplied cable ties.
FIGURE 2-3
iDash 1.8 Standard
FIGURE 2-4
iDash 1.8 Banks Bus 1
2.2 OBDII Connection
to Six-Gun, EconoMind,
SpeedBrake
The OBDII Cable for Banks Bus 1
products has one extra wire coming
from the OBDII to connect to Banks
Bus 1 Tuners (Six-Gun, EconoMind,
SpeedBrake). See Figure 2-5.
6-Pin OR 8-Pin
Connector to
Banks Bus 1
Products
FIGURE 2-5
OBD-II
Connector
4-pin
Connector
to iDash 1.8
Banks Bus 1
13
97654 v.7
