Fx Processor - Pitch Correct - QSC TouchMix-30 Pro User Manual

FX Processor – Pitch Correct
Corrects intonation of the audio signal.
IMPORTANT!: Pitch-Correct may
be enabled/disabled by User Buttons
without regards to the position of the
Enable button on this screen. If you don't
hear any difference with Pitch Correct
enabled, check to make sure the feature
has not been disabled using the User
Button feature. Refer to the User Button
topic.
1.
Pitch Correct Enable button
Assigns Pitch Correct to the currently selected
channel and enables/disables the effect.

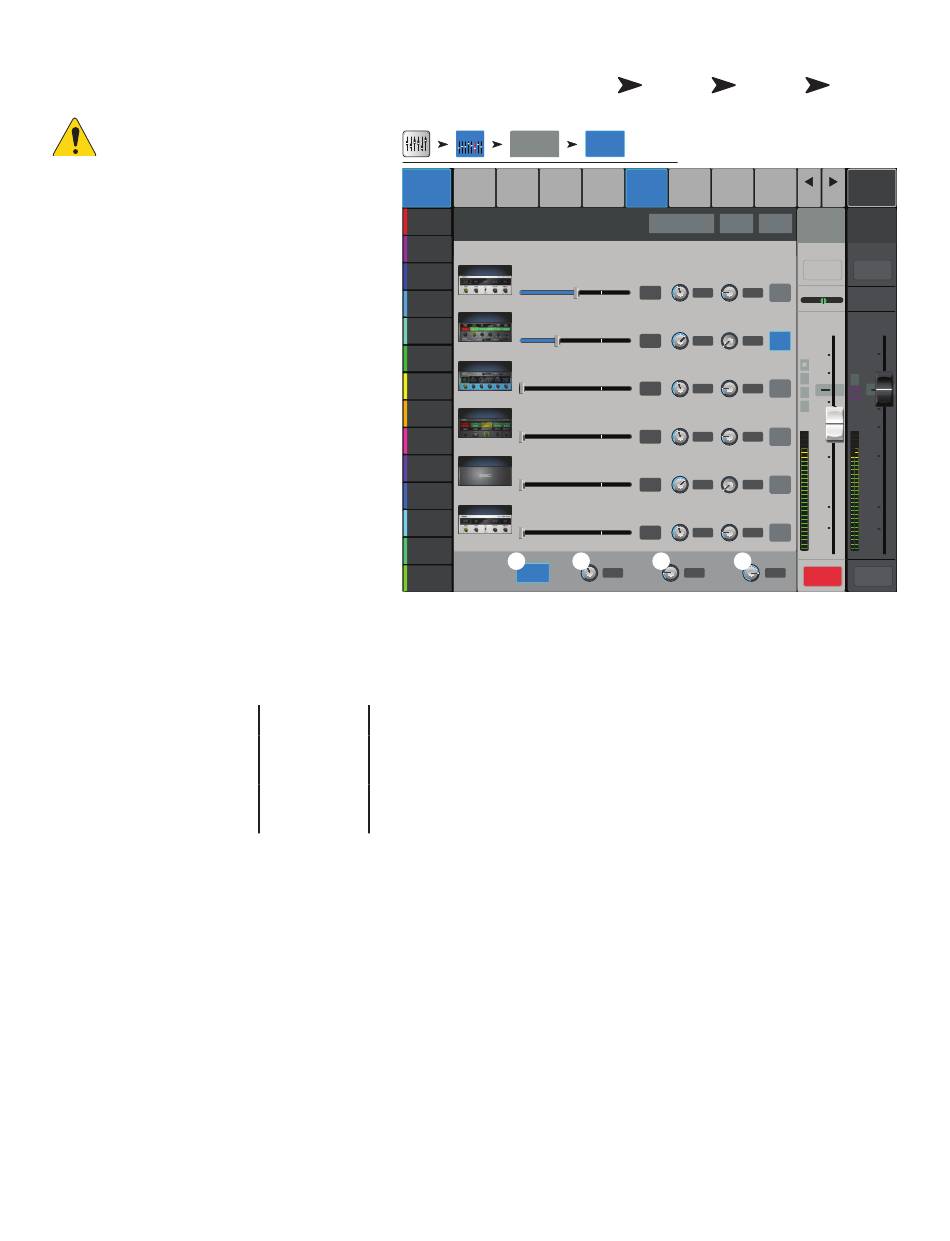

2. Key knob – Selects a key for the pitch
corrector to use in determining the target note. If
"None" is selected, the Pitch Corrector will target
the nearest chromatic pitch. The table shows the
Key selections.
3. – Sets the ratio of uncorrected
Blend knob
(Dry) to corrected (Wet) signal. When fully
clockwise, only corrected signal will be heard.
When fully counter clockwise, only the original
signal will be heard. Intermediate settings will
result in a doubling effect.
4.
Correct Rate knob
Key Selection
None
C
C sharp / D flat
D
D sharp / E flat
