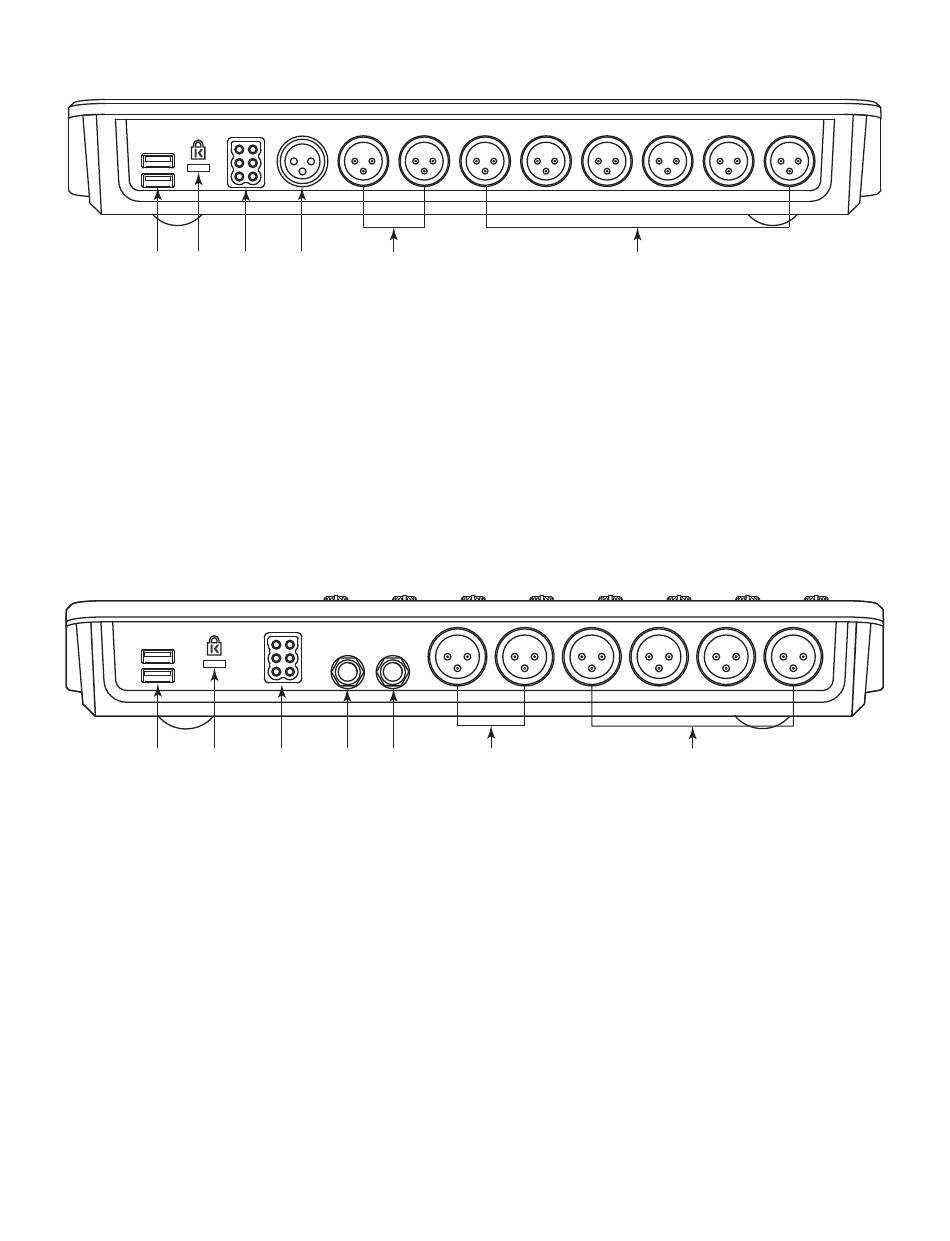

Rear Panel (TouchMix-16)

USB
®
1 2
1. – For attaching USB storage devices
USB 3.0, Type A
2.
K & Lock® Security Slot
3. – Use the power supply delivered with the mixer, do not substitute.
Power Supply
4.
Talkback microphone
5.
Main Right and Left output
6.
Auxiliary outputs 1 through 6

Rear Panel (TouchMix-8)

USB
®
1 2
1. – For attaching USB storage devices
USB 3.0, Type A
2.
K & Lock® Security Slot
3. Power Supply – Use the power supply delivered with the mixer, do not substitute.
4. – Stereo 1/4" TRS. Line or headphone output is directed to this output when a channel Cue is activated.
Phones
5. – Stereo 1/4" TRS. Line or in-ear output. This output is wired in parallel with Aux 3 and 4 XLRs.
Aux 3/4
6.
Main Right and Left output
7.
Auxiliary outputs 1 through 4
1 Drives must be formatted using the FAT32 file system. For best results use 7200 RPM, USB 3 hard drives or high-speed SSD. Drive performance is
critical for recording. For more information and to see a list of qualified drives, visit qsc.com. At this time, the TouchMix does not support importing or re-
importing digital audio files that have been created or edited on another device.
2 The TouchMix supports "class compliant" USB MIDI devices. QSC has verified proper operation with these USB MIDI footswitches: iCON G-BOARD and
Logidy UMI3
1001108-01-F
Power Talkback Main Right Main Left
3 4 5
– Compatible with the MicroSaver Security Cable
– Balanced female XLR
– Balanced male XLRs
– Balanced male XLRs
Power
Phones Aux 3/4
3 4 5
– Compatible with the MicroSaver Security Cable
– Balanced male XLRs
– Balanced male XLRs
Aux 6 Aux 5
1 , MIDI 2 foot switch, and Wi-Fi adapter.
4
Right Left
6
1 , MIDI 2 foot switch, and Wi-Fi adapter.
32
Aux 4 Aux 3 Aux 2
6
3 2 1
7
Aux 1
