FX Processor – Lush Reverb
Reverb presets with an "L" suffix use a DSP reverb
model with a more "lush" character.

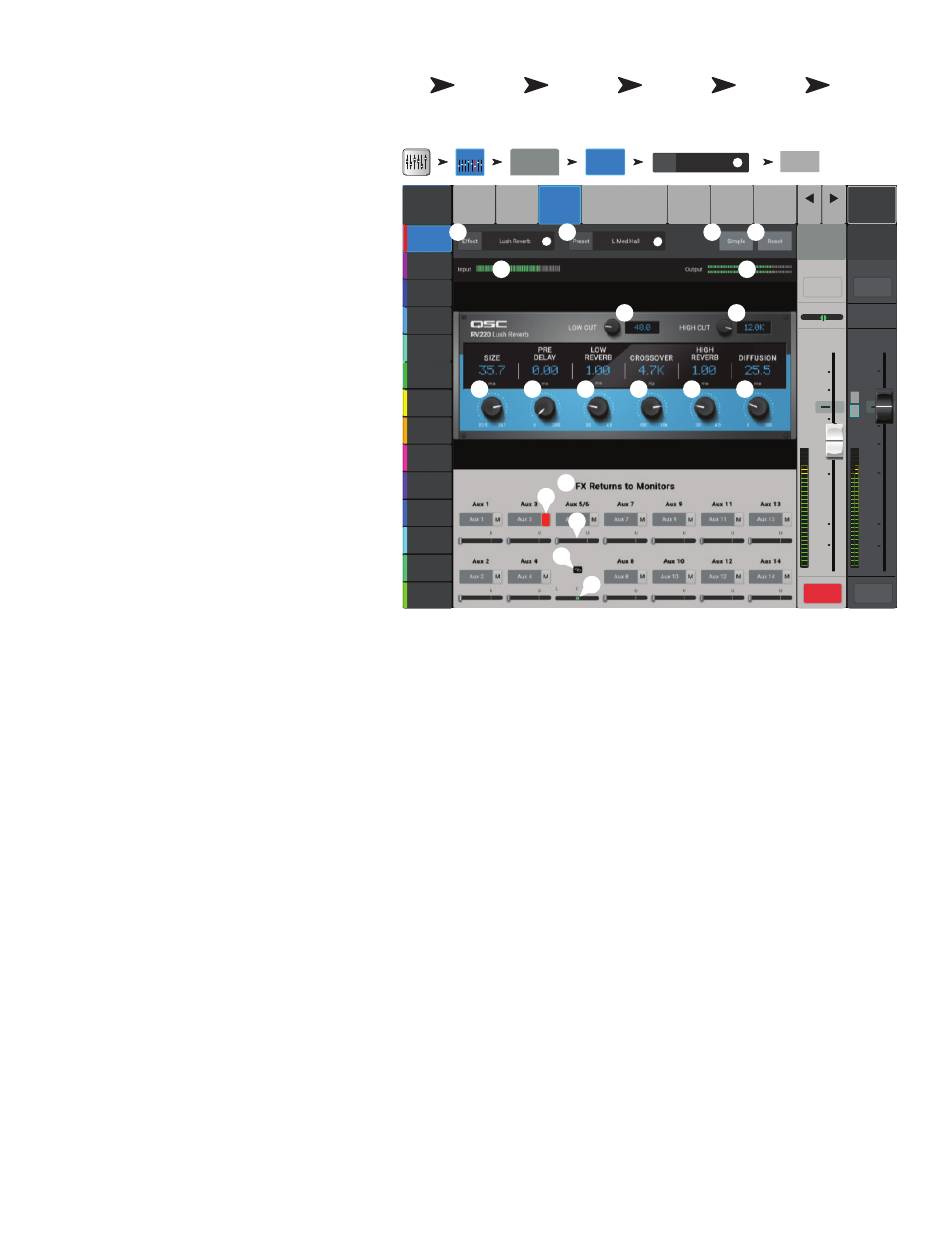

1. Name of the current Effect. Touch to
Effect –
select an Effect Type.
2. Name of the current preset. Touch
Preset –
to access the library of Presets.
3. Turns Simple mode on
Simple button –
and off. Hides all but the essential controls on
the selected FX. Not present on Mono
and Stereo Delay effects.
4. Returns processor and
Reset button –
Aux Send controls to default settings.
5. Displays the level of
Input meter –
incoming, mono audio signal.
6. Output meter – Displays the stereo level
of the processed output signal.
7. – Attenuates, or "cuts" frequencies
Low Cut
below the set frequency. Range is 20 Hz to
2 kHz.
8. Attenuates, or "cuts" frequencies
Hi Cut –
above the set frequency. Range is 200 Hz
to 20 kHz.
9. Adjusts dimension of the simulated
Size –
acoustic space in meters.
10. Sets the time interval between
Pre Delay –
input signal and first reflection
11. Low Reverb – Adjusts the reverb decay time for frequencies below the crossover frequency.
12. Sets the crossover point for the Low Reverb Time and the High Reverb Time.
Crossover –
13. Adjusts the reverb decay time for frequencies above the crossover frequency.
High Reverb –
14. Adjusts the early reflections to simulate a more or less complex reflective acoustic surface.
Diffusion –
15. FX Returns to Monitors:
a. M – Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send Slider – Sets the level of the Effect to the Aux output.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
