Sub Groups − FX Sends
(TouchMix-30 Pro only)
Controls how much of the Sub Group audio is sent to
the FX devices.

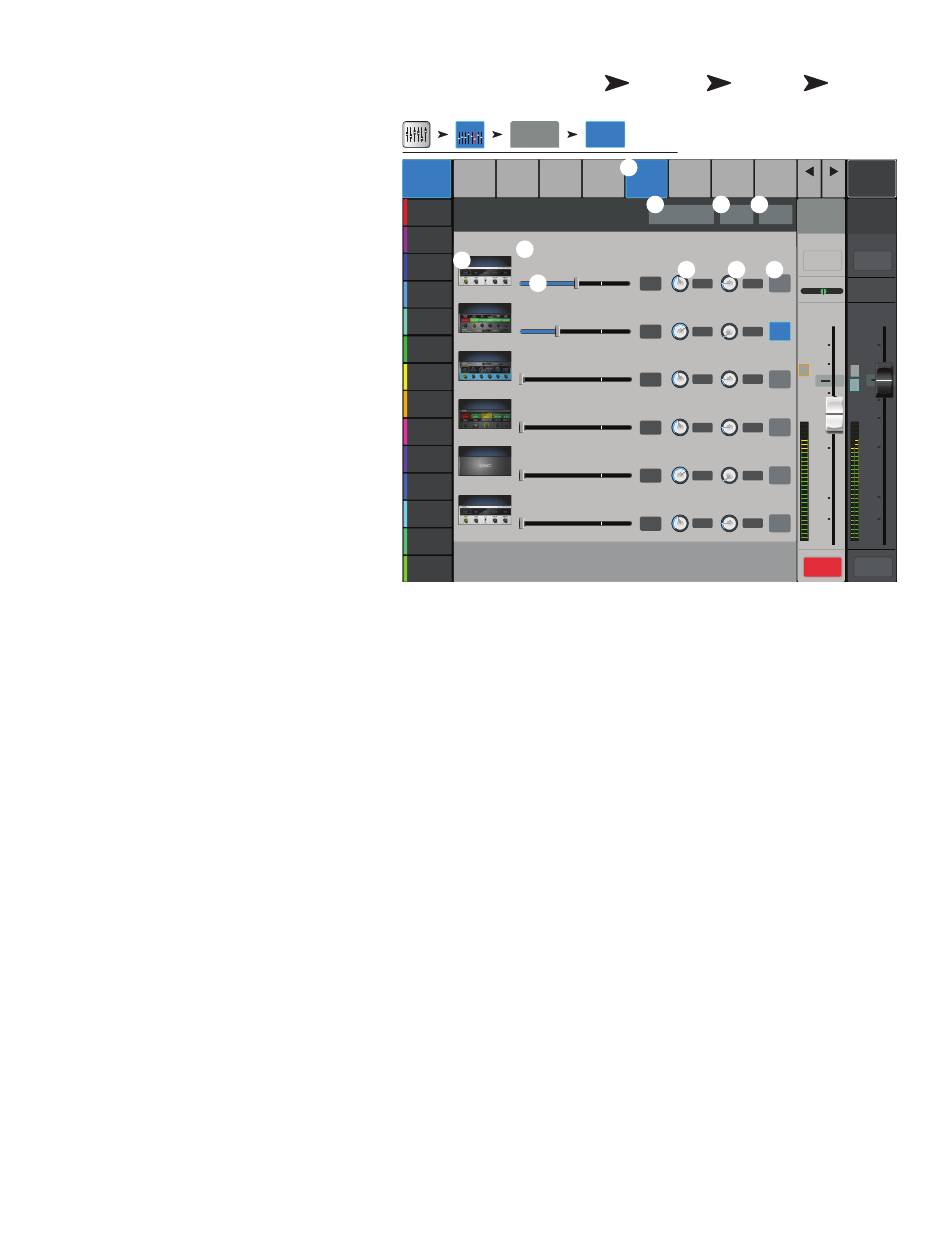

1. – Selects the FX Sends screen.
FX tab
2.
FX Overview button –
FX Overview screen for a view of all 6 FX sends from
all inputs.
3. Simple – Hides the Global FX Parameters for
a simpler setup.
4. – Resets the FX sliders, Pre/Post
Reset
settings, and the Pitch Correct settings. This
button does not reset the settings for the FX
processors including the Global FX Parameters
on this screen.
5. – The icon indicates what
FX Buses
processor has been selected for an FX mix.
Touch the icon to navigate to the processor.
6. FX Label – The larger text identifies the FX bus
1 – 6, and does not change. The smaller text can
be changed in the FX processor Setup screen.
7. FX Send sliders – Sets the level of audio "sent"
from the channel to the FX mix; "-inf" is off. The
digital read-out to the right of the slider indicates
the slider setting.
8. Global FX Parameters
control over the two most important parameters of the selected FX device. The controls are different depending on the selected
processor.
9.
Pre/Post fader –
off for all inputs.
