Output Channel − Compressor / Limiter
When set as a Limiter, prevents the audio level from
exceeding a preset threshold.

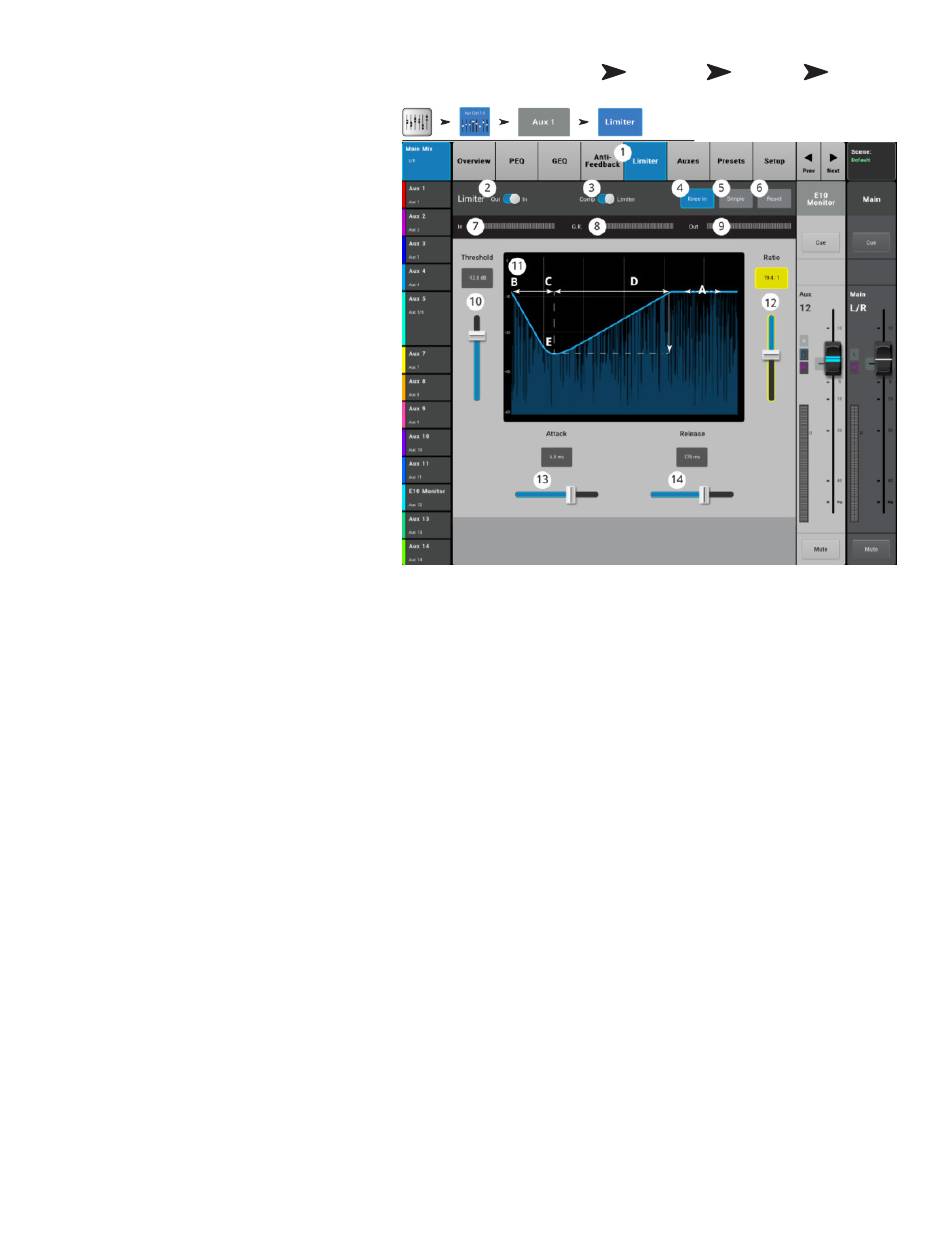

1.
Comp / Limiter tab
Limiter screen. Note that the label on this tab will change
depending on the setting of the Comp/Limiter switch.
2.
Comp / Limiter In/Out switch
– Engages or disengages the compressor or
limiter. Note that the label on this tab will change
depending on th setting of the Comp/Limiter
switch.
3.
Comp/Limit switch –
Compressor or Limiter mode. If "Comp" is
selected, the processor is identical in operation
to the input channel compressors.
4. – The knee determines
Knee In button
whether the compressor/limiter transitions
abruptly or gradually as the threshold is crossed.
5. – Hides all controls except:
Simple button
• Limiter In button
• Simple button
• Reset button
6. Reset button – Sets all the Limiter
controls to their factory default position.
7. – RMS input signal level
In meter
8. GR meter – Gain Reduction – indicates how much the signal level has been reduced by the Limiter.
9. – Output signal level
Out meter
10.
Threshold slider –
11. – When the Limiter is engaged, the trace is blue.
Limiter graph
• (A) – The level at which limiting begins.
Threshold
• Attack time (B to C) – The time it takes for the limiter to reach maximum limiting after the input exceeds the threshold level.
• (A to E) – The amount of limiting applied to the signal.
Ratio
• Release time (C to D) – The time it takes for the limited signal to rise to the threshold level once the input level no longer exceeds the
threshold.
• Vertical scale = dB
12. – Sets the ratio of input level change to output level change when the signal exceeds the threshold.
Ratio slider
13. Attack slider – Adjusts how quickly the processor reacts to a signal that exceeds the threshold.
14. – Adjusts how quickly the processor stops compressing or limiting when signal falls below the Threshold.
Release slider
1001108-01-F
– Selects the Comp /
Selects
Sets the point at which the compressor/limiter will begin to reduce signal level.
Touch Aux Out
Home
1–8 or 9–14
54
Touch an Aux Touch the
Channel Limiter Tab
