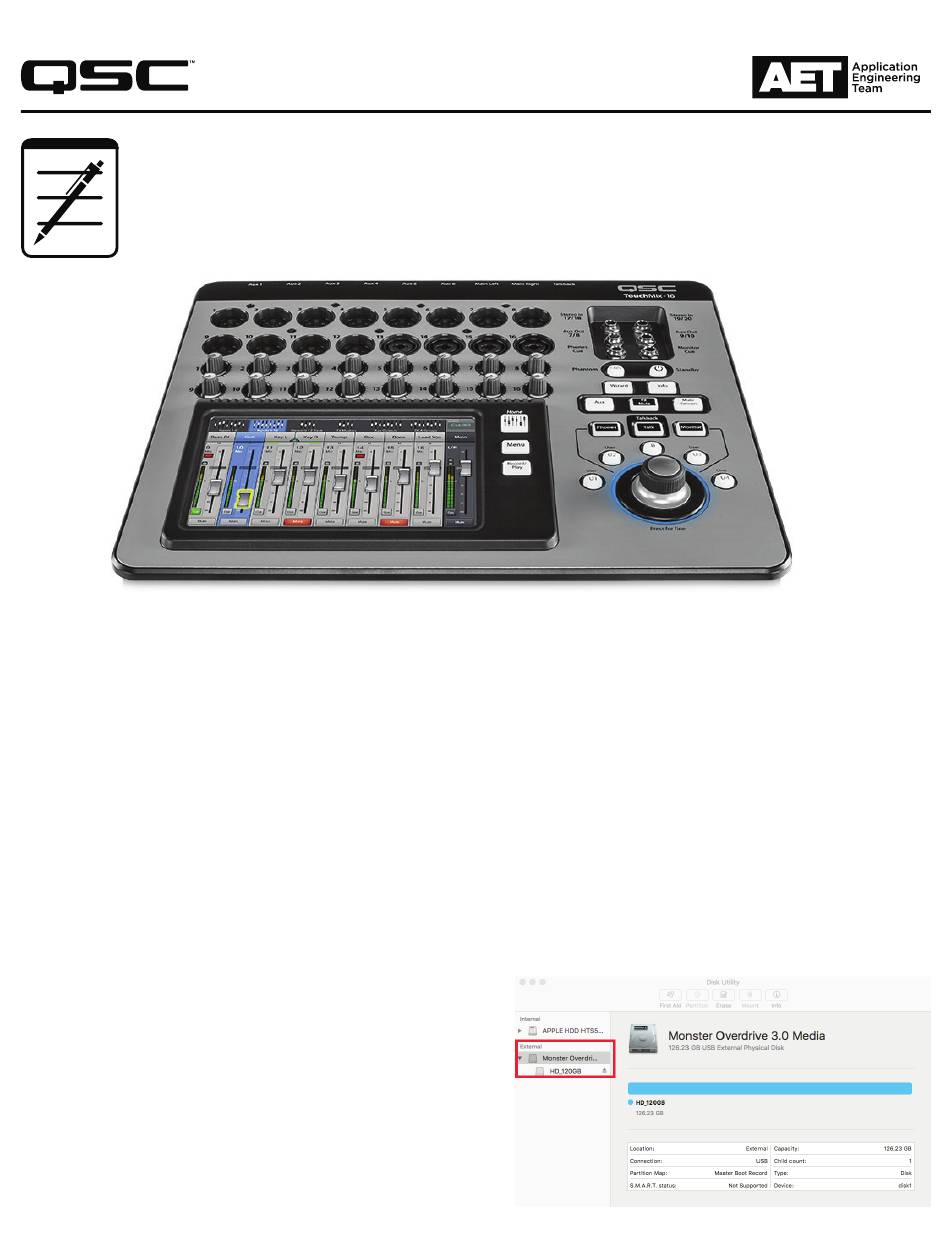

QSC TouchMix-30 Pro Technical Notes

Hide thumbs Also See for TouchMix-30 Pro:

Technical Notes

TouchMix Digital Mixers

Disc formatting in Apple El Capitan OS

Apple has made changes to the disc utility within the El Capitan (10.11) operating system that have affected the

FAT32 format process.

When formatting a hard drive with the Disc utility on a Mac running the El Capitan OS, you will need to select the

MSDOS format option, which is how Mac classifies FAT32. In the MS-DOS option, El Capitan has added a sepa-

rate "Partition" selection that offers the options GUID or MBR (Master Boot Record).

•

Do not select GUID for use with a TouchMix mixer because it creates a separate smaller partition that the

mixer will see as the primary partition; in a recording session, the mixer would use that partition and conse-

quently run out of space within only a minute or two, causing the recording to stop. Also, if you use the drive

to update the mixer's firmware, the mixer would be unable to find the update file.

•

Instead, select MBR (Master Boot Record) because

it will format the drive as one single partition. The

procedure details follow below.

1. Connect the external hard drive to your computer

and launch the Disc Utility.

2. In the Disk Utility left column, select the drive (see

Figure 1).

4 March 2016

Figure 1

Table of Contents

Do you have a question about the TouchMix-30 Pro and is the answer not in the manual?

Page 1: Technical Notes
Technical Notes TouchMix Digital Mixers Disc formatting in Apple El Capitan OS Overview Apple has made changes to the disc utility within the El Capitan (10.11) operating system that have affected the FAT32 format process. When formatting a hard drive with the Disc utility on a Mac running the El Capitan OS, you will need to select the MSDOS format option, which is how Mac classifies FAT32.
Page 2 TouchMix. Exit the Disk Utility when you are done. Figure 3. Figure 4. Figure 5. © 2016 QSC, LLC. All rights reserved. QSC, and the QSC logo are registered trademarks in the U.S. Patent and Trademark Office and other countries. qsc.com...
