To configure this, you must connect the Aux port to an asynchronous terminal (or to a PC with terminal emulation).
Note
The configuration for the terminal must be:
- Speed: 115200 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No type of flow control.
Connection to the configuration port can be carried out using the the RJ45 connector cable, supplied with the device,
and an RJ45 female-DB9 female adapter (also provided).

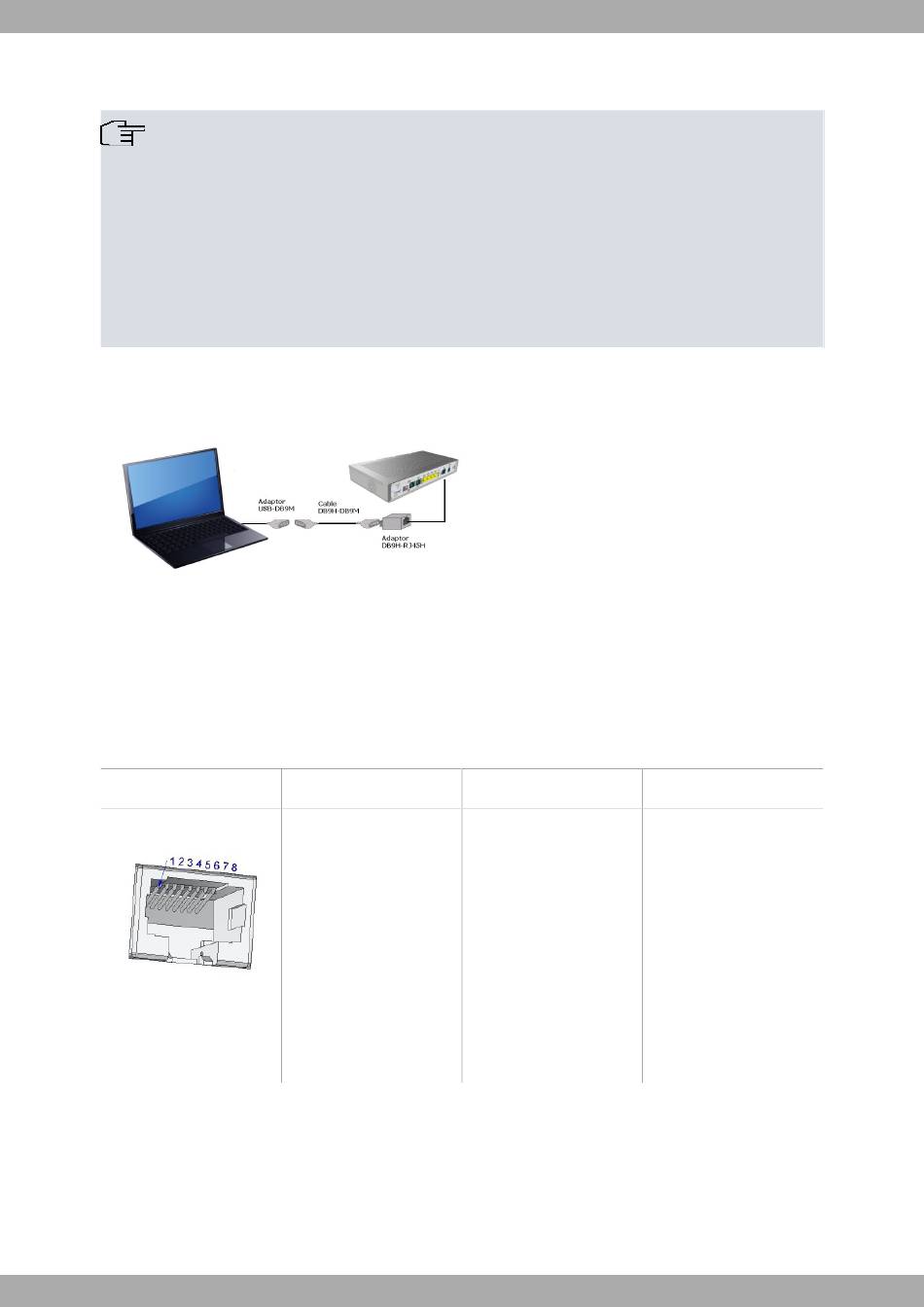

Connecting for Configuration
Fig. 20:
For further information, please see manual: "Teldat Dm704-I Configuration and Monitoring" .
A.4 Connectors
A.4.1 LAN connectors
RJ45 LAN
Teldat M2/M2L
RJ45 PIN
1
2
3
4
5
6
7
8
FE Signals
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
Technical Information
GE Signals
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
