- Speed: 9600 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No type of flow control.
Connection to the configuration port can be done through the RJ45 connector cable, supplied together with the
device, and the RJ45 Female-DB9 Female adapter (also provided).

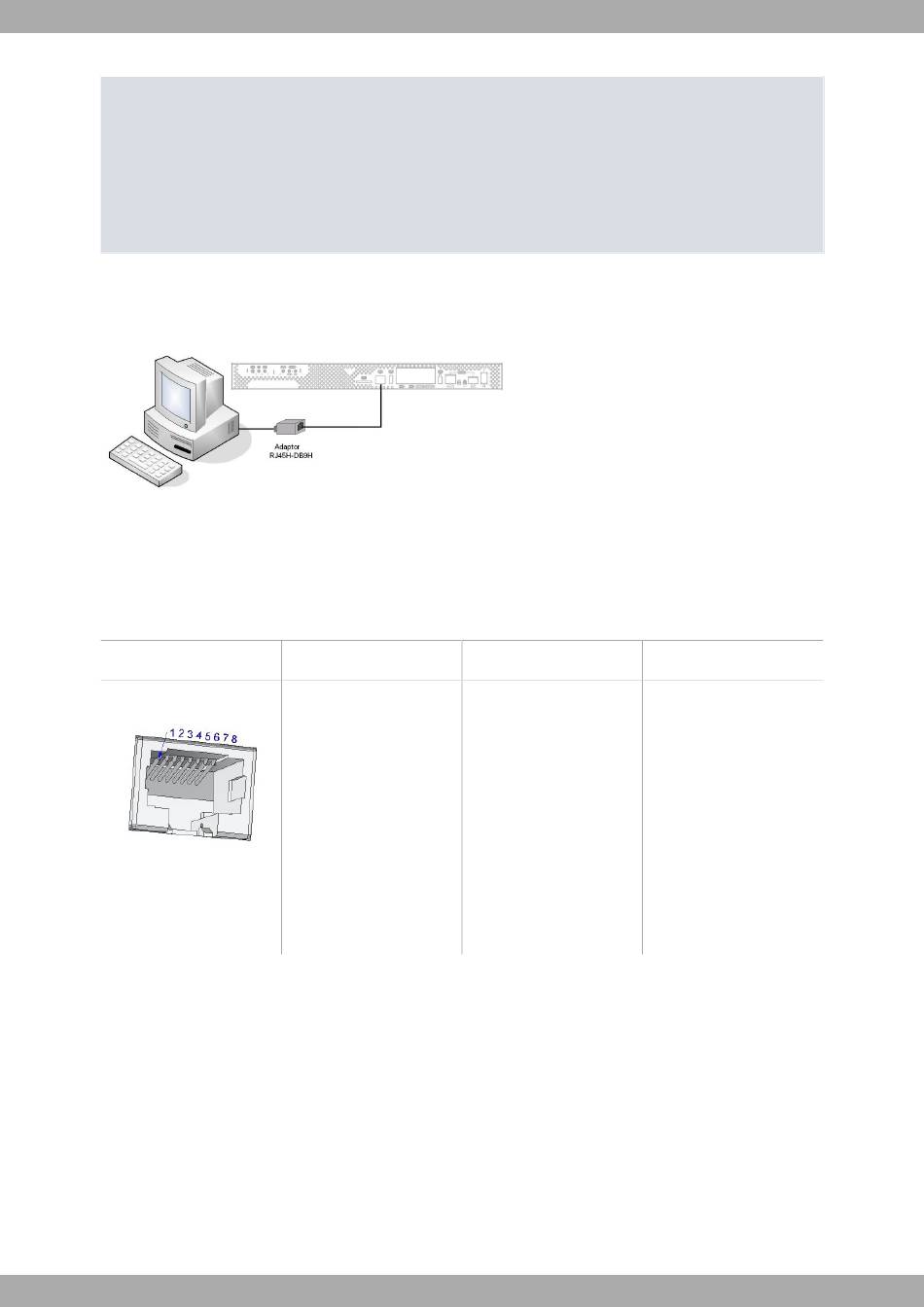

Connecting for Configuration
Fig. 13:
A.4 Connectors
A.4.1 LAN connector
RJ45 LAN
Teldat Router iM8-Cx
RJ45 PIN
1
2
3
4
5
6
7
8
FE Signals
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
Technical Information
GE Signals
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
