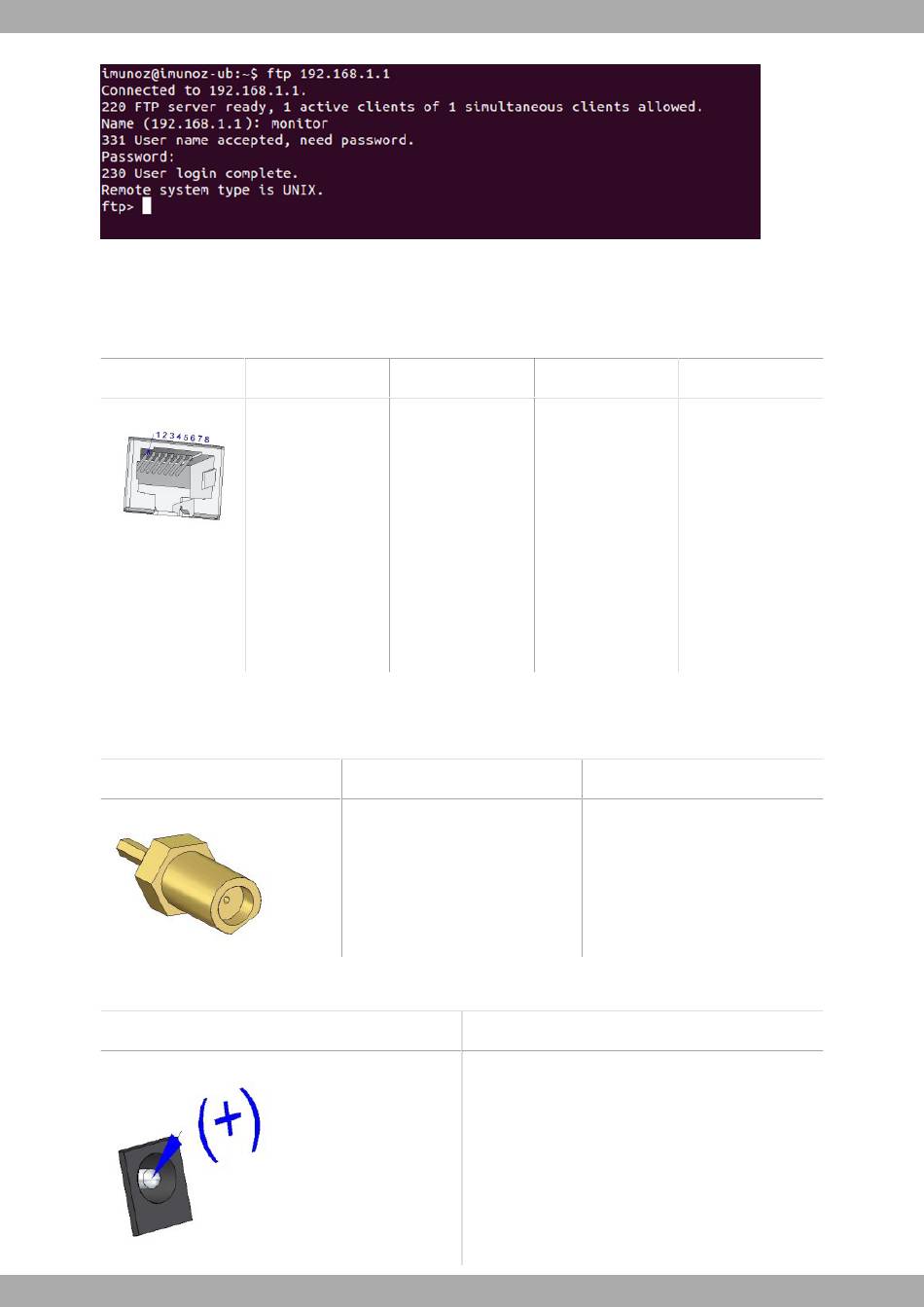

A.3 Connectors
A.3.1 LAN Connector
RJ45 LAN
A.3.2 WWAN Connector
The Teldat Connect-4GePlus has up to four SMA female connectors installed.
A.3.3 Power Supply Connector
Jack 5.5/2.5mm
Teldat Connect-4GePlus
RJ45 PIN FE Signals
1 BI-DA+
2 BI-DA-
3 BI-DB+
4 --
5 --
6 BI-DB-
7 --
8 --
PIN
Internal
External
GE Signals
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
ANT
RF in/out
GND
PIN
Internal -> POSITIVE
External -> NEGATIVE
Technical Information
PoE Signals
POE+(A)
POE+(A)
POE-(A)
POE+(B)
POE+(B)
POE-(A)
POE-(B)
POE-(B)
