Specifications
VLT
Advanced Harmonic Filter AHF 005/AHF 010
2
X1 Mains 35 mm
2
X2 Drive 35 mm
2
X3/X4 Capacitor disconnect 16 mm
2
A/B Temperature 2.5 mm
624 mm [24.6 in]
PE M8
157 mm [6.2 in]
240 mm [9.4 in]
157 mm [6.2 in]
7
7
9 mm [0.4 in]
9 mm [0.4 in]
577 mm [22.7 in]
624 mm ± 3 mm [24.6 in ± 0.10 in]

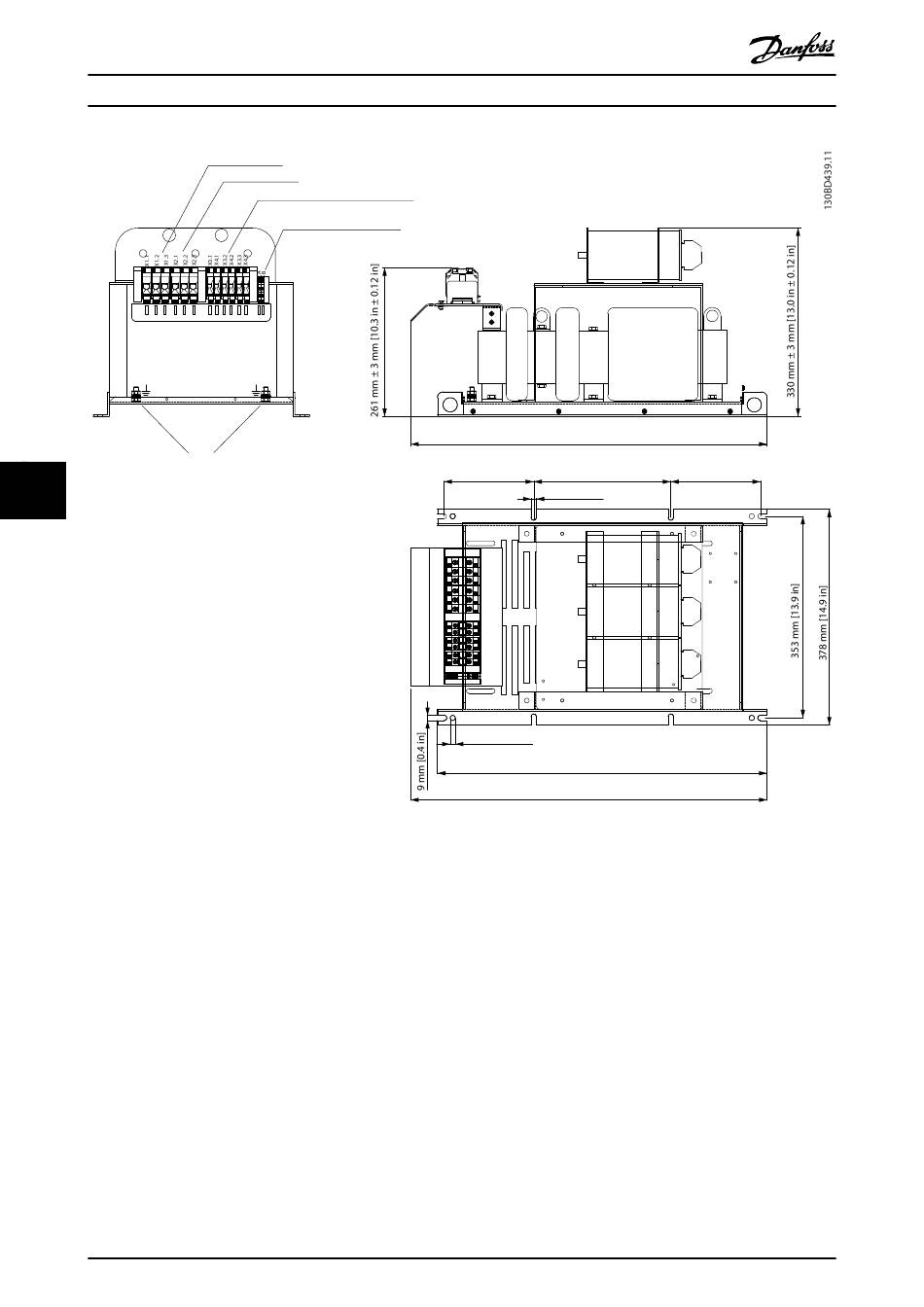

Illustration 7.123 IP00 X4
120
