Specifications
F1 F2
7 7

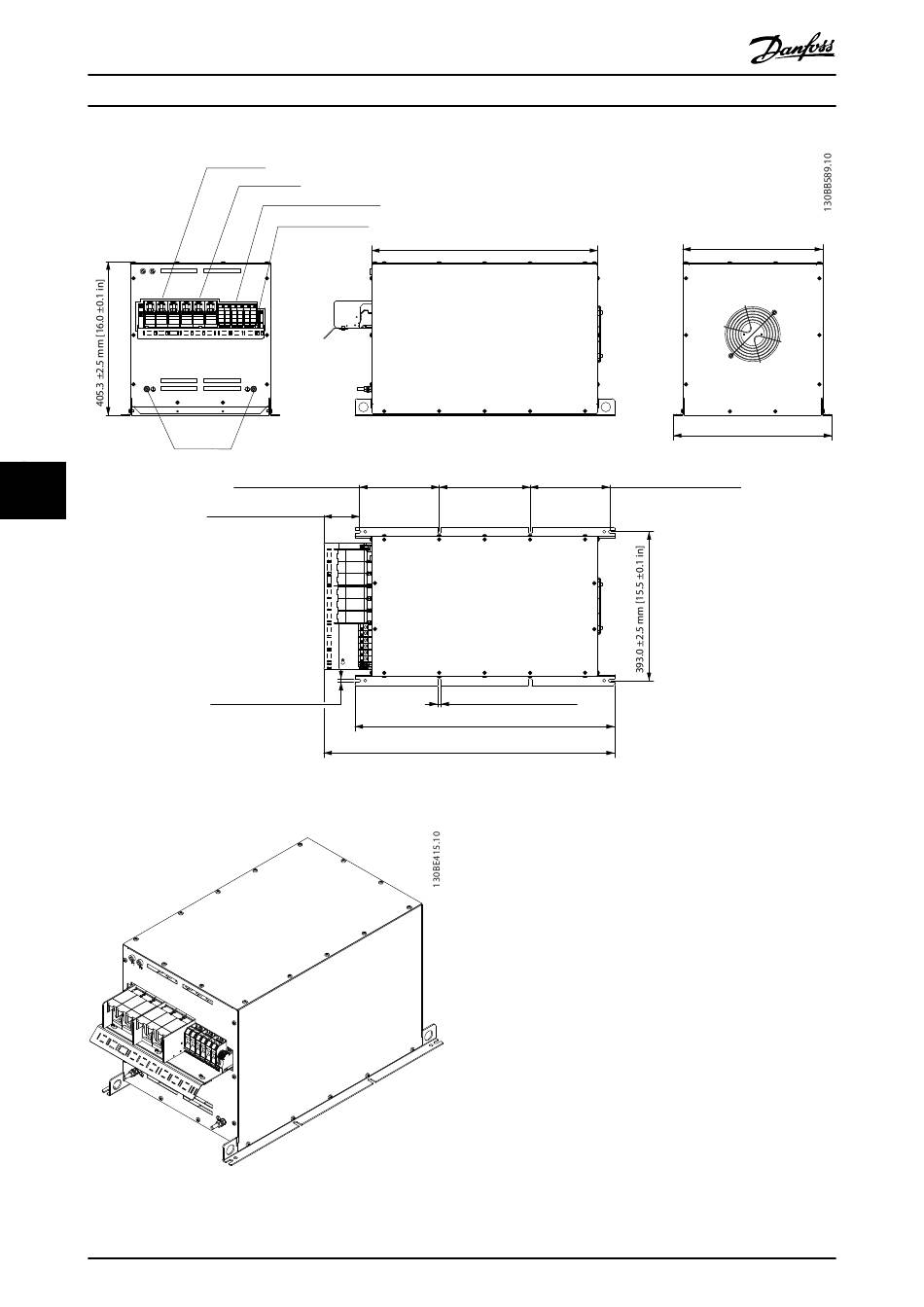

Illustration 7.37 IP20 X6 Internal Fan 1
Illustration 7.38 IP20 X6 Internal Fan 1, 3D View
76
VLT
2
X1 Mains 50 mm
2
X2 Drive 50 mm
X3/X4 Capacitor disconnect 16 mm
A/B Temperature 2.5 mm
PE M8
210.5 ±1 mm [81.3 ±0.04 in]
94 ±2.5 mm [3.7 ±0.1 in]
9 ±1 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 All rights reserved.
®
Advanced Harmonic Filter AHF 005/AHF 010
2
2
597.0 ±2.5 mm [23.5 ±0.1 in]
240.0 ±1 mm [9.4 ±0.04 in]
9 ±1 mm [0.4 ±0.04 in]
685.0 ±2.5 mm [27.0 ±0.1 in]
767.3 ±2.5 mm [30.2 ±0.1 in]
370.0 ±2.5 mm [14.6 ±0.1 in]
418.0 ±2.5 mm [16.5 ±0.1 in]
210.5 ±1 mm [8.3 ±0.04 in]
