Danfoss VLT AHF 005 Design Manual page 101

Specifications
205.6 ±2.5 mm [8.1 ±0.1 in]
9.0 ±1 mm [0.4 ±0.04 in]

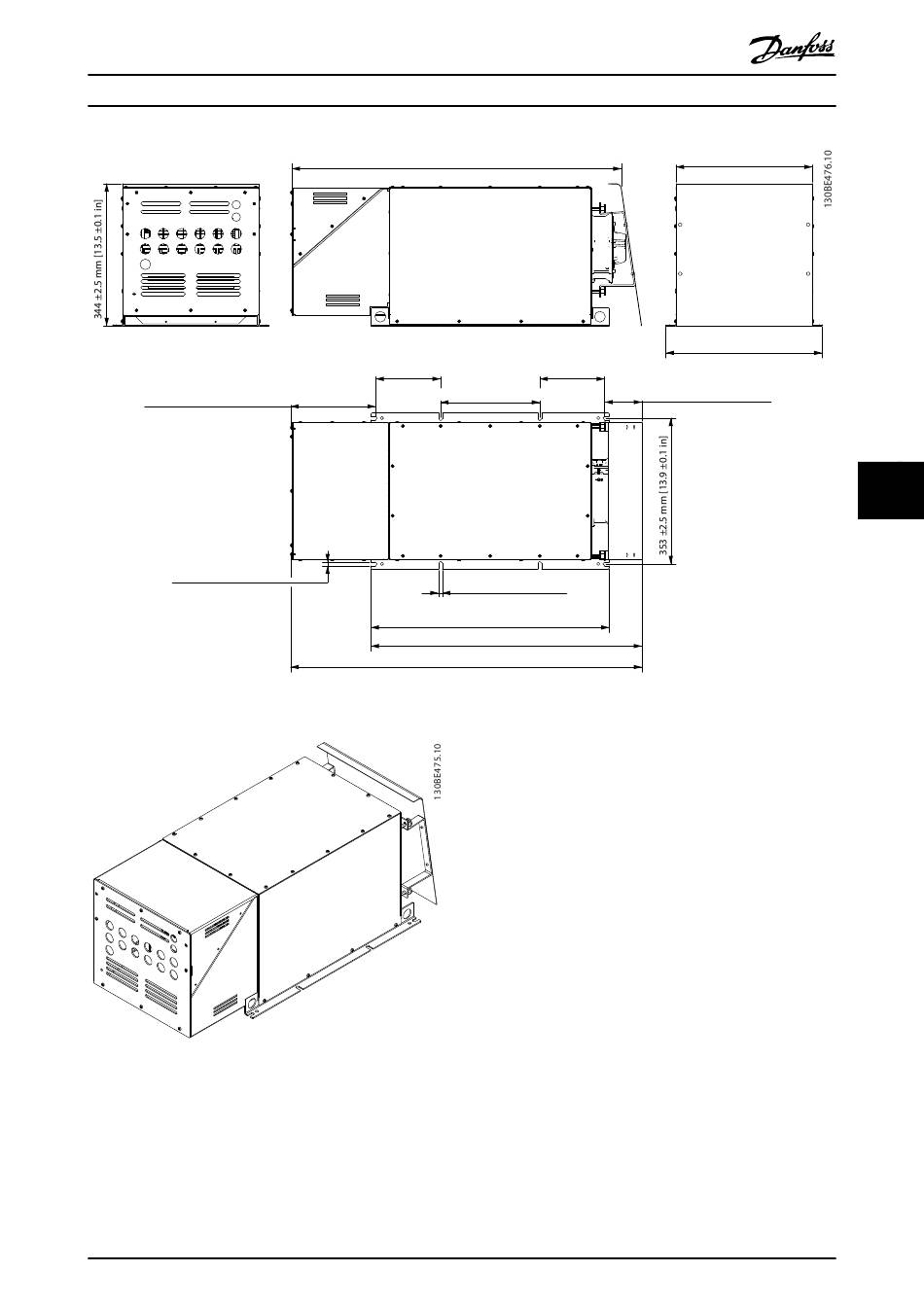

Illustration 7.83 IP21 X4 External Fan 2
Illustration 7.84 IP21 X4 External Fan 2, 3D View
MG80C502
Design Guide
797 ±2.5 mm [31.4 ±0.1 in]
157.0 ±1 mm [6.2 ±0.04 in] 157.0 ±1 mm [6.2 ±0.04 in]
240.0 ±1 mm [9.4 ±0.04 in]
9.0 ±1 mm [0.4 ±0.04 in]
577.0 ±2.5 mm [22.7 ±0.1 in]
655 ±2.5 mm [25.8 ±0.1 in]
849 ±2.5 mm [33.4 ±0.1 in]
Danfoss A/S © 10/2016 All rights reserved.
330.0 ±2.5 mm [13.0 ±0.1 in]
378.0 ±2.5 mm [14.9 ±0.1 in]
89.6 ±2.5 mm [3.5 ±0.1 in]
