Specifications
X1 Mains 50 mm
X2 Drive 50 mm
X3/X4 Capacitor disconnect 16 mm
F1
F2
PE M8
210.5 ±1 mm [8.3 ±0.04 in]
63.8 ±2.5 mm [2.5 ±0.1 in]
9.0 ±1 mm [0.4 ±0.04 in]

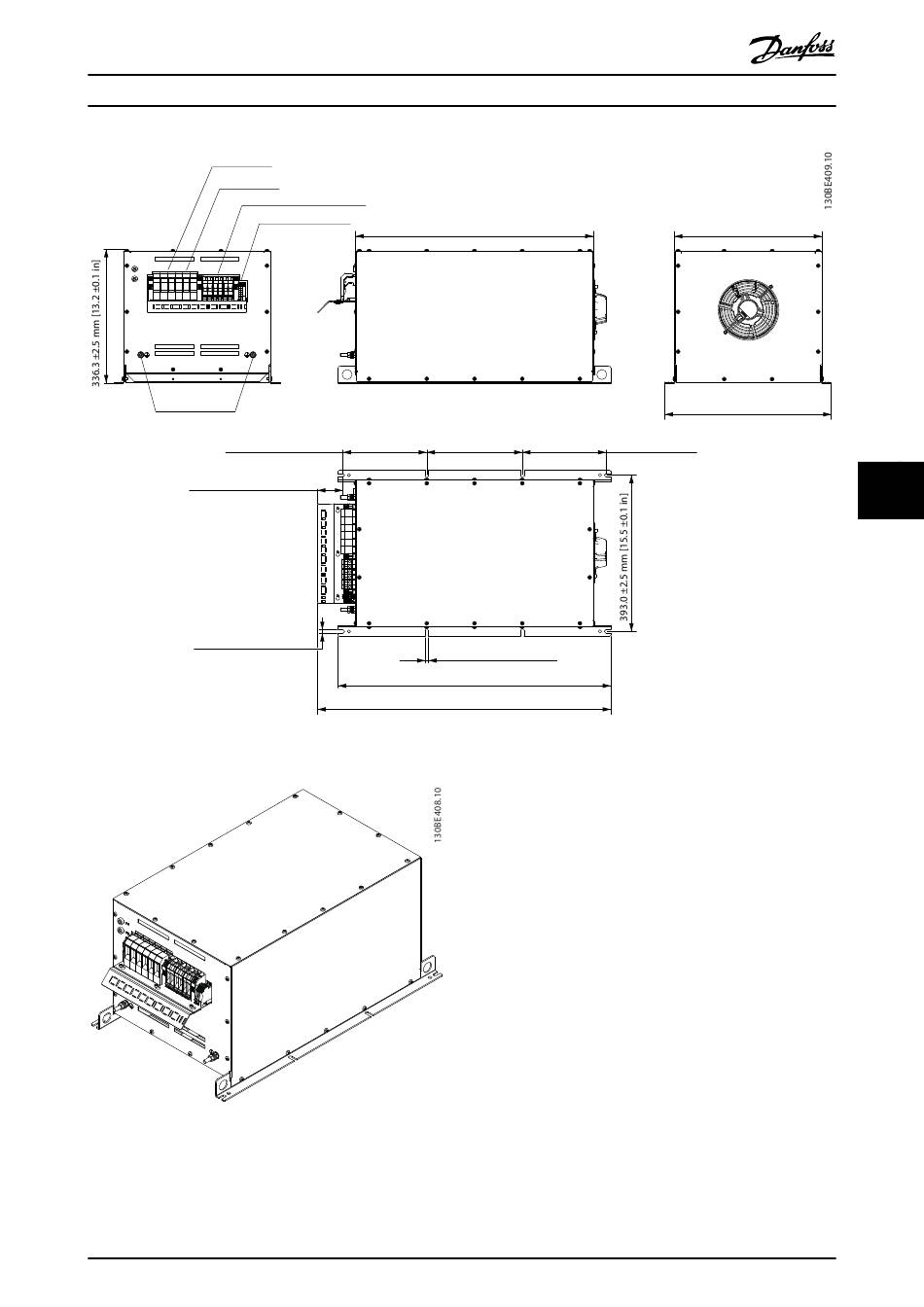

Illustration 7.31 IP20 X5 Internal Fan 2
Illustration 7.32 IP20 X5 Internal Fan 2, 3D View
MG80C502
Design Guide
2
2
2
2
A/B Temperature 2.5 mm
597.0 ±2.5 mm [23.5 ±0.1 in]
240.0 ±1 mm [9.4 ±0.04 in]
685.0 ±2.5 mm [27.0 ±0.1 in]
736.8 ±2.5 mm [29.0 ±0.1 in]
Danfoss A/S © 10/2016 All rights reserved.
210.5 ±1 mm [8.3 ±0.04 in]
9.0 ±1 mm [0.4 ±0.04 in]
370.0 ±2.5 mm [14.6 ±0.1 in]
418.0 ±2.5 mm [16.5 ±0.1 in]
73
7
7
