Specifications
205 ±1 mm [8.1 ±0.04 in]

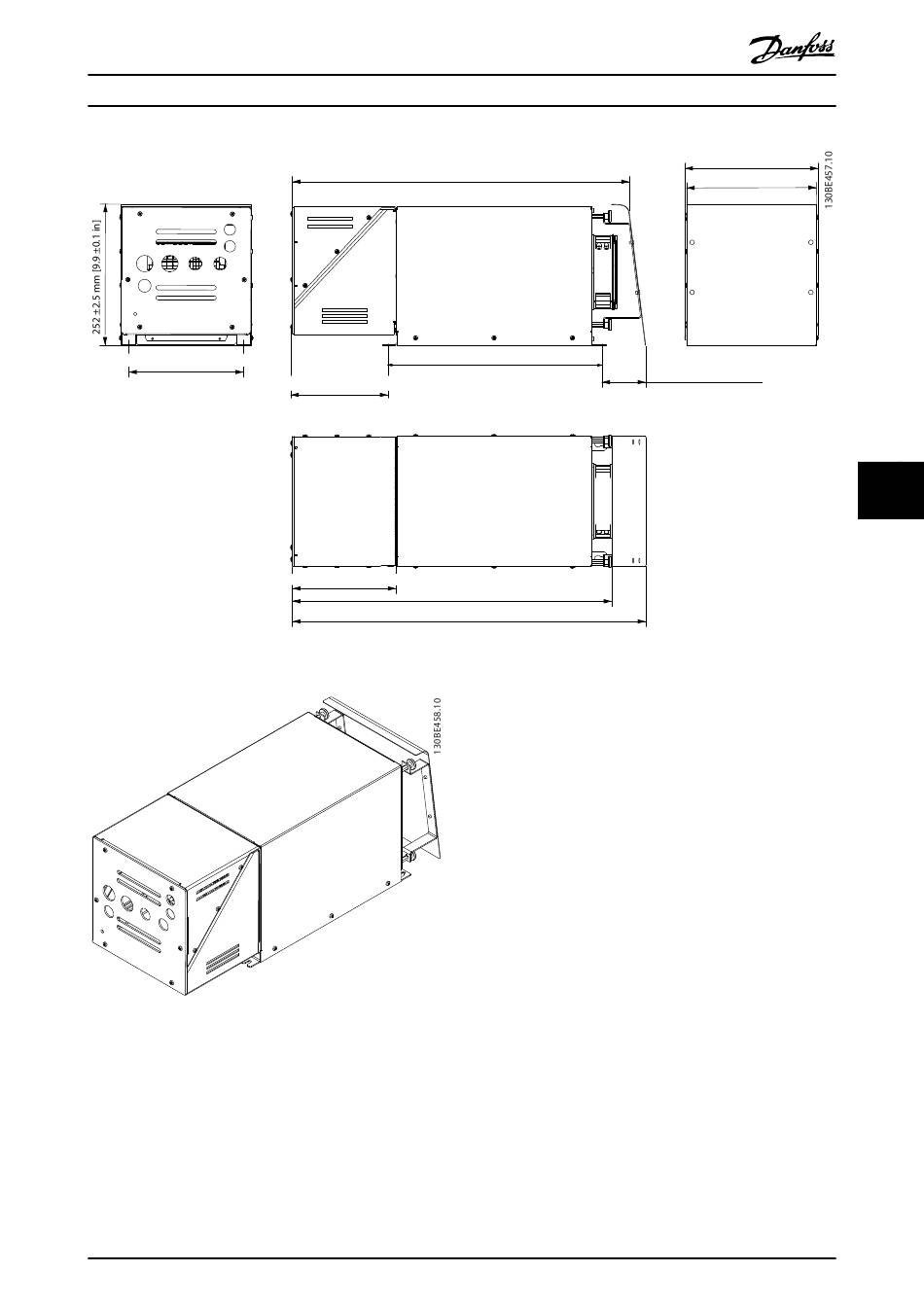

Illustration 7.67 IP21 X2 External Fan 1
Illustration 7.68 IP21 X2 External Fan 1, 3D View
MG80C502
Design Guide
602 ±2.5 mm [23.7 ±0.1 in]
382 ±2.5 mm [15.0 ±0.1 in]
174 ±2.5 mm [6.8 ±0.1 in]
185 ±2.5 mm [7.3 ±0.1 in]
570 ±2.5 mm [22.4 ±0.1 in]
631 ±2.5 mm [24.8 ±0.1 in]
Danfoss A/S © 10/2016 All rights reserved.
238 ±2 mm [9.4 ±0.08in]
232 ±2 mm [9.1 ±0.08 in]
78 ±2.5 mm [3.1 ±0.1 in]
7
7
91
