Advanced Harmonic Filter AHF 005/AHF 010
2
X1 Mains 70 mm
2
X2 Drive 70 mm
2
X3/X4 Capacitor disconnect 35 mm
2
A/B Temperature 2.5 mm
AB
768 mm [30.2 in]
PE M8
7
7
240 mm [9.4 in]
210.5 mm [8.3 in]
210.5 mm [8.3 in]
9 mm [0.4 in]
9 mm [0.4 in]
685 mm [27.0 in]
768 mm ± 2.5 mm [30.2 in ± 0.10 in]

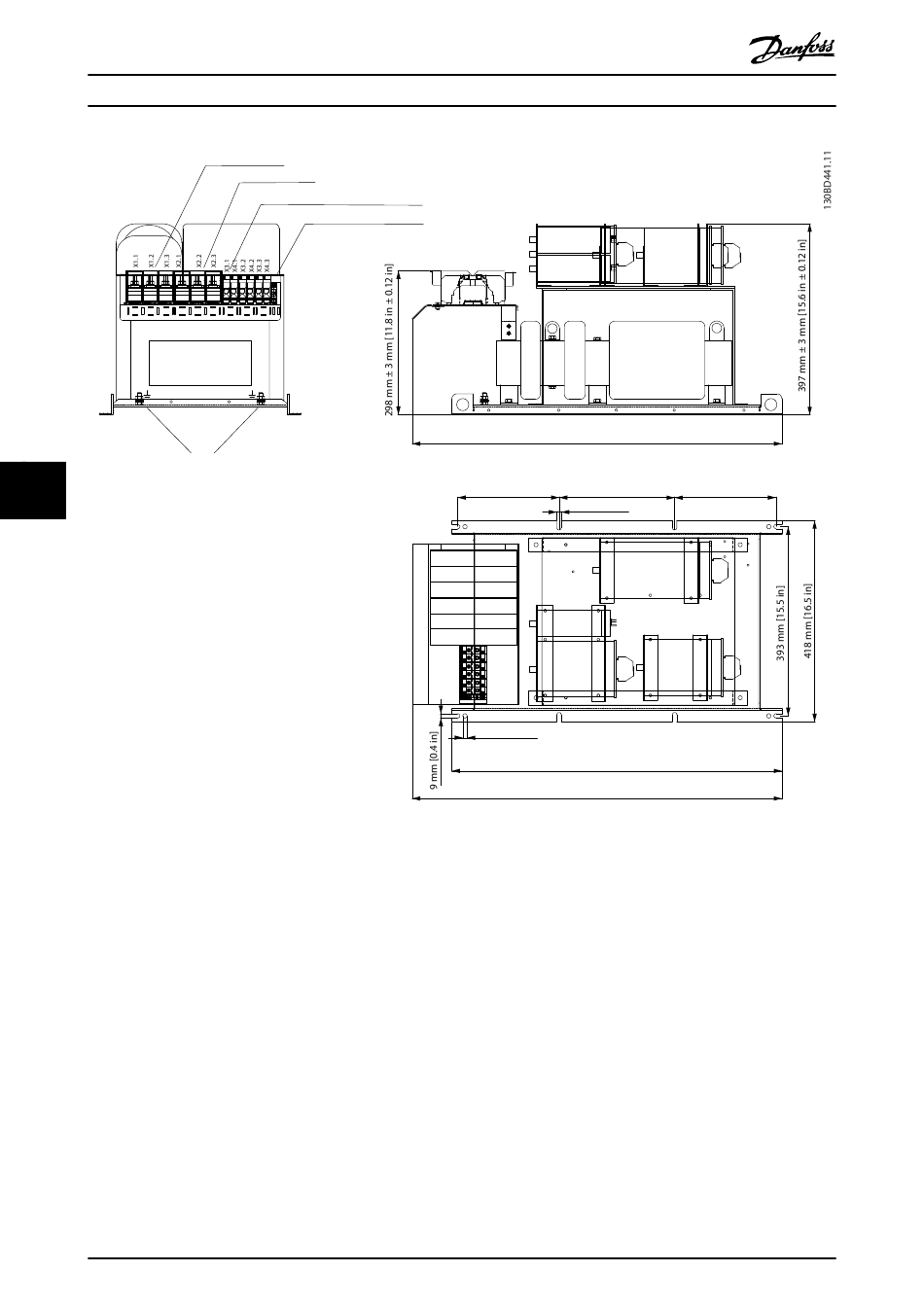

Illustration 7.125 IP00 X6
122
Danfoss A/S © 10/2016 All rights reserved.
MG80C502
