Specifications
VLT
Advanced Harmonic Filter AHF 005/AHF 010
2
X1 Mains 10 mm
2
X2 Drive 10 mm
2
X3/X4 Capacitor disconnect 2.5 mm
2
A/B Temperature 2.5 mm
436 mm [17.2 in]
PE M6
382 mm [15.0 in]
7
7
399 mm [15.7 in]
436 mm ± 3 mm [17.2 in ± 0.12 in]

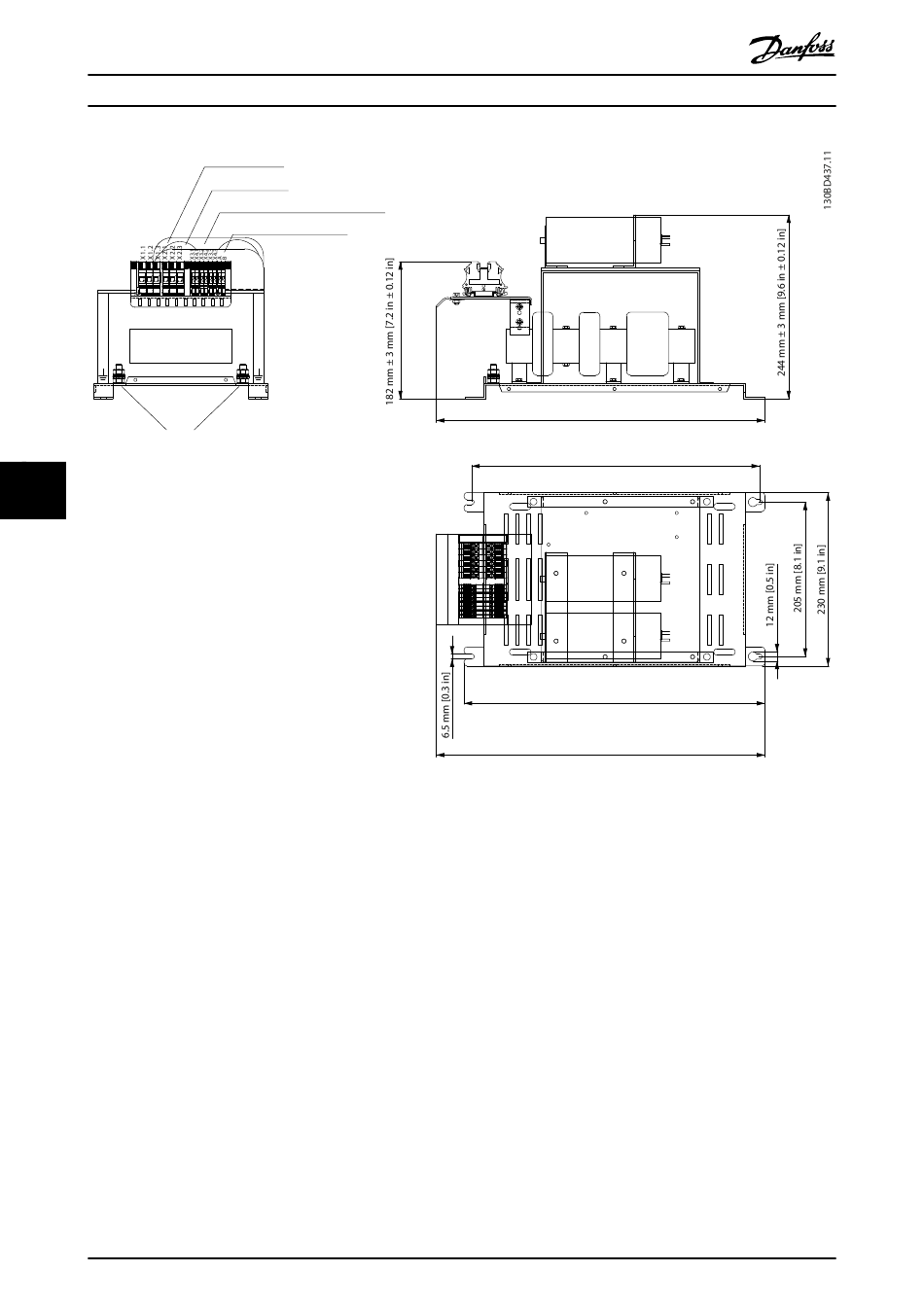

Illustration 7.121 IP00 X2
118
Danfoss A/S © 10/2016 All rights reserved.
MG80C502
