Danfoss VLT AHF 005 Design Manual page 94

Specifications
7 7

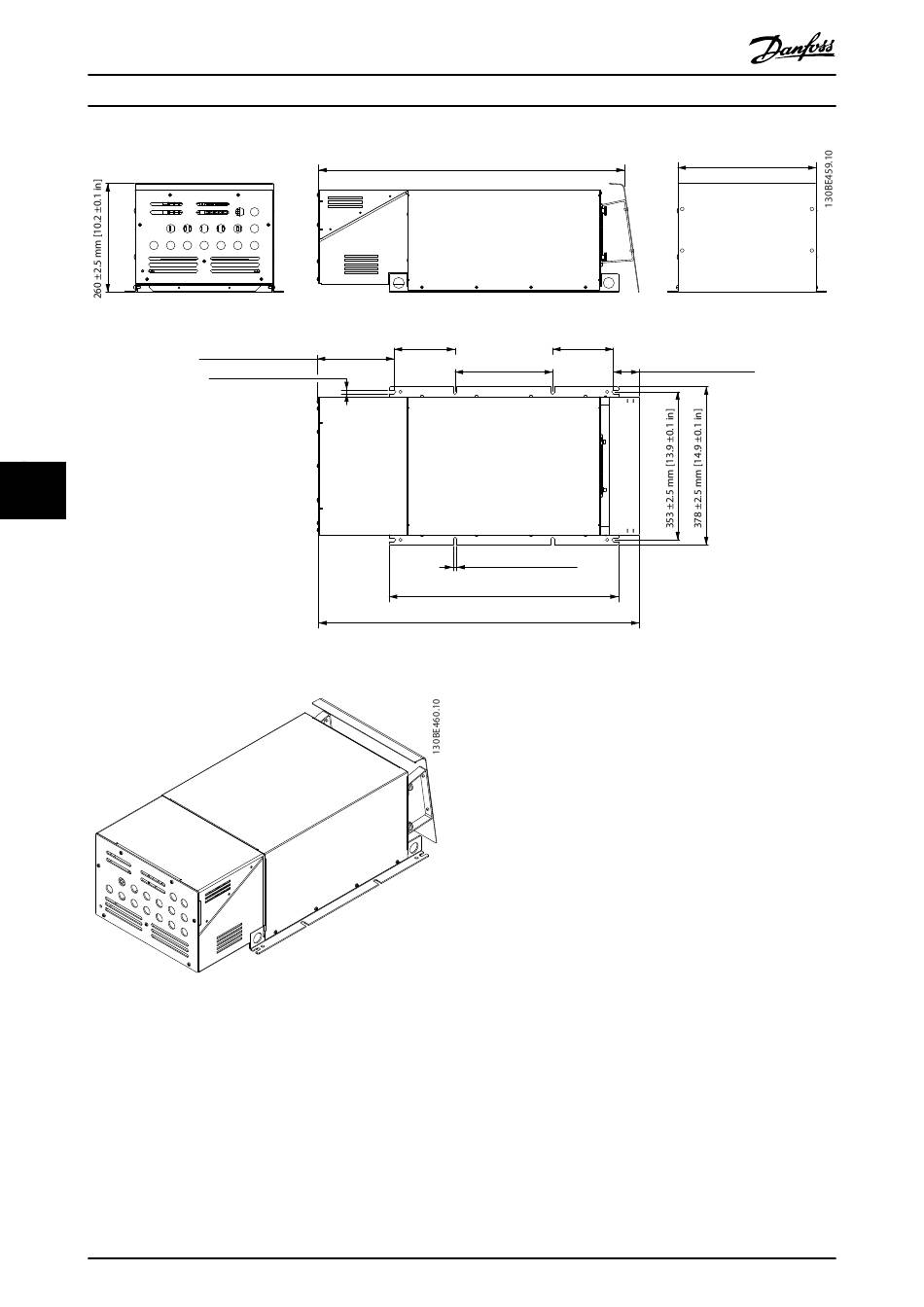

Illustration 7.69 IP21 X3 Internal Fan 1
Illustration 7.70 IP21 X3 Internal Fan 1, 3D View
92
VLT
145 ±1 mm [5.7 ±0.04 in]
184 ±2.5 mm [7.2 ±0.1 in]
9 ±1 mm [0.4 ±0.04 in]
Danfoss A/S © 10/2016 All rights reserved.
®
Advanced Harmonic Filter AHF 005/AHF 010
730 ±2.5 mm [28.7 ±0.1 in]
145 ±1 mm [5.7 ±0.04 in]
233 ±1 mm [9.2 ±0.04 in]
9 ±1 mm [0.4 ±0.04 in]
547 ±2.5 mm [21.5 ±0.1 in]
765 ±2.5 mm [30.1 ±0.1 in]
330 ±2.5 mm [13.0 ±0.1 in]
61 ±2.5 mm [2.4 ±0.1 in]
MG80C502
