Specifications
F1
F2
7 7

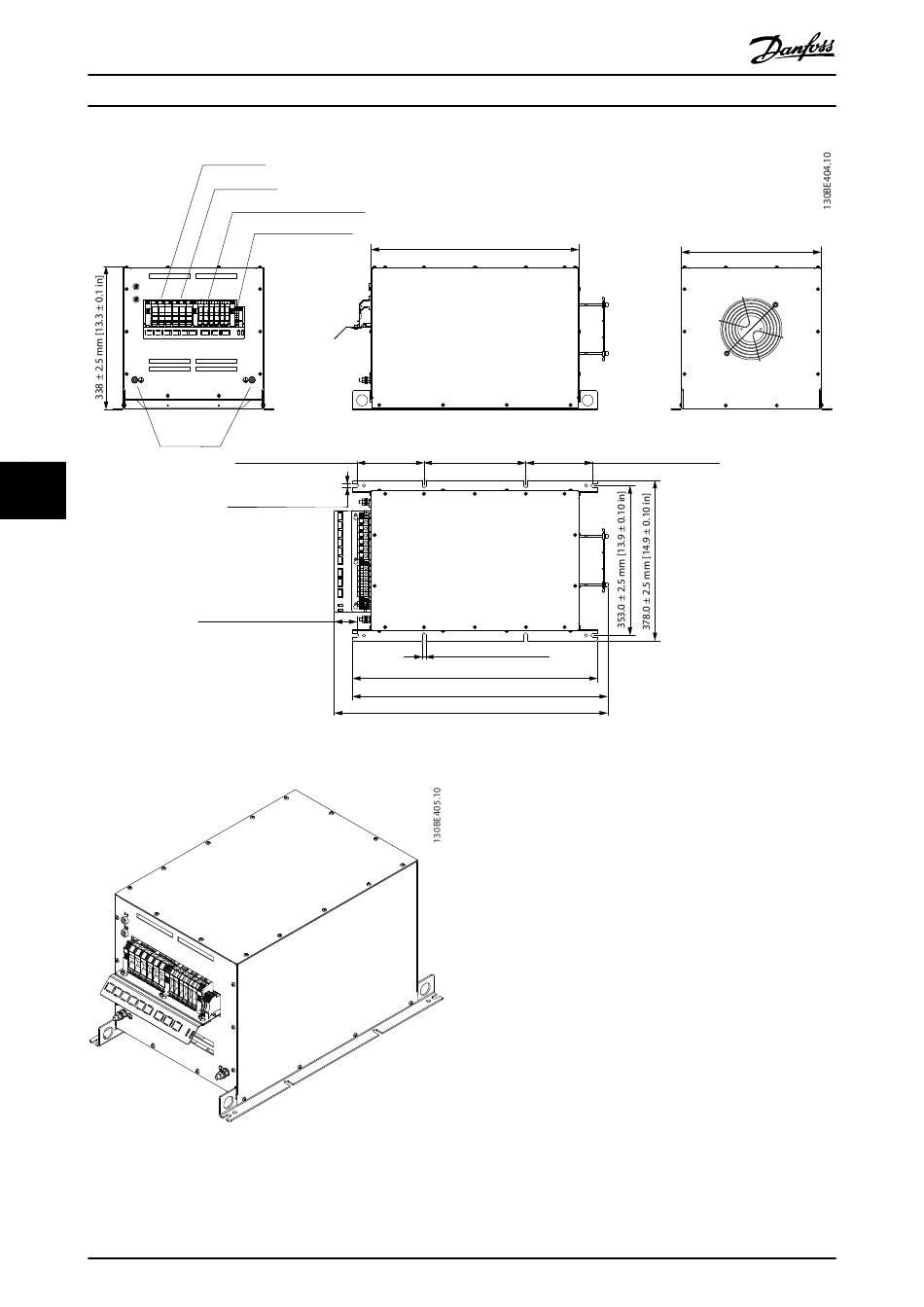

Illustration 7.25 IP20 X4 External Fan 1
Illustration 7.26 IP20 X4 External Fan 1, 3D View
70
VLT
X1 Mains 35mm
2
X2 Drive 35mm 2
X3/X4 Capacitor disconnect 16mm
A/B Temperature 2.5mm
PE M8
157.0 ± 1 mm [6.2 ± 0.04 in]
9.0 ± 1 mm [0.4 ± 0.04 in]
54.3 ± 2.5 mm [2.1 ± 0.10 in]
Danfoss A/S © 10/2016 All rights reserved.
®
Advanced Harmonic Filter AHF 005/AHF 010
2
2
489 ± 2.5 mm [19.3 ± 0.1 in]
240.0 ± 1 mm [9.4 ± 0.04 in]
9.0 ± 1 mm [0.4 ± 0.04 in]
577.0 ± 2.5 mm [22.7 ± 0.10 in]
601.0 ± 2.5 mm [23.7 ± 0.10 in]
643.8 ± 2.5 mm [25.3 ± 0.10 in]
330 ± 2.5 mm [13.0 ± 0.1 in]
157.0 ± 1 mm [6.2 ± 0.04 in]
MG80C502
