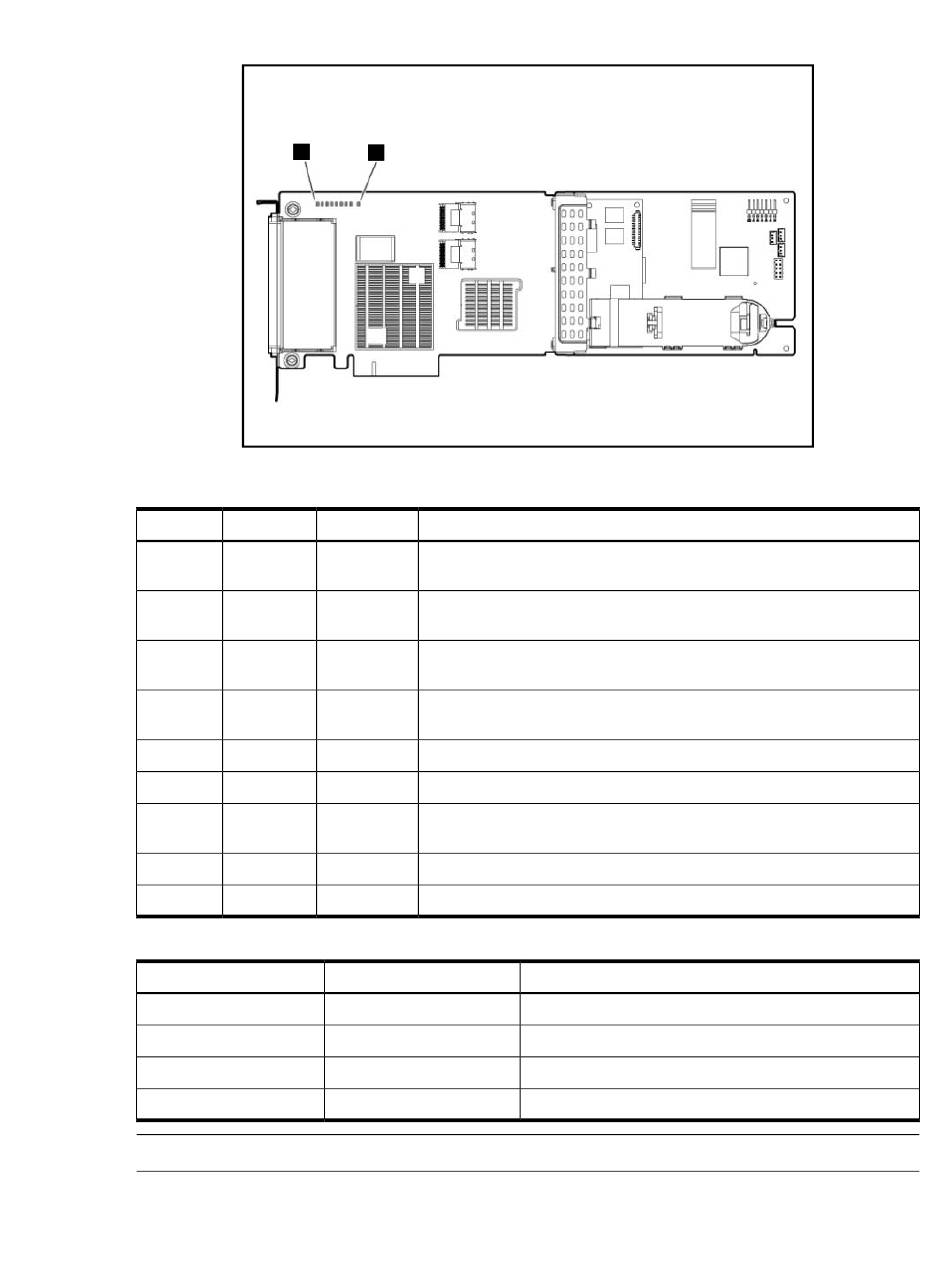

Figure 13 Smart Array P812 controller board runtime LEDs
Table 9 Interpreting Smart Array P812 runtime LEDs
LED ID Color
1 Green
2 Green
3 Green
4 Green
5 Green
6 Green
7 Amber
8 Amber
9 Green
Table 10 Determining the Smart Array P812 controller CPU activity level
LED 2 (Gas Pedal) Status
Off
Flashing
On Steady
On steady
NOTE: During server power on, each runtime LED illuminates randomly until POST completes.

Battery pack LEDs

The battery pack has four runtime LEDs that indicate battery readiness and error conditions.
1
9
Name LED name and interpretation
CR76 Idle Task LED. This LED, with item 7 (CR504), indicates the amount of
controller CPU activity. See
CR75 Gas Pedal LED. This LED, with item 10 (CR503), indicates the amount of
controller CPU activity. See
CR74 Controller Heartbeat LED. This LED flashes every two seconds to indicate
controller health.
CR73 Pending Command LED. Indicates that the controller is working on a
command from the host driver.
CR72 Activity LED for SAS port 1.
CR71 Activity LED for SAS port 2.
CR78 Disk Failure LED. A physical disk connected to the controller has failed. See
the Fault LED on each disk to determine the failed disk.
CR77 Diagnostics Error LED. One of the server diagnostics has detected an error.
CR82 MIPS Ready LED. The embedded SAS expander is active.
LED 1 (Idle Task) Status
Flashing
Off
Off
On Steady
Table 10.
Table 10.
Controller CPU activity level
0 to 25%
25 to 50%
50% to 75%
75% to 100%
Battery pack LEDs 17
