QuickSpecs
Overview

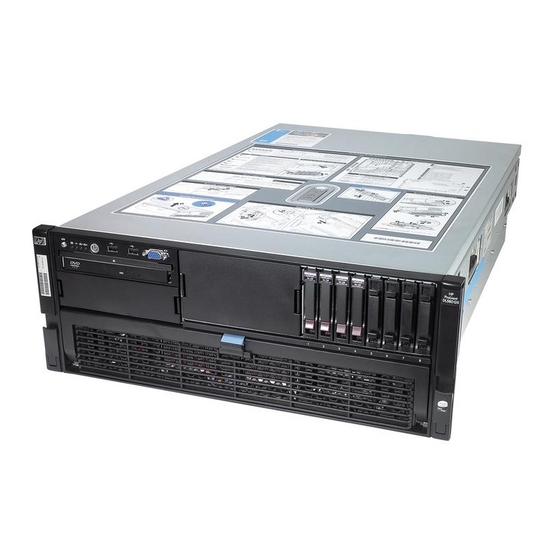

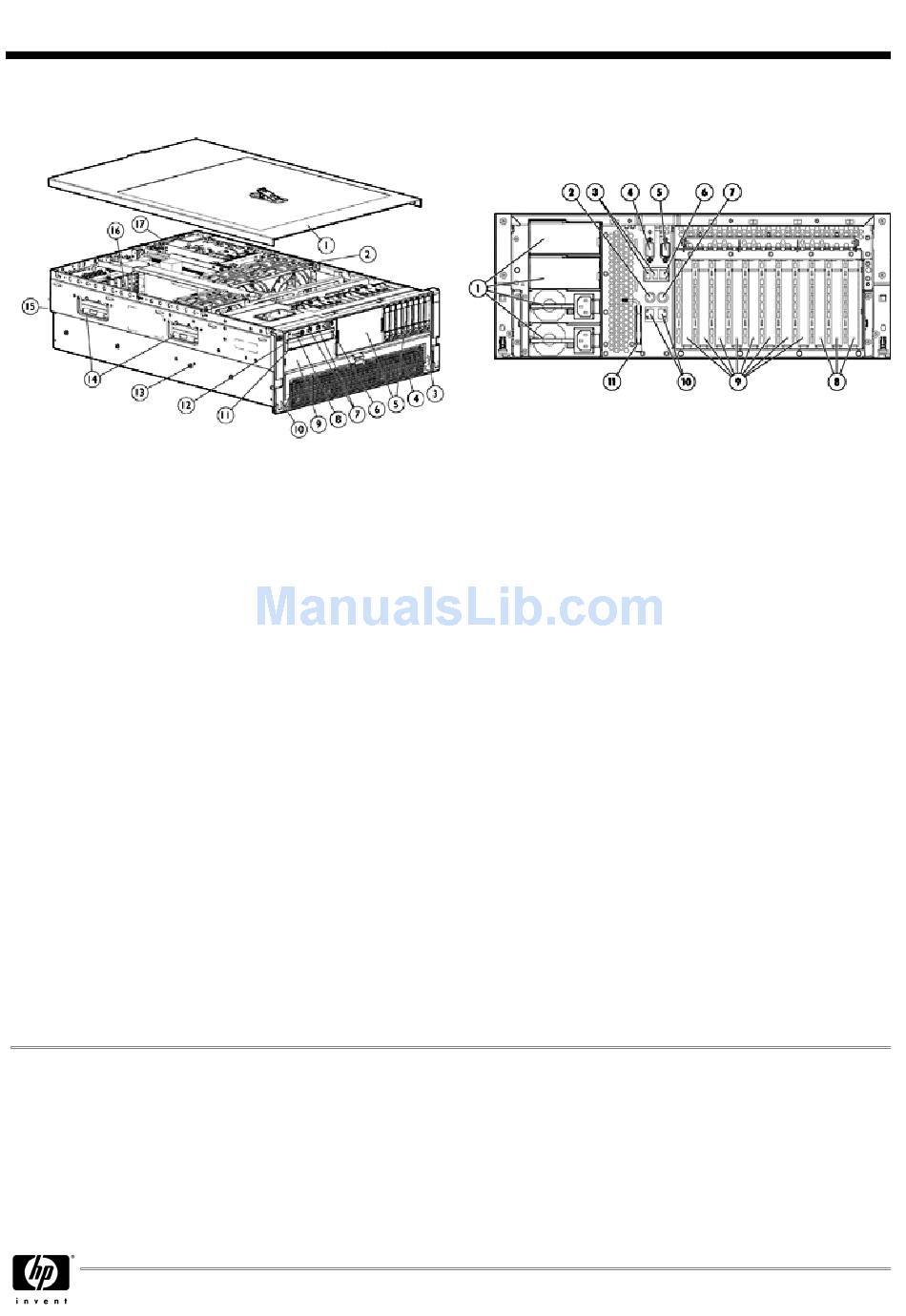

Front View:
1.
Quick Removal Access Panel
2.
Six Hot Plug Redundant Fans Standard on all models
3.
Front accessible Processor and memory drawer
4.
Support for up to four Quad-Core Intel® Xeon®
Processors
5.
Support for up to 16 Small Form-Factor (SFF) SAS or
Serial ATA (SATA) drives
6.
One front video port
7.
Two front accessible USB 2.0 ports
8.
Front Panel LED Display and Power Button
9.
Half-height tape bay
10.
Quick release levers for fast server access
11.
Slimline Drive (DVD Drive standard)
12.
Slide-out Systems Insight Display
13.
Universal Tool-less "Snap In" Sliding Rail Solution
14.
Server Lifting Handles
15.
4U (7" Height) Rack Form Factor
16.
Up to eleven Available PCI Express/PCI-X Internal
Expansion Slots. Eight Standard: (4) full length PCI-E
x8, (1) full length PCI-E x4 and (3) half length PCI-Ex4
slots. Optional Expansion for up to (3) PCI-X or (3) PCI-
E x8
17.
Hot Plug Redundant Power Supplies (two standard with
2P Models, requires four for redundancy)
At A Glance
The ProLiant DL580 G5 server is an enterprise class, 4 socket server designed for maximum scalability and high availability.
Its innovative chassis offers unsurpassed flexibility and serviceability in a versatile, rack-optimized form factor. Based upon
the latest industry standard processing, memory, I/O and networking technologies, the ProLiant DL580 G5 provides the
highest levels of performance demanded by today's compute intensive applications. Unparalleled high availability features,
including hot-plug and redundant components, guarantee maximum uptime. Integrated Lights-Out 2 (iLO2) technology
allows remote administration from a standard web-browser without ever having to visit the server. Within the 4U dense form
factor, it's highly expandable architecture provides maximum application deployment flexibility with the ability to add PCI-
DA - 12770 Worldwide QuickSpecs — Version 18 — 7.18.2008
HP ProLiant DL580 Generation 5
Rear View:
1.
Power supplies (2 ship standard in 2P Models; 4 ship
standard in 4P Models)
2.
Keyboard port
3.
Two USB ports
4.
Video port
5.
Serial port
6.
Integrated Lights-Out 2 port
7.
Mouse port
8.
PCI-Express or PCI-X option (slots 1-3)
9.
PCI-Express slots (slots 4-11)
10.
Two Multifunction Gigabit NICs
11.
Service tool
Page 1
