Using ORCA

HP Smart Array controllers include ORCA, a menu-driven, ROM-based offline configuration utility.
You can use ORCA to create, view, and delete logical drives before loading an operating system.
To access ORCA, follow the procedures in the installation guide for your controller. Installation
guides are available on the HP website at:
http://www.hp.com/go/hpux-iocards-docs
Click the link for your HP-UX version. Installation guides are listed alphabetically in the "Setup and
install — general" section.
IMPORTANT:
Array controllers. This section provides a generic procedure using a typical Smart Array controller
as an example. Always follow the on-screen prompts when using ORCA.

Creating a logical drive

To create a logical drive using ORCA:

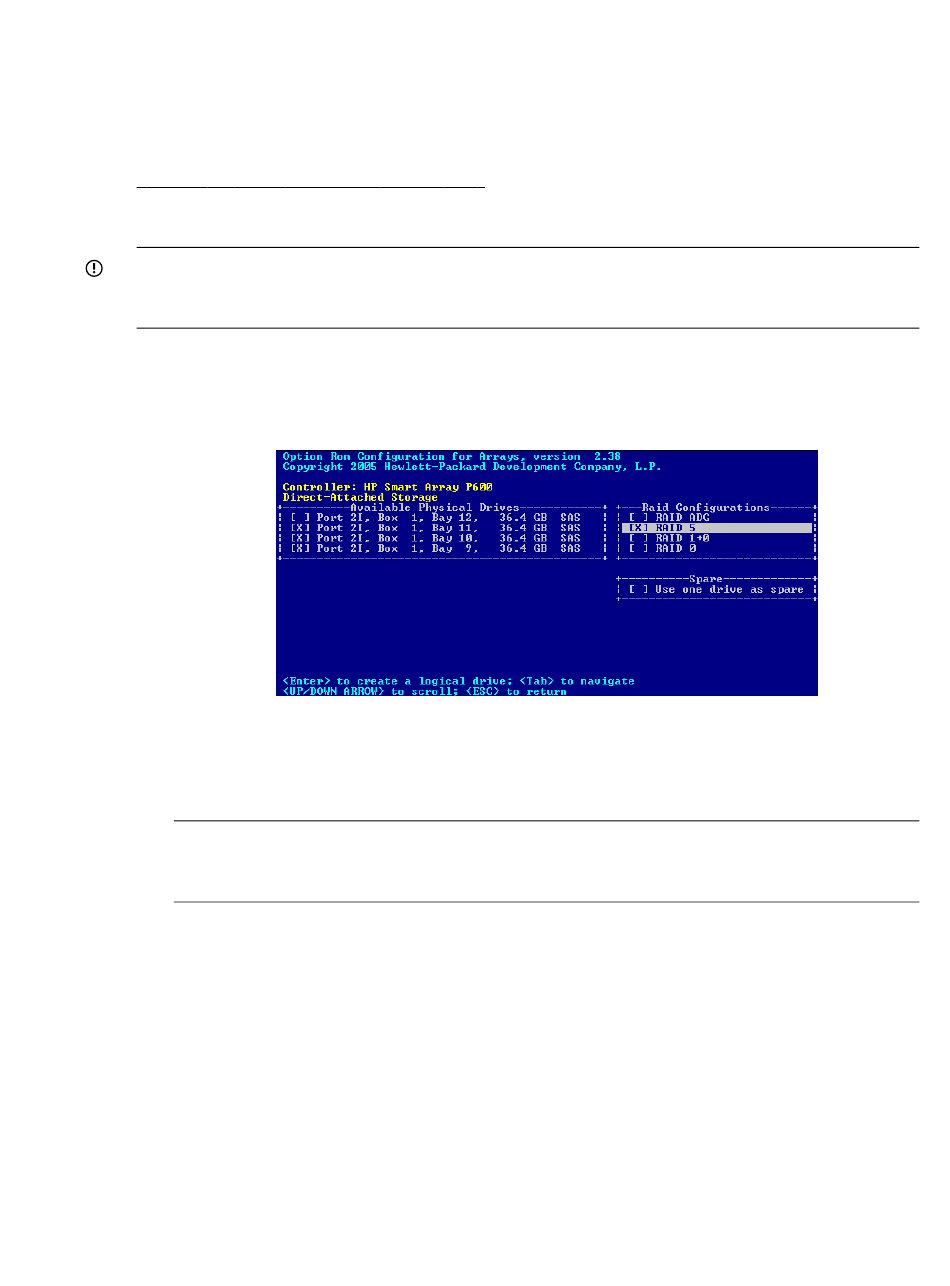

1. From the Main Menu, select "Create Logical Drive." A screen similar to the following appears:
2. Select the physical disks to be included in the logical drive in the Available Physical Drives
section.
3. To select the Raid Configurations section and select the RAID type for the logical drive, press
Tab.
NOTE:
arrays. To configure shared spare drives, use the saconfig command. See
disk drive" (page
For a summary of the important features of the RAID configurations that are supported by the
Smart Array Controllers, see
For information to help you determine which option is best for your computing environment,
see "Choosing a RAID method" (page
4. To select the Spare section and assign spare disks, as needed, press Tab.
5. To create the logical drive, press Enter. A summary of your choices appears:
ORCA appearance, functionality, and keystrokes are not the same for all Smart
You cannot use ORCA to configure a single spare drive to be shared among several
50).
"Fault management in supported RAID configurations" (page
21).
"Adding a spare
20).
