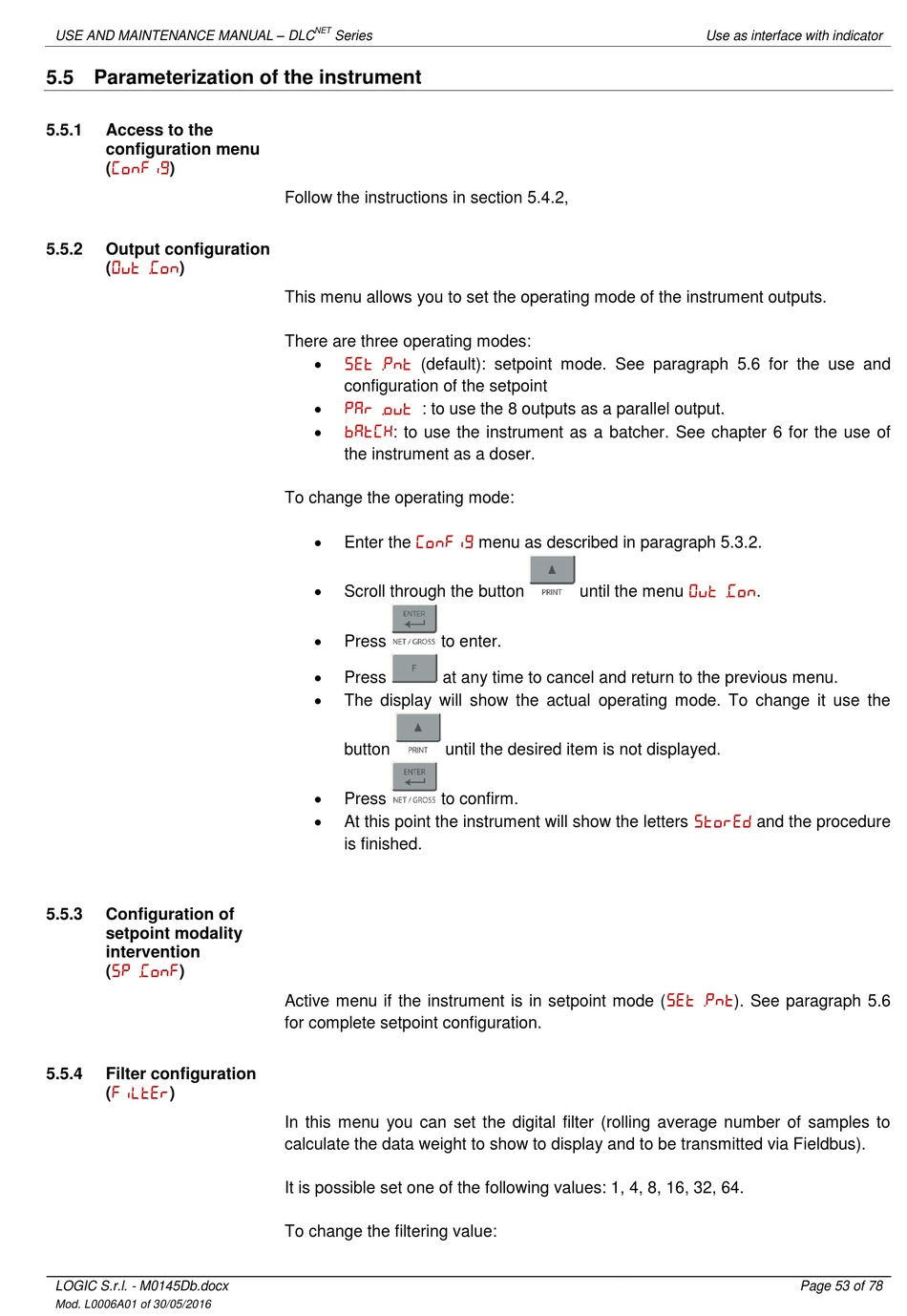

USE AND MAINTENANCE MANUAL – DLC
5.5 Parameterization of the instrument
5.5.1
Access to the
configuration menu
(
)
5.5.2
Output configuration
(
)
5.5.3
Configuration of
setpoint modality
intervention
(
)
5.5.4
Filter configuration
(
)
LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
NET
Series
Follow the instructions in section 5.4.2,
This menu allows you to set the operating mode of the instrument outputs.
There are three operating modes:
(default): setpoint mode. See paragraph 5.6 for the use and
configuration of the setpoint
: to use the 8 outputs as a parallel output.
: to use the instrument as a batcher. See chapter 6 for the use of
the instrument as a doser.
To change the operating mode:
Enter the
Scroll through the button
Press
to enter.
Press
at any time to cancel and return to the previous menu.
The display will show the actual operating mode. To change it use the
button
until the desired item is not displayed.
Press
to confirm.
At this point the instrument will show the letters
is finished.
Active menu if the instrument is in setpoint mode (
for complete setpoint configuration.
In this menu you can set the digital filter (rolling average number of samples to
calculate the data weight to show to display and to be transmitted via Fieldbus).
It is possible set one of the following values: 1, 4, 8, 16, 32, 64.
To change the filtering value:
menu as described in paragraph 5.3.2.
until the menu
Use as interface with indicator
.
and the procedure
). See paragraph 5.6
Page 53 of 78
