USE AND MAINTENANCE MANUAL – DLC
3.5.2 Load cells connection
in ATEX Zone 1
(Zener barrier)

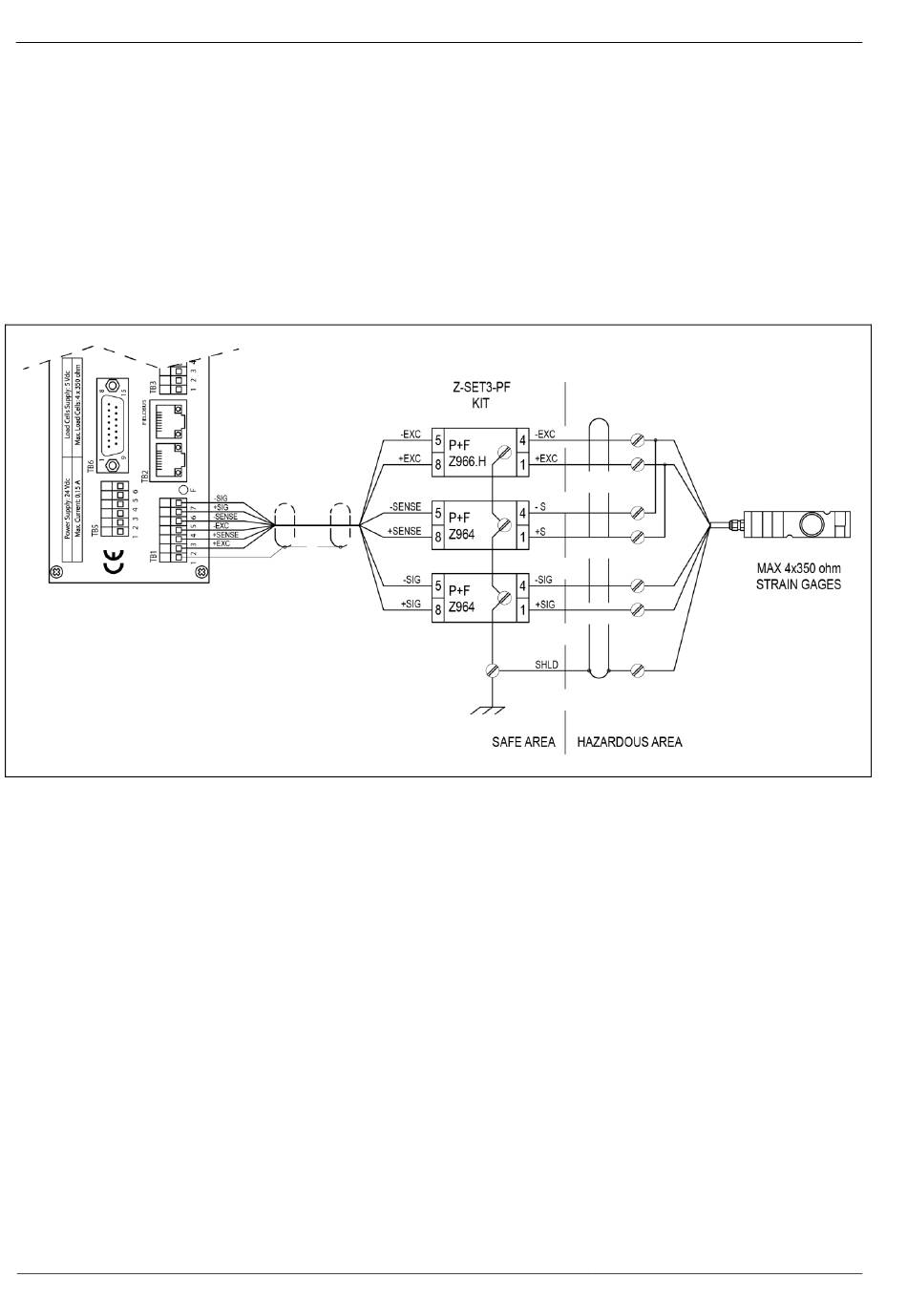

Figure 13. Load cells connection 6 wires with Zener barrier Z-SET3-PF

3.5.3 Load cells connection
in ATEX Zone 1
(active barrier)
LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
NET
Series
In case where the weighing system is installed in area with potentially explosive
atmosphere (ATEX Zone 1), it is necessary to connect the load cell through a
barrier.
In case of use of a passive barrier, below is an example of connection with the
Zener barrier mod. Z-SET3-PF and cable CAB-TS6 supply by Logic. The color
code of the CAB-TS6 cable remains to Table 4.
In case of use of an active barrier, below is an example of connection with the
active barrier mod. D1063S and cable CAB-TS6 supply by Logic. The color code
of the CAB-TS6 cable remains to Table 4.
Installation
Page 22 of 78
