3.5 Load cells connection
3.5.1 Load cells connection
in safe area
Table 4. Load cells connection
Terminal
TB1-1
TB1-2
TB1-3
TB1-4
TB1-5
TB1-6
TB1-7

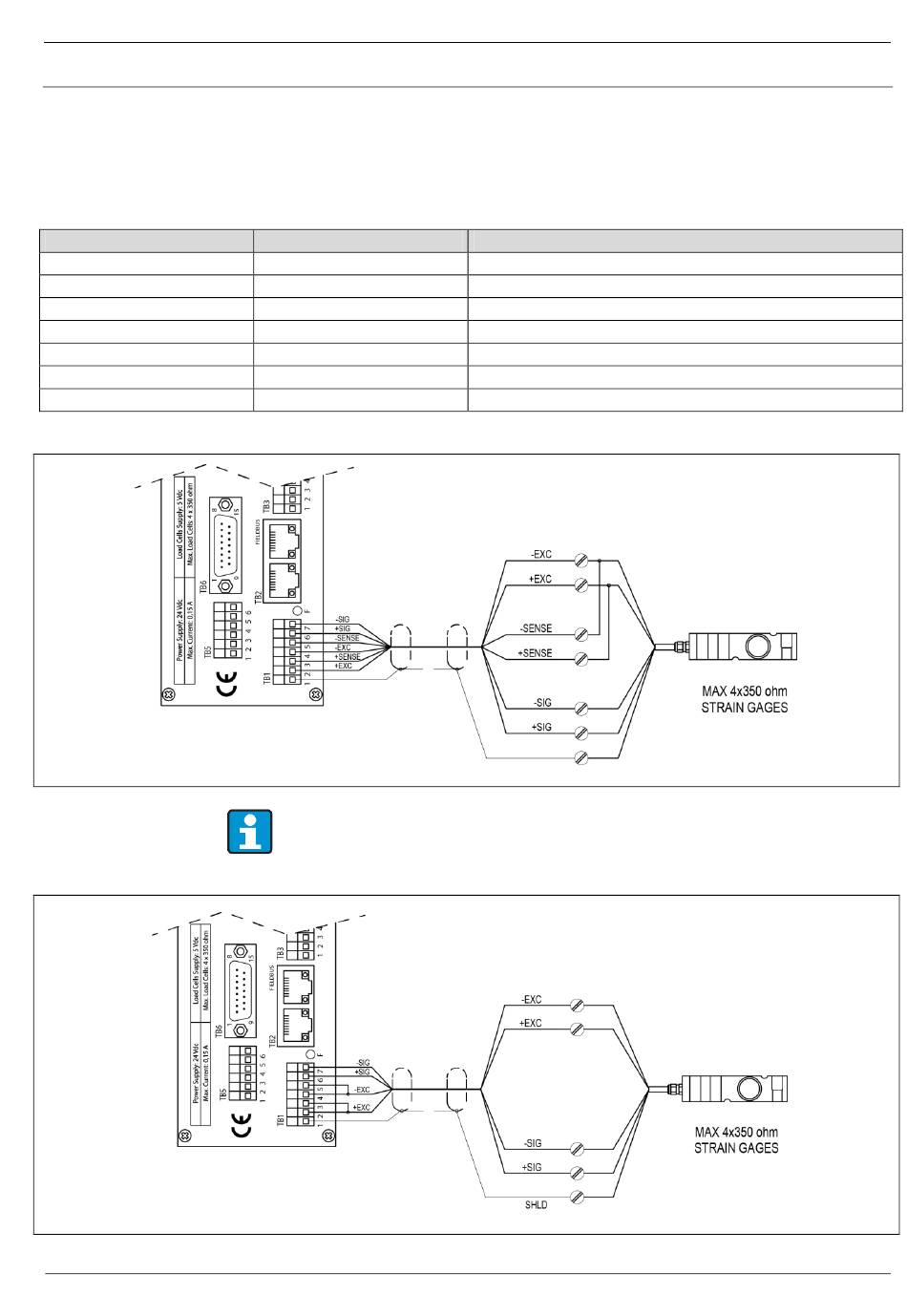

Figure 11. Load cells connection 6 wires

Figure 12. Load cells connection 4 wires

LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
NET
Series
Make connections to TB1 connector according to the following table:
Color code CAB-TS6
GND / Shld
Red
Green
Blue
Grey
White
Yellow
For connections with length less than 8 meters it is possible use the
four-wire connection shown below.
Connection
cable shield
+ excitation
+ sense
- excitation
- sense
+ signal
- signal
