USE AND MAINTENANCE MANUAL – DLC
3.10.2 Connection for
parallel interface type
PNP
Table 19. Connection for parallel interface type PNP
NET
Pin on DLC
TB6-1
TB6-2
TB6-10
TB6-3
TB6-11
TB6-4
TB6-12
TB6-5
TB6-13
TB6-15

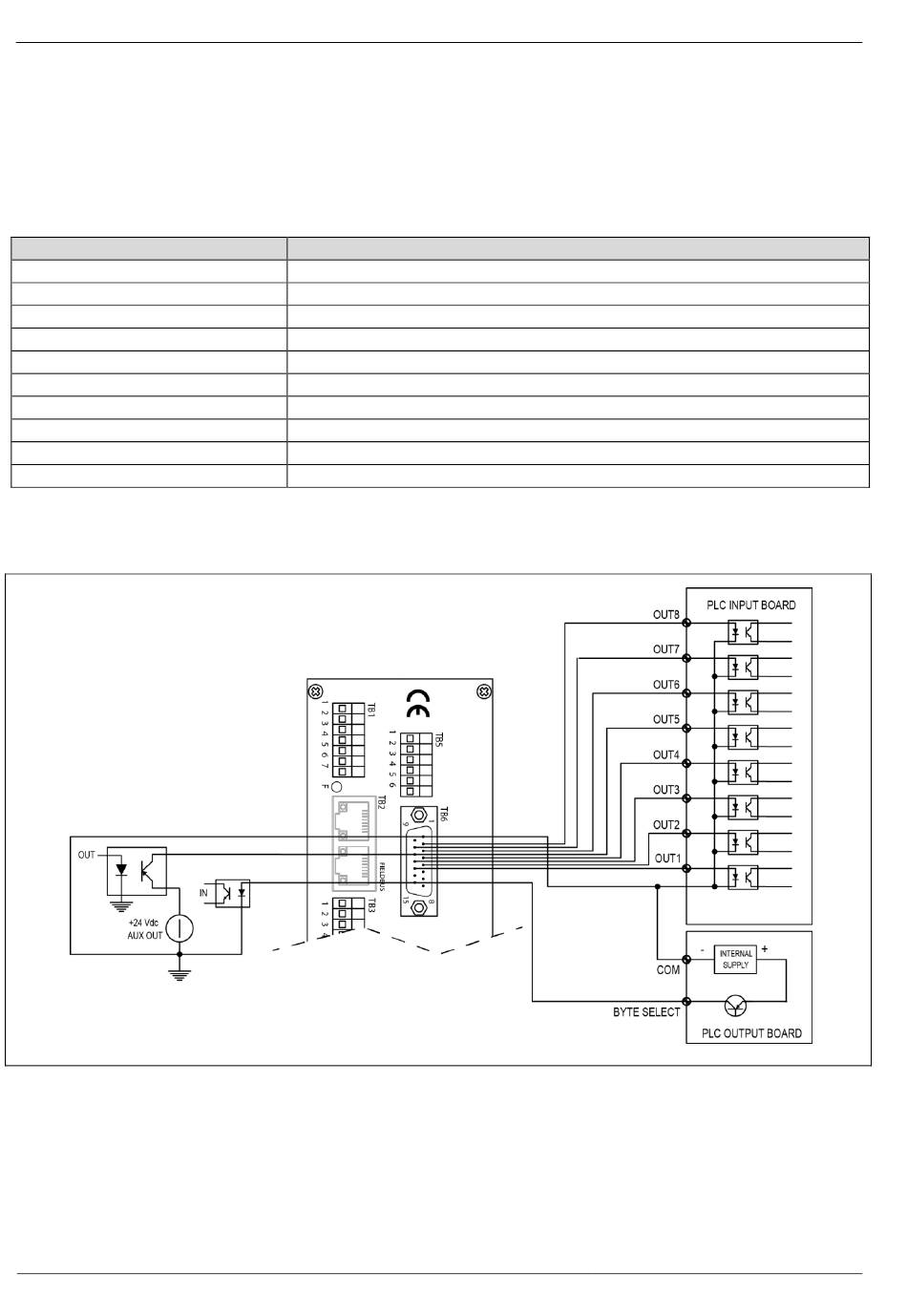

Figure 27. Connection for parallel interface type PNP

3.10.3 Connection for
parallel interface type
NPN
LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
NET
Series
The connection of the outputs in PNP mode is described in the following table and
figure. Expansion board –EB is needed for this purpose.
Description
0 Vdc
Out 1 (+24 Vdc)
Out 2 (+24 Vdc)
Out 3 (+24 Vdc)
Out 4 (+24 Vdc)
Out 5 (+24 Vdc)
Out 6 (+24 Vdc)
Out 7 (+24 Vdc)
Out 8 (+24 Vdc)
Byte Select input (+24Vdc)
The connection of the outputs in NPN mode is described in the following table and
figure. Expansion board –EB is needed for this purpose.
Installation
Page 36 of 78
