USE AND MAINTENANCE MANUAL – DLC
NET

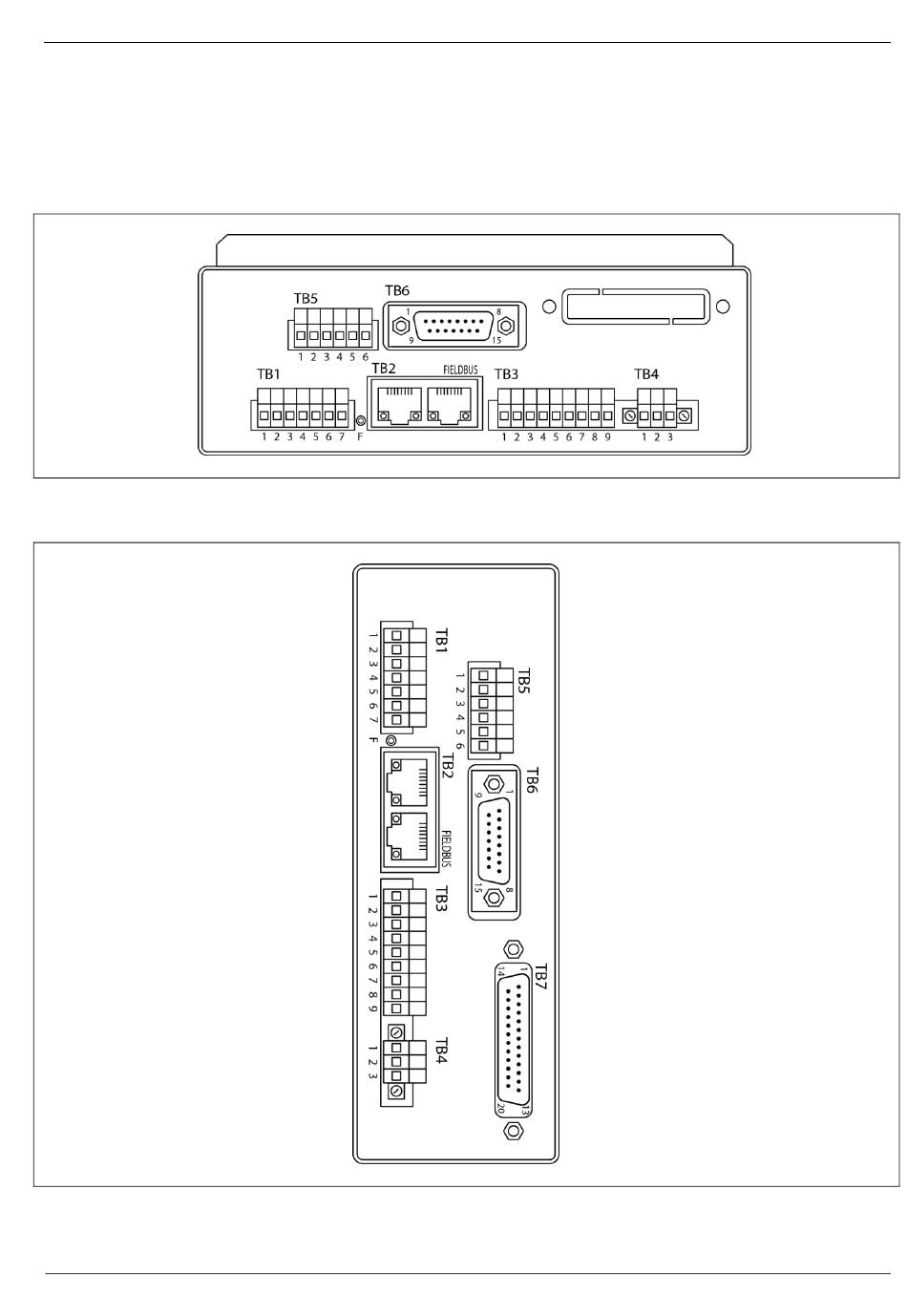

Figure 8. DLC
-WM terminals (model with on-board keyboard)
NET
Figure 9. DTR
-WM terminals (model with external keyboard)
LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
NET
Series
On the front panel it is also present the led F, which indicates a possible fault of
the Fieldbus communication.
Concerning DIN rail mounting inside a control panel, board terminals are set as
follows:
Where TB7 is a 20 poles connector reserved for keyboard connection.
Installation
Page 19 of 78
