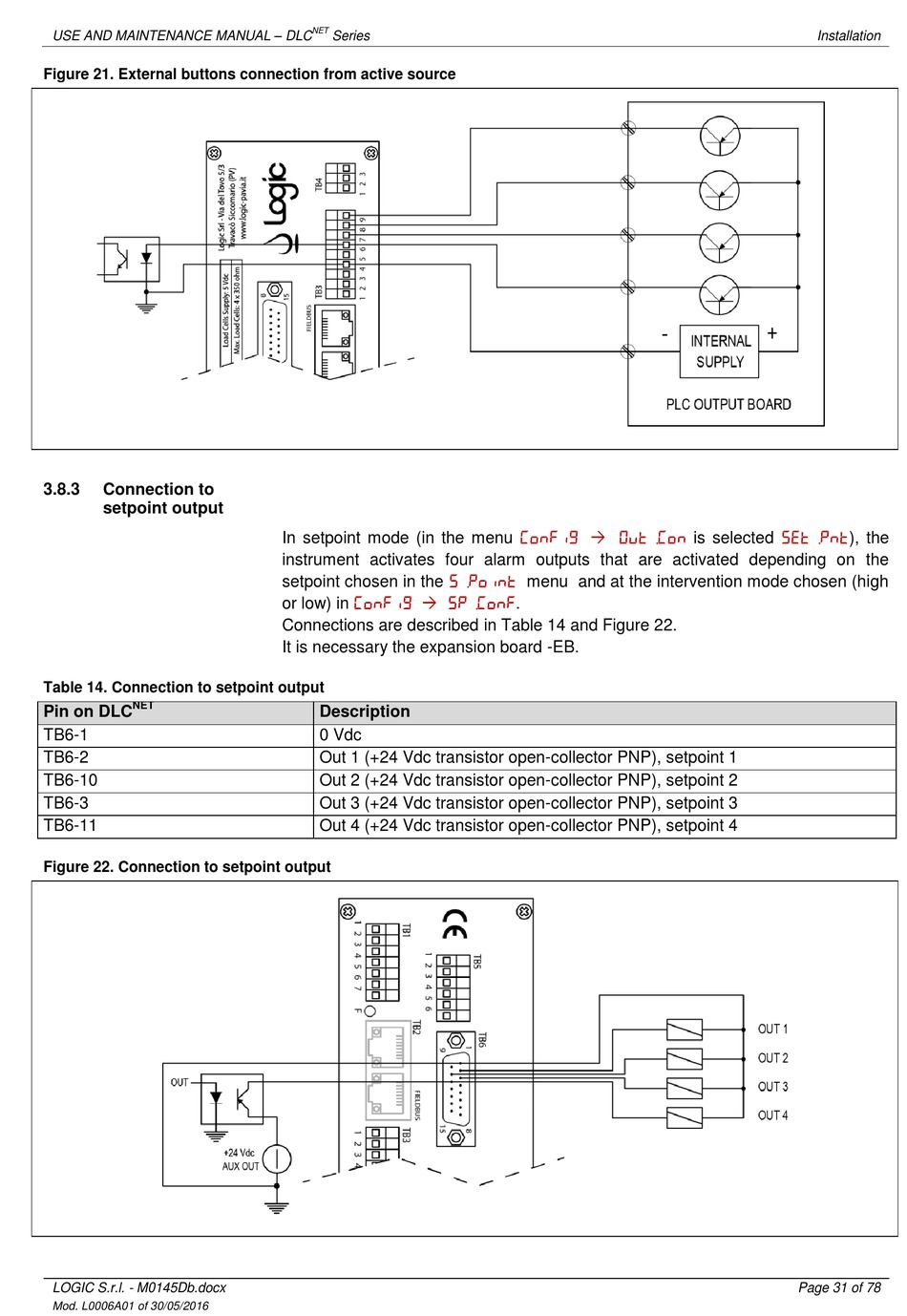

Figure 21. External buttons connection from active source

3.8.3 Connection to
setpoint output
Table 14. Connection to setpoint output
NET
Pin on DLC
TB6-1
TB6-2
TB6-10
TB6-3
TB6-11

Figure 22. Connection to setpoint output

LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
NET
Series
In setpoint mode (in the menu
instrument activates four alarm outputs that are activated depending on the
setpoint chosen in the

or low) in
Connections are described in Table 14 and Figure 22.
It is necessary the expansion board -EB.
Description
0 Vdc
Out 1 (+24 Vdc transistor open-collector PNP), setpoint 1
Out 2 (+24 Vdc transistor open-collector PNP), setpoint 2
Out 3 (+24 Vdc transistor open-collector PNP), setpoint 3
Out 4 (+24 Vdc transistor open-collector PNP), setpoint 4

menu and at the intervention mode chosen (high
.
Installation
is selected ), the
Page 31 of 78
