USE AND MAINTENANCE MANUAL – DLC
NET

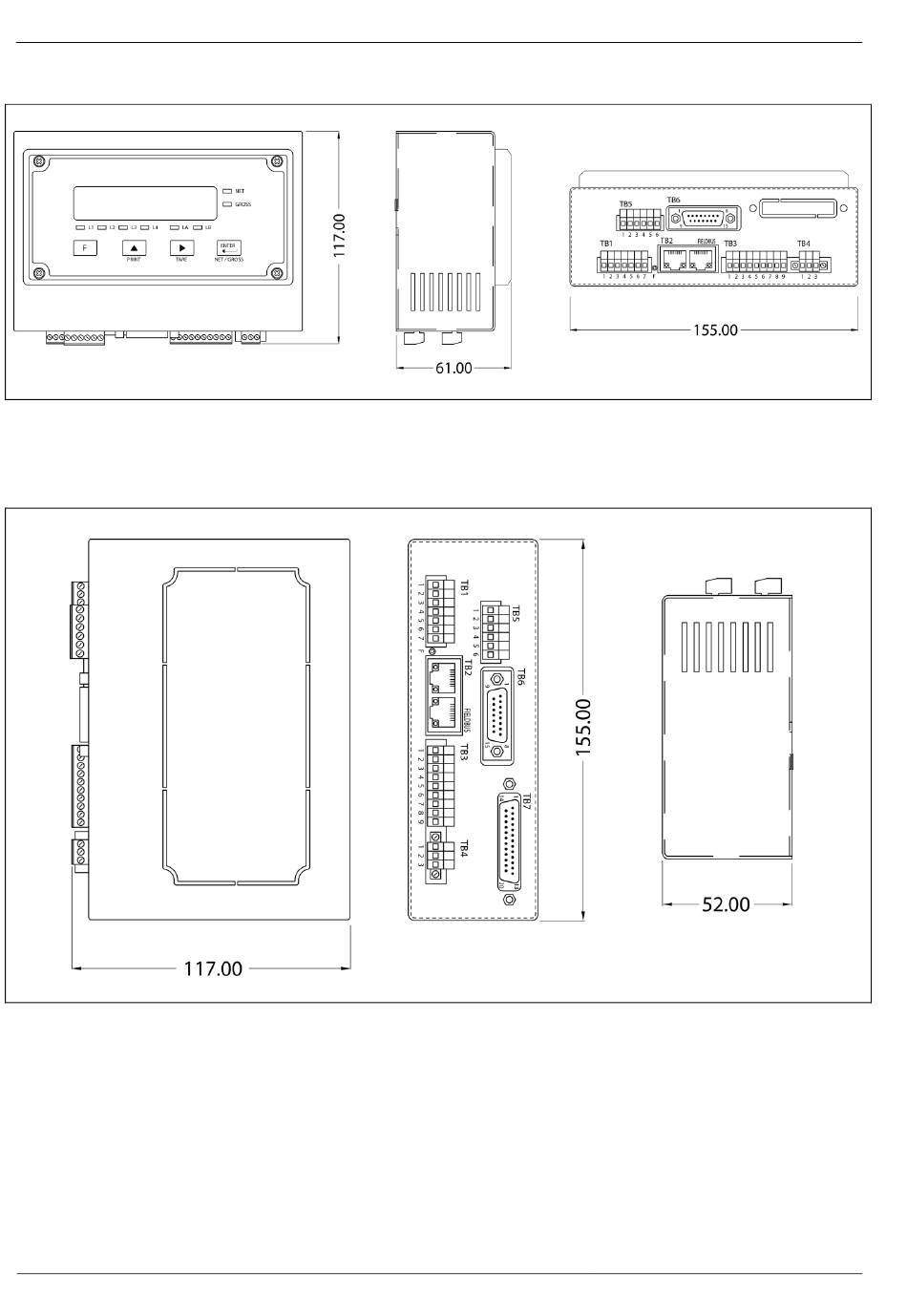

Figure 4. DLC -WM mechanical drawing
NET
Figure 5. DLC -DIN mechanical drawing
LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
NET
Series
NET
DLC -DIN has a 20 poles connector for an external keyboard (DLC-NET-KB)
and can be installed vertically on a DIN rail as well (Figure 5).
Installation
Page 16 of 78
