24.4 Tilt the screen and secure it to the lower bracket
You can use the levers on the screen rails to fix
the content screen in a tilted position.
Repeat the procedure for both screen rails.

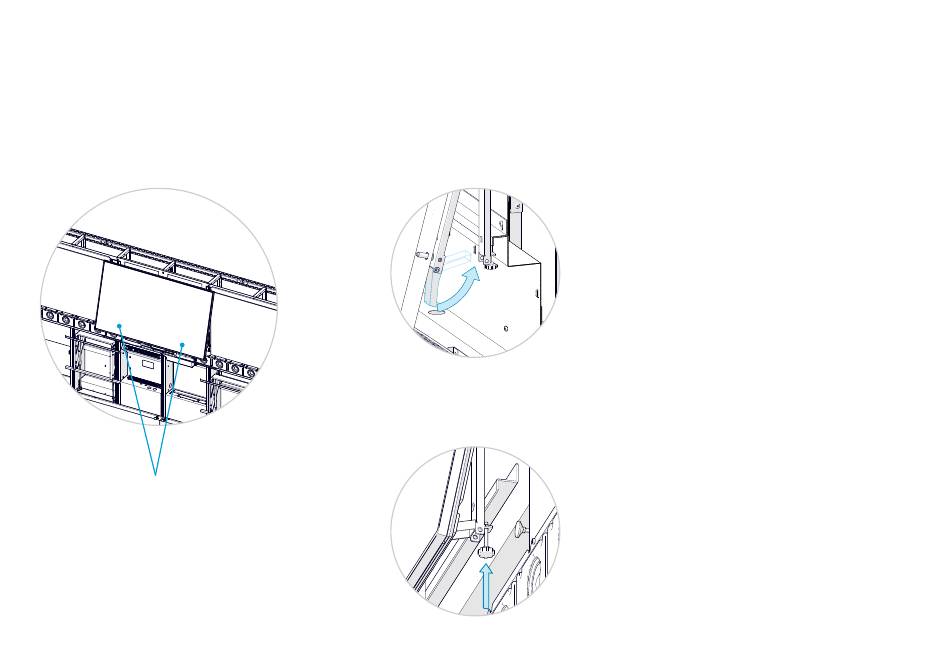

1. Carefully tilt the screen by lifting out the lower
edge.
Levers on the rails at the
back of the screen
64
2. Lift the lever so that the screen stays in a tilted
position.
3. Tighten the thumb screw so that it secures the
screen to the lower bracket.

24.5 Connect the cables

Connect the cables to the content screen
according to the wiring diagram:
1x HDMI (S3)
1x Ethernet (S6)
1x Power (S9)
