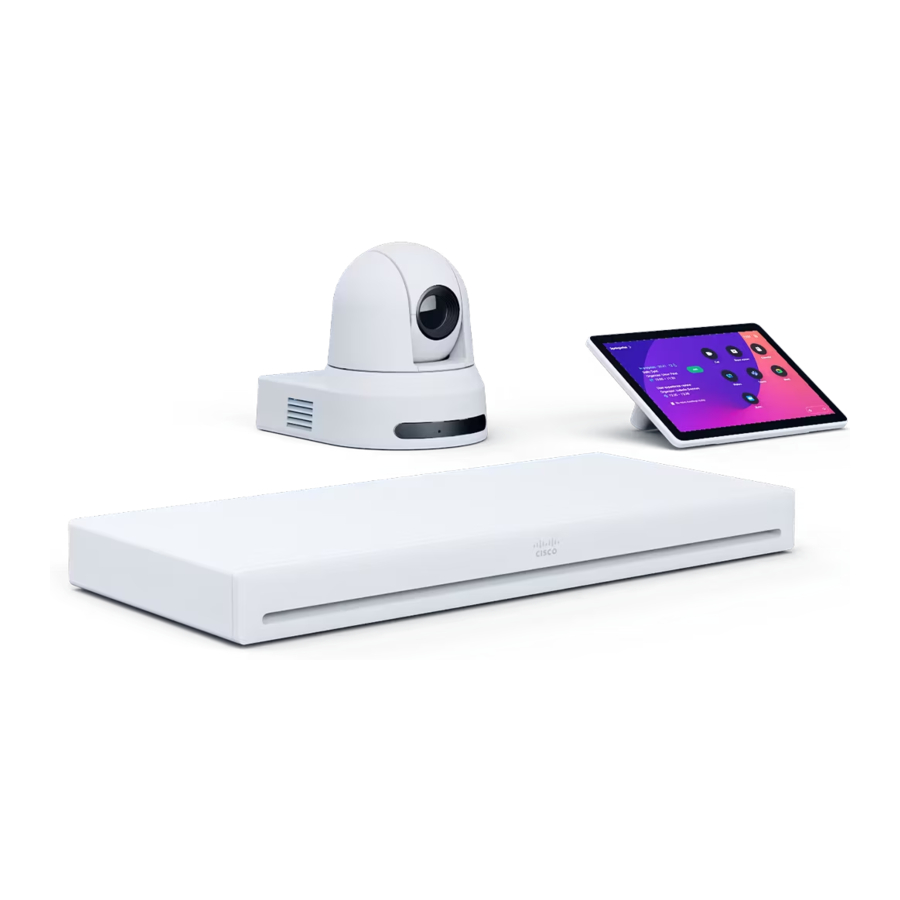

Cisco Room Kit EQ Manual

What's in the box

Antennas for Codec EQ (for radio version)
Power adapter and cable for PTZ 4K (optional)
Ethernet cable for Codec EQ network connection (optional)
Ethernet cable for Room Navigator (optional)
Rack mount for Codec EQ (optional)
Wall Mount for Codec EQ (optional)

No power cord option for Codec EQ: When the optional power cord is not ordered with the system, the customer is responsible for selecting the appropriate power cord to be used with this product. Using a non-compatible power cord with this product may result with electrical safety hazard. For orders to be delivered to Argentina, Brazil, China and Japan, appropriate power cord must be ordered with the system.
Rating of the power cable: 10 A, 250 V
Power connector: EL 701B (IEC 60320/C13)

Power (100-240 VAC, 50-60 Hz)

Use a power cable that meets the requirements of the power specification of the codec.
Keep the power plug and outlet easily accessible in case you need to disconnect the device from power.
This device is designed for connection to TN and IT power systems.

Network connectivity: Use either Ethernet LAN or Wi-Fi. Non-radio devices, which have the letters 'NR' in their product identifier (PID), don't support Wi-Fi.

Ventilation

Do not block any ventilation openings on the codec. Minimum 10 cm / 4 in. free space in front and rear side of the unit. When mounted in a rack, observe that the ambient temperature does not exceed 35°C.
Clearances for ventilation

Choose one of the mounting options

Wall mount kit

Rack mount kit

Desk placement

Mount the codec in a wall mount

Tools you may need

The product must be installed by qualified personnel. Due to the variety of wall constructions, the installer must bring the parts that are required to fix the product safely to the wall. The weight of the codec and bracket is 2.6 kg (5.7 lbs).
Wall mount dimensions
Mounting the product with the wall mount

* Pan head screw Ø 4 to Ø 5 mm recommended

Mount the product in a rack

Mounting the product in a rack

Place the unit on a desk or shelf

Placing the unit on a desk or shelf

Connect the antennas to the unit

(for radio version only)
Connecting the antennas to the unit

warning It is recommended to power the PTZ 4K via PoE (Power over Ethernet, port 1-3 on the Codec EQ). When using the power cable, always use the power supplies for the PTZ 4K camera specified in www.cisco.com/go/PTZ4K-datasheet.
Don't use a VISCA cable for camera control as it will cause severe damage to the camera.

Handling the PTZ 4K Camera

information When the PTZ 4K is mounted upside down, configure the codec to flip the camera image. See the Administrator Guide for the codec.
Mounting the PTZ 4K

Connect the cables

Each of the four first Ethernet ports support the PoE++ IEEE802.3bt standard, which is maximum 90 W per port. The delivery capability is maximum 90 W for the four ports combined.
Connecting the cables - Part 1
Connecting the cables - Part 2

Turn on the unit and complete the software setup

Turning on the unit and completing software setup

Turn on the screen. See the user documentation for the screen if HDMI input must be set manually.
The system powers up automatically. If the system doesn't power up, check the power switch on the codec and the camera.
Follow the instructions on screen to complete the setup. Choose Room Kit EQ when prompted. *
We recommend that you upgrade the software on your Codec before putting it to use. See the Administrator Guide (https://www.cisco.com/go/roomkit-docs) for the codec.

* Alternatively, run the API command
