Mount the antennas

Skip this step if you have a non-radio product.

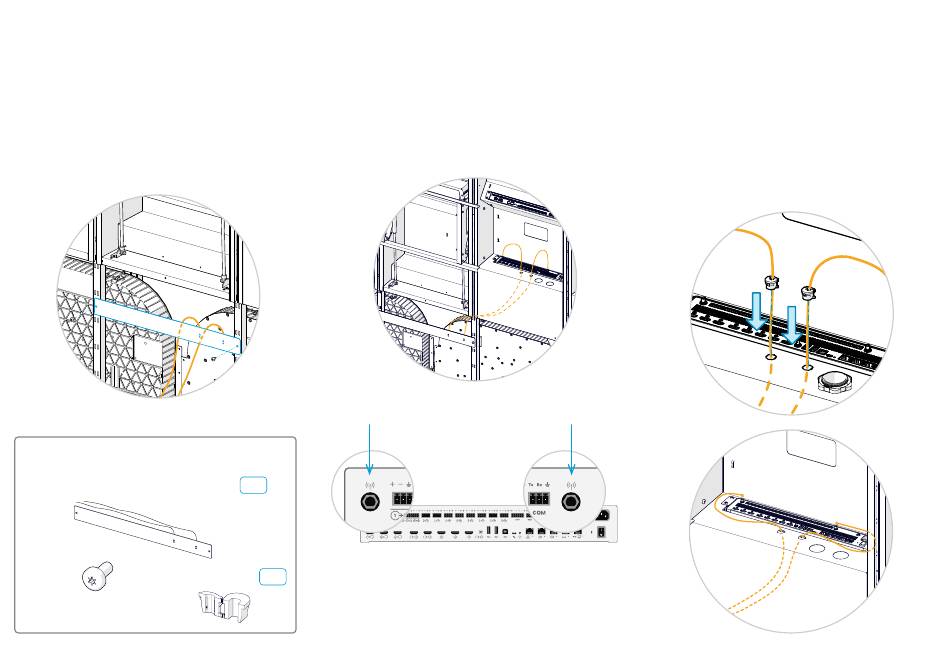

1. Fasten the antenna support below the left
display cavity. The antennas themselves face
right and inward.
Fasten the support to the risers with two
screws
.
(M6x12, Torx 30)
Antenna kit
1x
Antenna support with two antennas
2x
2x
(M6x12, Torx 30)
26
Non-radio products, which have the letters 'NR' in their product identifier (PID), are delivered without antennas.
2. Thread the two antennas up through the small
holes in the rack cavity, and connect them to
the codec. The antennas are equal.
C5
Cable gland
A6
3. Guide the antennas around the codec as
shown below. Then attach cable glands for
strain relief.
Fasten the antennas to the risers with velcro
to prevent them from touching the subwoofers
and cause rattling noise.
