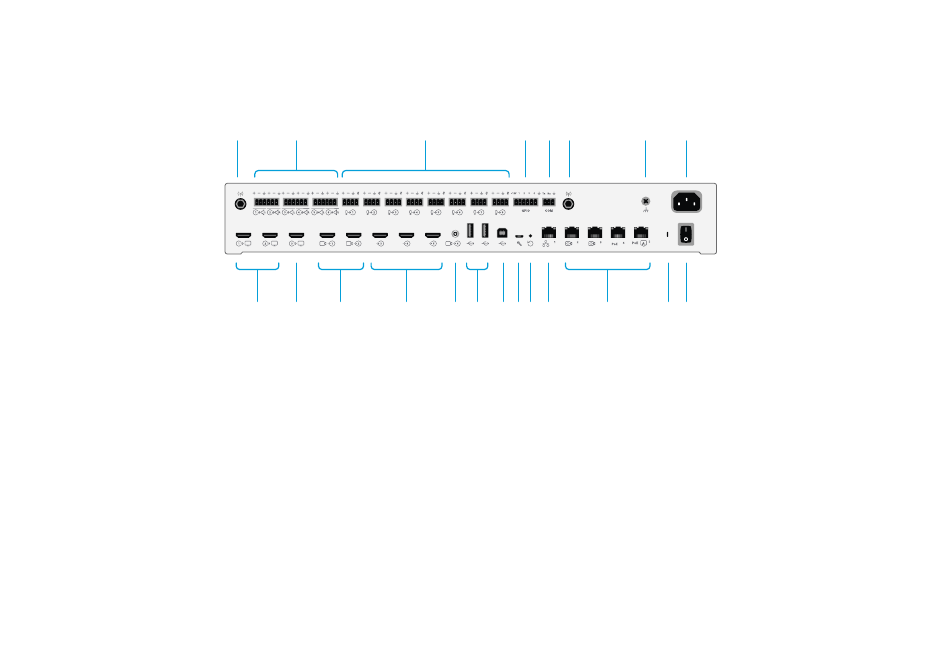

Connector panels

The codec (Cisco Webex Codec Pro)
A. Antenna connector
B. Line outputs (Euroblock, 3.5 mm)
C. Microphone/Line inputs (Euroblock, 3.5 mm)
D. Programmable GPIO port (Euroblock, 3.5 mm)
E. COM port (Euroblock, 3.5 mm)
F. Antenna connector
G. Ground (Protective earth)
H. Power input
I. HDMI outputs with audio and video, 4Kp60 (for internal use)
J. HDMI output with audio and video, 4Kp30 (for internal use)
K. Camera inputs (HDMI), 1080p60 (for internal use)
82
A
B
I
J
K
L
C
D
E
F
M
N
O P Q
R
L. HDMI inputs with audio and video, 4Kp30
M. Camera input (3G-SDI / HD-SDI), 1080p60, HD-BNC, 75 Ω
N. USB 2.0 type A
O. USB 2.0 type B
P. Maintenance (micro USB)
Q. Factory reset pin-hole
R. Network (Ethernet) 1Gb
S. Ethernet (for internal use)
T. Status LED
U. Power On/Off
G
H
S
T U
