Cisco Codec EQ Manual

What's in the box

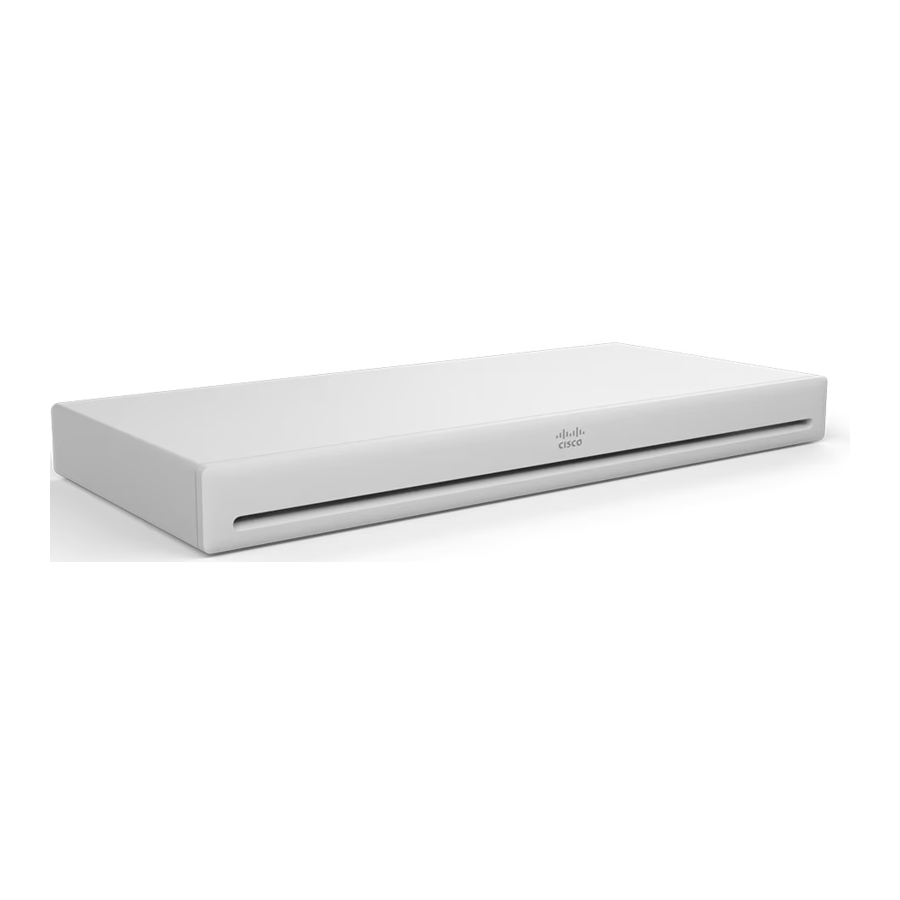

Cisco Codec EQ

Antennas (for radio version)*

Wall mount kit (Optional)

Rack mount kit (optional)

* Only use the antennas delivered with the codec

No power cord option for Codec EQ: When the optional power cord is not ordered with the system, the customer is responsible for selecting the appropriate power cord to be used with this product. Using a non-compatible power cord with this product may result with electrical safety hazard. For orders to be delivered to Argentina, Brazil, China and Japan, appropriate power cord must be ordered with the system.
Rating of the power cable: 10 A, 250 V
Power connector: EL 701B (IEC 60320/C13)

Power (100-240 VAC, 50-60 Hz)

• Use a power cable that meets the requirements of the power specification of the codec.
• Keep the power plug and outlet easily accessible in case you need to disconnect the device from power.
• This device is designed for connection to TN and IT power systems.

Network connectivity: Use either Ethernet LAN or Wi-Fi. Non-radio devices, which have the letters 'NR' in their product identifier (PID), don't support Wi-Fi.

Ventilation

Do not block any ventilation openings on the codec. Minimum 10 cm / 4 in. free space in front and rear side of the unit. When mounted in a rack, observe that the ambient temperature does not exceed 35°C.

Choose one of the mounting options

Wall mount kit

Rack mount kit

Desk placement

Mount the product with the wall mount

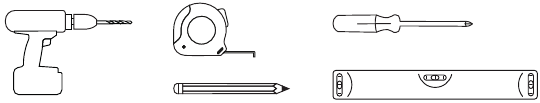

Tools you may need

The product must be installed by qualified personnel. Due to the variety of wall constructions, the installer must bring the parts that are required to fix the product safely to the wall. The weight of the codec and bracket is 2.6 kg (5.7 lbs).

* Pan head screw Ø 4 to Ø 5 mm recommended

Mount the product in a rack

Place the unit on a desk or shelf

Connect the antennas to the unit

(for radio version only)

Connect the cables

Each of the four first Ethernet ports support the PoE++ IEEE802.3bt standard, which is maximum 90W per port. The delivery capability is maximum 90W for the four ports combined.

Turn on the unit

Complete the software setup

1. Turn on the screen. See the user documentation for the screen if HDMI input must be set manually.
2. The system powers up automatically. If the system doesn't power up, check the power switch on the codec and the camera.
3. Follow the instructions on screen to complete the setup. Choose Room Kit EQ when prompted. *
4. We recommend that you upgrade the software on your Codec EQ before putting it to use. See the Administrator Guide (https://www.cisco.com/go/roomkit-docs) for the codec.

* Alternatively, run the API command

Product Overview

1. Antenna connector
2. Kensington security slot
3. Power
4. 3 × Network (Ethernet PoE)
5. Touch panel (user interface, Ethernet PoE)
6. Network (Ethernet)
7. 3 × HDMI outputs with audio and video, 4Kp60
8. 3 × HDMI inputs with audio and video, 4Kp30
9. USB 3.0, type C
10. 4 × USB 3.0, type A
11. Factory reset
12. Maintenance (micro USB)
13. 3 × Microphone inputs
14. Audio line output

Visit these websites to learn more about your device.

help.webex.com

cisco.com/go/room-docs

projectworkplace.cisco.com

cs.co/mtrdevice-docs

cs.co/webexadoption

Room Kit EQ data sheet
See the product data sheet for more information on ordering accessories, cables, and spare parts.
