Screws and tools

Required tools and equipment

Two stepladders
Drill
Torx 20, Torx 25, and Torx 30 bits
PH2 and PH3 bits
Hex 2 mm and 6 mm bits
Angle chuck
Appropriate drill bits for your wall material
Appropriate wall fasteners/anchors for your wall construction
Laser level (multi axis)
Small spirit level (about 25 cm / 10 in.)
Pencil
Nylon draw tape
4

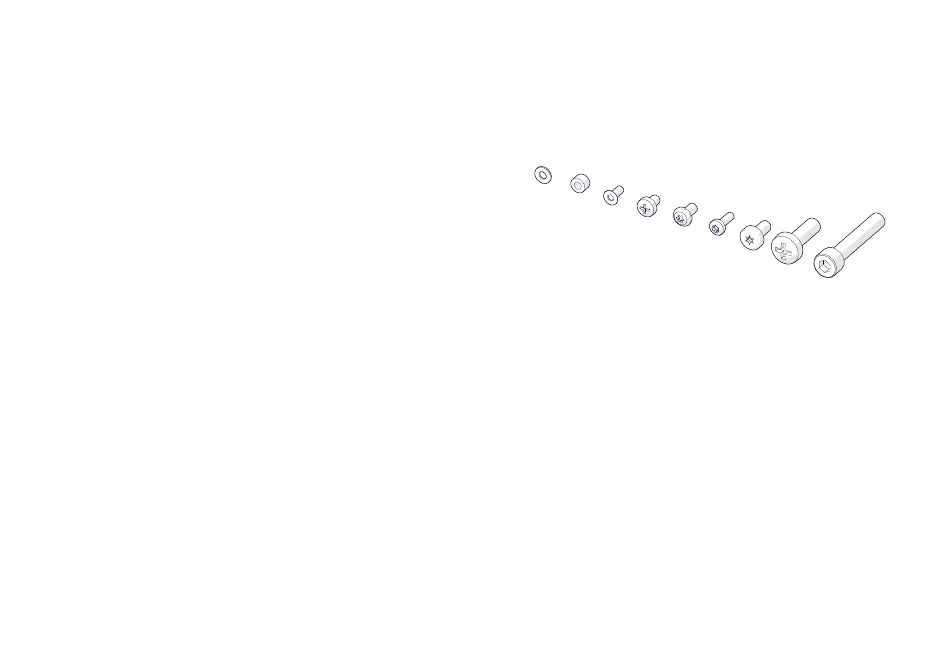

Screws and spacers
The following kit of screws and spacers are shipped with the product. The kit is
in box A1.
1
2
3
4
1. Washer, 0.9 mm (16 pcs.)
2. Nylon spacer, 5 mm (16 pcs.)
3. FH M4x10, Torx 20 (24 pcs.)
4. PAN10-32x0.312, PH2 (4 pcs.)
5. M5x10, Torx 25 (12 pcs.)
6. M4x12, Torx 20 (100 pcs.)
7. M6x12, Torx 30 (150 pcs.)
8. M8x25, PH3 (8 pcs.)
9. M8x45, Hex 6 mm (4 pcs.)
In addition, the installer must bring the number and type of screws required for
a safe wall mounting of the system (step 1).
5
6
7
8
9
