Mounting the Sprayer Monitor to
the Dash
1.
Loosen the knob of the monitor arm until you
can slip both the ball pivot for the ball pivot at
the back of the sprayer monitor into the socket
monitor arm
(Figure

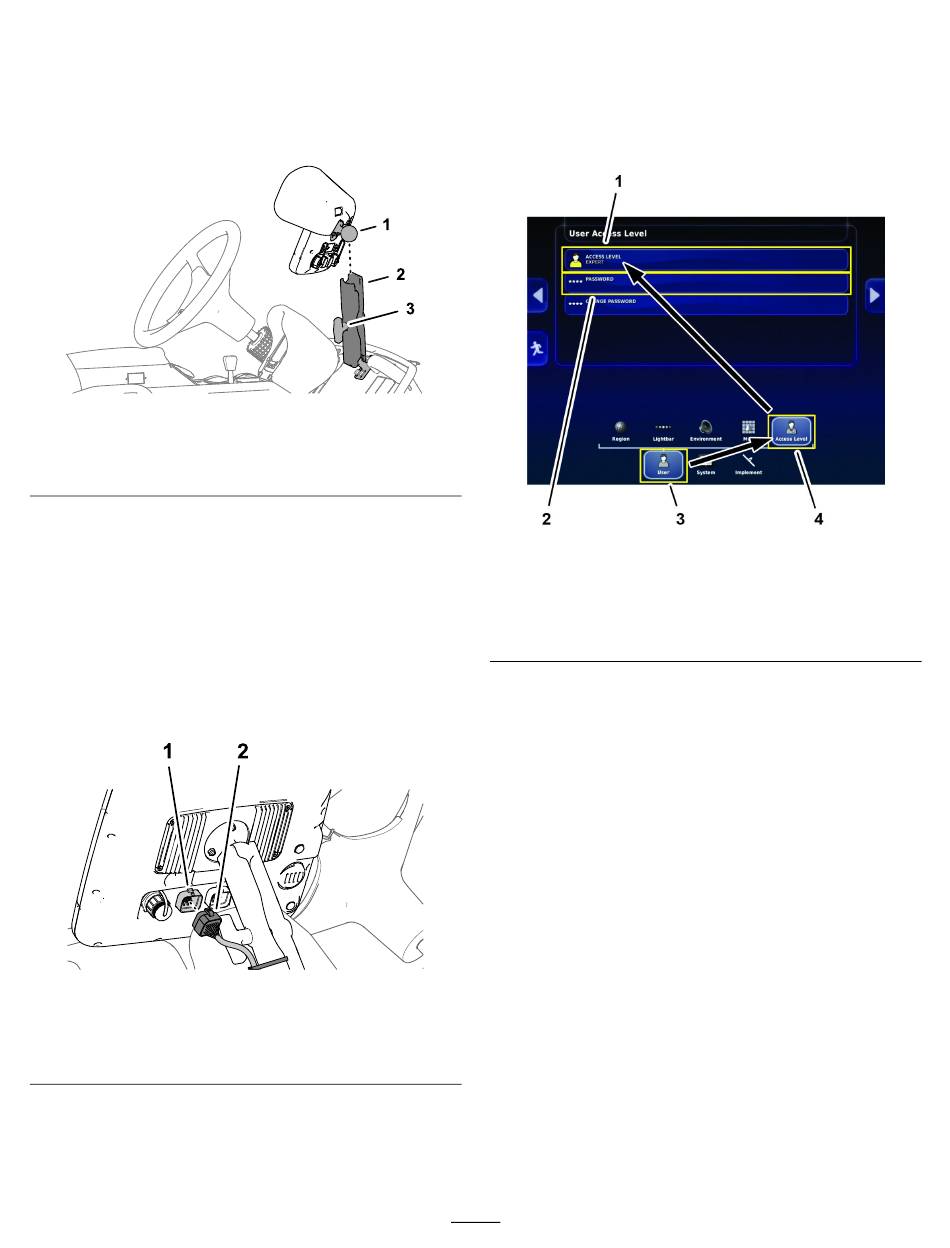

Figure 10
1. Ball pivot
2. Monitor arm
2.
From the driver's seat (left seat), adjust to
position of the sprayer monitor so that you can
easily view the display screen
3.
Tighten the knob for the monitor arm by hand
(Figure
10).
4.
Align the 26-socket connector of the data
harness branch with the 26-pin connector of the
sprayer monitor and press the socket connector
into the pin connector until the connector latches
securely
(Figure
1. 26-pin connector (sprayer
display)
10).
3. Knob
(Figure
10).
11).
Figure 11
2. 26-socket
connector—data harness
(sprayer monitor)
Changing User Access Level
1.
Rotate the ignition key to the R
P
/R
REHEAT
2.
On the home screen, press the S
3.
On the setup screen, press the U
the A
CCESS
g323247
1. A
L
CCESS
EVEL
access level dialog box)
2. A
L
CCESS
EVEL
screen)
4.
In the user access level dialog box, press the
A
L
CCESS
press the E
5.
Press the P
the text box.
g323248
8
UN
(diesel) position.
UN
L
icon
(Figure
12).
EVEL
Figure 12
icon (user
3. U
icon (setup screen)
SER
icon (setup
4. P
ASSWORD
access level dialog box)
icon, and in the drop-down menu,
EVEL
icon
(Figure
12).
XPERT
icon, and type TORO1 in
ASSWORD
(gasoline) or
icon.
ETUP
icon and
SER
g323303
icon (user
