Toro GeoLink 41624 Operator's Manual

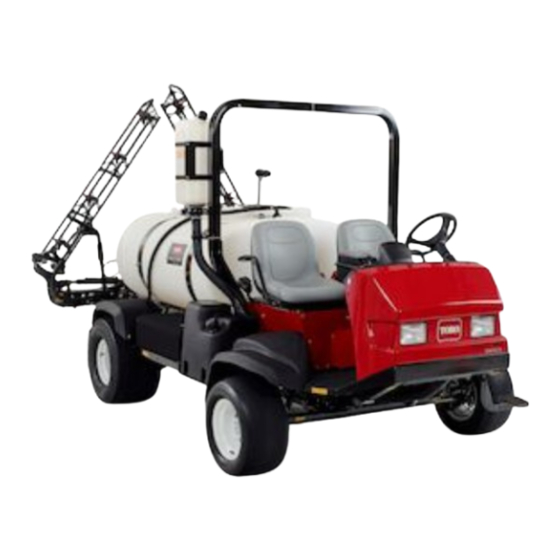

Turf sprayer, precision spray system

Advertisement

Quick Links

Note:
Register at www.Toro.com.
Original Instructions (EN)
All manuals and user guides at all-guides.com
GeoLink
System
Multi Pro
Model No. 41623—Serial No. 315000001 and Up
Model No. 41624
Model No. 41625
Contact Toro
®
NSN
NSNTech@toro.com for customer service.
Form No. 3397-155 Rev C
®
Precision Spray
®
5800 Turf Sprayer
®
at 1-800-ASK-TORO or
*3397-155* C

Advertisement

Table of Contents
loading

Summary of Contents for Toro GeoLink 41624

  • Page 1 System Multi Pro ® 5800 Turf Sprayer Model No. 41623—Serial No. 315000001 and Up Model No. 41624 Model No. 41625 Note: Contact Toro ® ® at 1-800-ASK-TORO or NSNTech@toro.com for customer service. *3397-155* C Register at www.Toro.com. Original Instructions (EN)
  • Page 2: Table Of Contents

    Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Model No. Serial No.
  • Page 3: Safety

    All manuals and user guides at all-guides.com Safety Read and understand the contents of this Operator’s Manual before operating the console computer. • Keep these instructions with the Operator’s Manual for the turf sprayer. • It is very important that all who operate this equipment have ready access to these instructions at all times.
  • Page 4: Product Overview

    All manuals and user guides at all-guides.com Product Overview Note: Hold the green button only to turn on the screen until the screen and light bar begins to flash, or in an emergency, to turn the screen off. Controls The GeoLink ™...
  • Page 5 All manuals and user guides at all-guides.com Brightness-Control Buttons Brightness-control buttons adjust the brightness of the display (Figure g030694 Figure 3 1. Help button 4. Brightness-control button 2. USB eject button 5. Brightness-control button 3. Home button 6. Day or night mode Cancel and Confirm Buttons Use these buttons to cancel or confirm an entry or a selection.
  • Page 6: Operation

    All manuals and user guides at all-guides.com Understanding the LED Operation Lights The display computer controls the spray application rate for varying vehicle speeds. You set the target volume per unit area to spray, and the display computer automatically maintains the flow within the proper range of the vehicle speed and continually displays the actual volume of material per area sprayed.
  • Page 7: Using The Touch Screen

    All manuals and user guides at all-guides.com Using the Touch Screen You add Sprayer information to the screen by touching and enabling the individual icons. • Select any icon on the screen to display what is shown on the screen. •...
  • Page 8: Using The Easy Mode

    All manuals and user guides at all-guides.com Using the Easy Mode The easy mode is for spraying areas with defined boundaries, allowing you to select the jobs and display the spraying area. g030907 Figure 8 Easy-mode screen 1. System-information icon 5.
  • Page 9 All manuals and user guides at all-guides.com In the sprayer-controller screen, determine if the correct rate (gal/ac) is selected. If the rate is not correct, change the rate with the preset rates, incrementally or selecting the current rate and manually entering the application rate (Figure 10).
  • Page 10 All manuals and user guides at all-guides.com If the display shows all light gray, you can spray Select the field menu icon. every area. Select the name of the existing field (Figure 16). Using the Easy Mode with an Existing Job Note: A job is set up in the standard mode.
  • Page 11: Recording Job Details

    All manuals and user guides at all-guides.com g030903 Figure 18 1. Boom switch, left boom 3. Boom switch, right boom g031535 2. Boom switch, center boom Figure 19 1. Job-menu icon 3. List of information to To start spraying, turn the spray icon on the change screen and drive into the spray area (Figure...
  • Page 12: Exporting Job Information

    All manuals and user guides at all-guides.com g031536 Figure 20 g031537 1. Job-notes icon 2. Job-information icon Figure 21 1. Job-menu icon 3. List of information to change Exporting Job Information 2. Data-exchange icon Note: Ensure a job is in session before exporting job information.
  • Page 13: Setting Up The System

    All manuals and user guides at all-guides.com Setting up the System Note: The pump should increase the pressure until it reaches the desired rate with the proper Before operating the GeoLink spray system, perform nozzle size. this procedure. Turn the master-boom control (foot) switch to Read through the following instructions before position.
  • Page 14: Operating Tips

    All manuals and user guides at all-guides.com Operating Tips Note: The system should automatically correct the target application rate. If the system does not correct the application rate, review Setting Increasing the RTK Reception up the System (page 13). After spraying a swath, switch the foot switch Reduce the machine speed when you are approaching to the position to shut off the spray flow to...
  • Page 15: Maintenance

    All manuals and user guides at all-guides.com Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Clean the flowmeter (more often when using wettable powders). Every 200 hours Cleaning the Flowmeter Use a low pressure (50 kPa or 5 psi) air jet to ensure that the turbine spins freely.
  • Page 16: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting Note: If the console computer malfunctions or needs repair, you can control the system using the center-console controls. For many errors an error code, or trouble code, will display. It is also possible to view the errors on the screen. The errors listed below are common and are correctable.
  • Page 17 All manuals and user guides at all-guides.com Problem Possible Cause Corrective Action There is no power to the display. 1. The connectors are not installed 1. Ensure the connectors are installed correctly. correctly at the back of the display, 2. The fuse for the display is blown. 2.
  • Page 18 All manuals and user guides at all-guides.com Notes:...
  • Page 19 All manuals and user guides at all-guides.com Notes:...
  • Page 20 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
