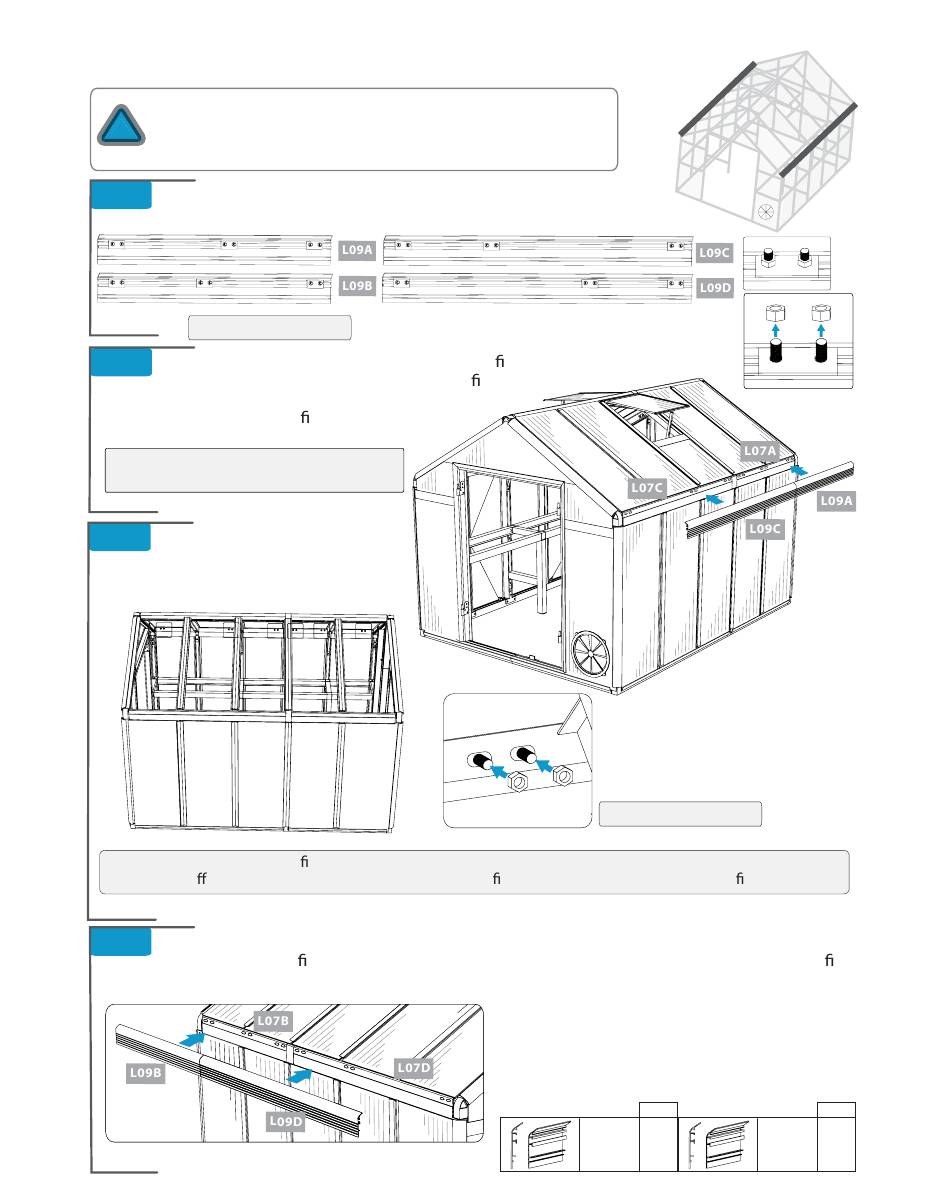

Install Trim Plates

Place the trim plates on a level surface.
!
Make sure the pieces are in the correct positions before assembling.
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
14.1 Remove the six hex nuts from the hex bolts attached to each
L09A, L09B, L09C and L09D trim plate BEFORE installing.
VIEWS FROM INSIDE.
14.2A Place trim plates L09C and L09D onto pro les L07C and L07D
on outside of greenhouse. Trim plates t over edges
of side and roof panels and bolts are inserted
into holes on pro les L07C and L07A.
NOTE: Trim plates cover edges of black
rubber stripping and roof and side panels.
From inside of greenhouse,
14.2B
place hex nuts onto hex bolts
in trim plates L09A and L09C
and tighten securely.
IMPORTANT: The holes in pro les L07A, L07B, L07C and L07D and the bolts in trim plates L09A, L09B, L09C and
L09D are in di erent positions. Fit trim plate L09A into pro le L07A. Fit trim plate L09C into pro le L07C.
14.3
Repeat Step 14.2A and 14.2B on other side of greenhouse. Make sure to attach trim
plate L09B to pro le L07B in the back of the greenhouse and trim plate L09D to pro le
L07D in the front.
www.stcny.com
VIEWS FROM INSIDE.
Trim Plate
#L09A
#L09B
53 of 57
Trim Plate
QTY QTY
1 #L09C
1 #L09D
1
1
