Brace Sides

Place all the parts for bracing the sides on a level surface.
Make sure the pieces are in the correct positions before assembling.
!
Please carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including shoes, gloves and goggles.

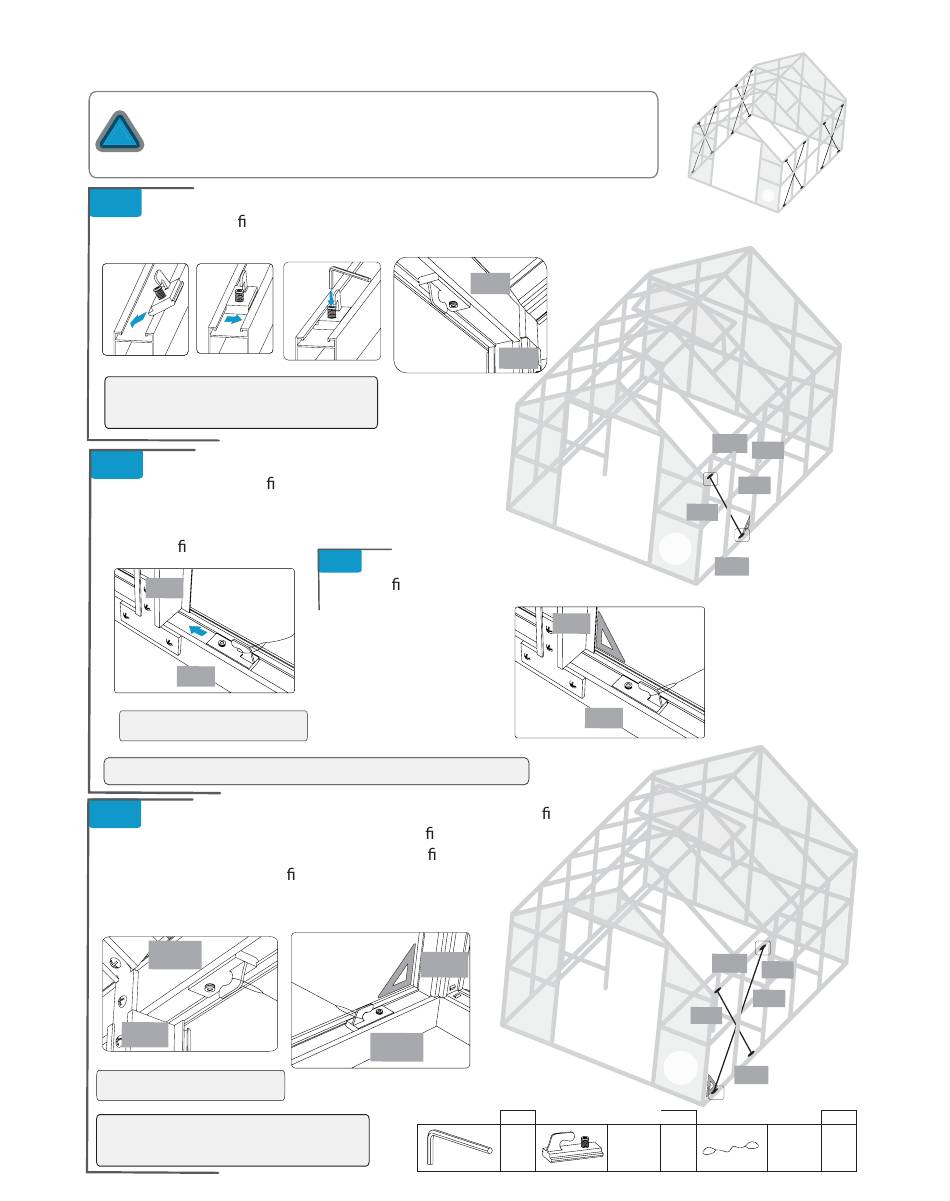

From the inside of the greenhouse, insert long side of cable connector
9.1A
S06 into pro le channel L07C with hook facing the front. Slide connector to
other side of channel. Use hex key to securely tighten and hold in place.
IMPORTANT: Make sure all corners
are squared at 90 degrees.
9.1B Attach one side of long cable S07 to hook and
lace behind pro le L14B. Attach other side of
cable to a second S06 cable connector. With
hook facing the back, insert connector into
pro le channel L01D.
L03V
L01D
VIEWS FROM INSIDE.
IMPORTANT: Make sure all corners are squared at 90 degrees.
9.2
Repeat step 9.1 inserting cable connectors S06 into pro le L07C
with hook facing the back and into pro le L01D with hook
facing the front. Cable rests behind pro le L14B. Slide
connector until pro le corners are square and cable is
tight. Use hex key to securely tighten second
connector and hold in place.
L07C
L03V
VIEWS FROM INSIDE.
IMPORTANT: Make sure all corners
are squared at 90 degrees.
www.stcny.com
L07C
9.1C
Push towards center until
pro le corners are square and cable
is tight. Use hex key
to securely tighten
and hold in place.
L02B
L01D
Hex Key
44 of 57
L02B
L03V
L01D
Cable Connector
QTY QTY
1 #S06 4
L07C
L03V
L14B
L02B
L01D
L07C
L03V
L14B
L02B
L01D
Cable
QTY
#S07 2
