STC Easy2Build Easy-Grow Assembly Instructions Manual page 23

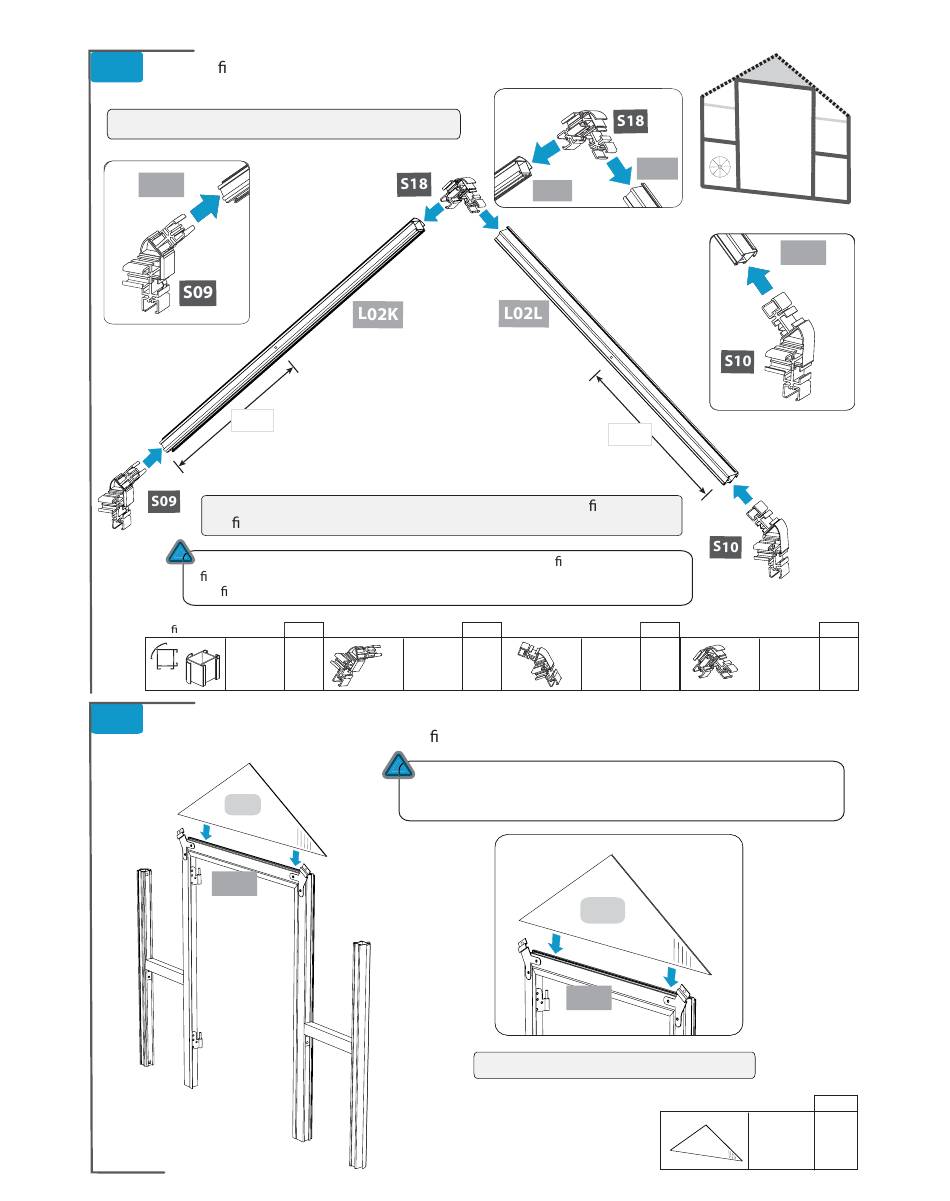

3.4A
Slide pro les L02K and L02L into connectors S09, S18 and S10 until they
click into place.
Connectors S09, S10 and S18 CLICK into place.
L02K
26.5"
(676 mm)
IMPORTANT: The holes are not at the midpoint of the pro les. Arrange
pro le so the 26.5" portion will be the bottom when standing.
!
There is only one way to properly fasten connectors into pro les. Line up parts
rst to ensure correct placement. Slide connectors until they CLICK securely into
pro le. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
Pro le
#L02K
#L02L
3.4B
Remove protective plastic from both sides of panel Y20. Place side to face toward the sun facing
down. Fit panel into V-channel on pro le L06J.
Y20
L06J
www.stcny.com
Connector
QTY QTY
1
#S09
1
!
Remove protective plastic from EACH side of poly carbonate
panels before installing. Dispose of plastic properly. Install with
side labeled "Face this side towards the sun" FACING DOWN.
21 of 57
L02L
L02K
26.5"
(676 mm)
Connector
QTY
1 #S10 1
Y20
L06J
NOTE: ALL VIEWS ARE FROM INSIDE.
L02L
Connector
QTY
#S18 1
Panel
QTY
#Y20 1
