STC Easy2Build Easy-Grow Assembly Instructions Manual

8’ x 10’ greenhouse
Hide thumbs Also See for Easy2Build Easy-Grow:
Table of Contents

Advertisement

Quick Links

Easy2Build
TM
7
10
Smart Tech solutions

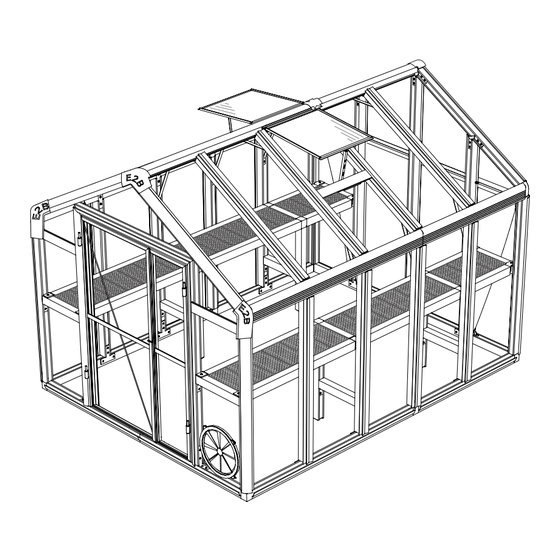

8' x 10' Easy-Grow Greenhouse
Assembly Instructions
Systems Trading Corporation
450 7th Avenue Suite 2809, New York, NY 10123
Customer Service: (877) 407-9100 ext 1 Email: customerservice@stcaustin.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easy2Build Easy-Grow and is the answer not in the manual?

Questions and answers

Robert S Antos
April 22, 2025

need plastic v-shaped strips to hold greenhouse plastic into corners. I have a 6x10 Poly Greenhouse. According to manual it is part # 35 the v - locker

0

Subscribe to Our Youtube Channel

Related Manuals for STC Easy2Build Easy-Grow

Summary of Contents for STC Easy2Build Easy-Grow

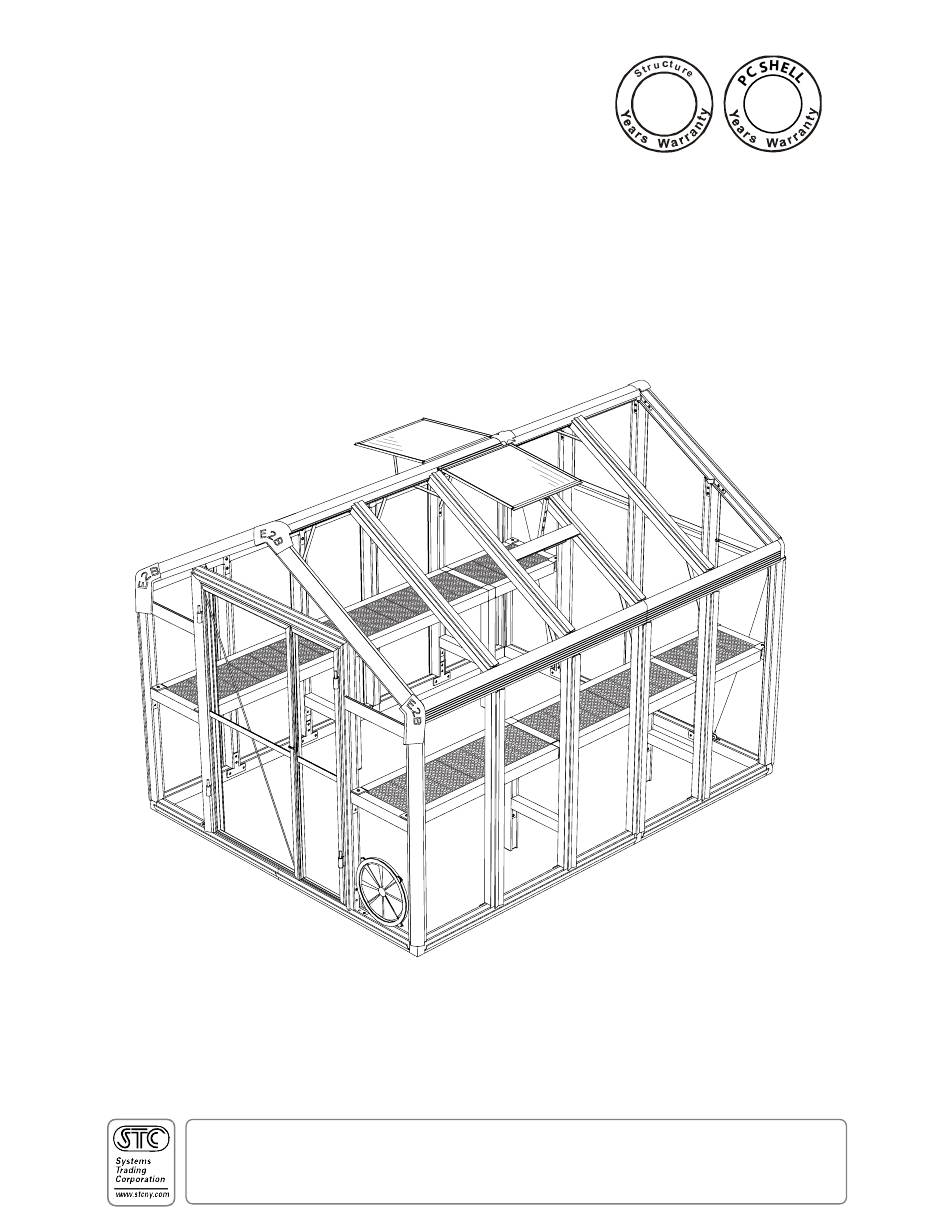

  • Page 1 Easy2Build Smart Tech solutions 8’ x 10’ Easy-Grow Greenhouse Assembly Instructions Systems Trading Corporation 450 7th Avenue Suite 2809, New York, NY 10123 Customer Service: (877) 407-9100 ext 1 Email: customerservice@stcaustin.com...
