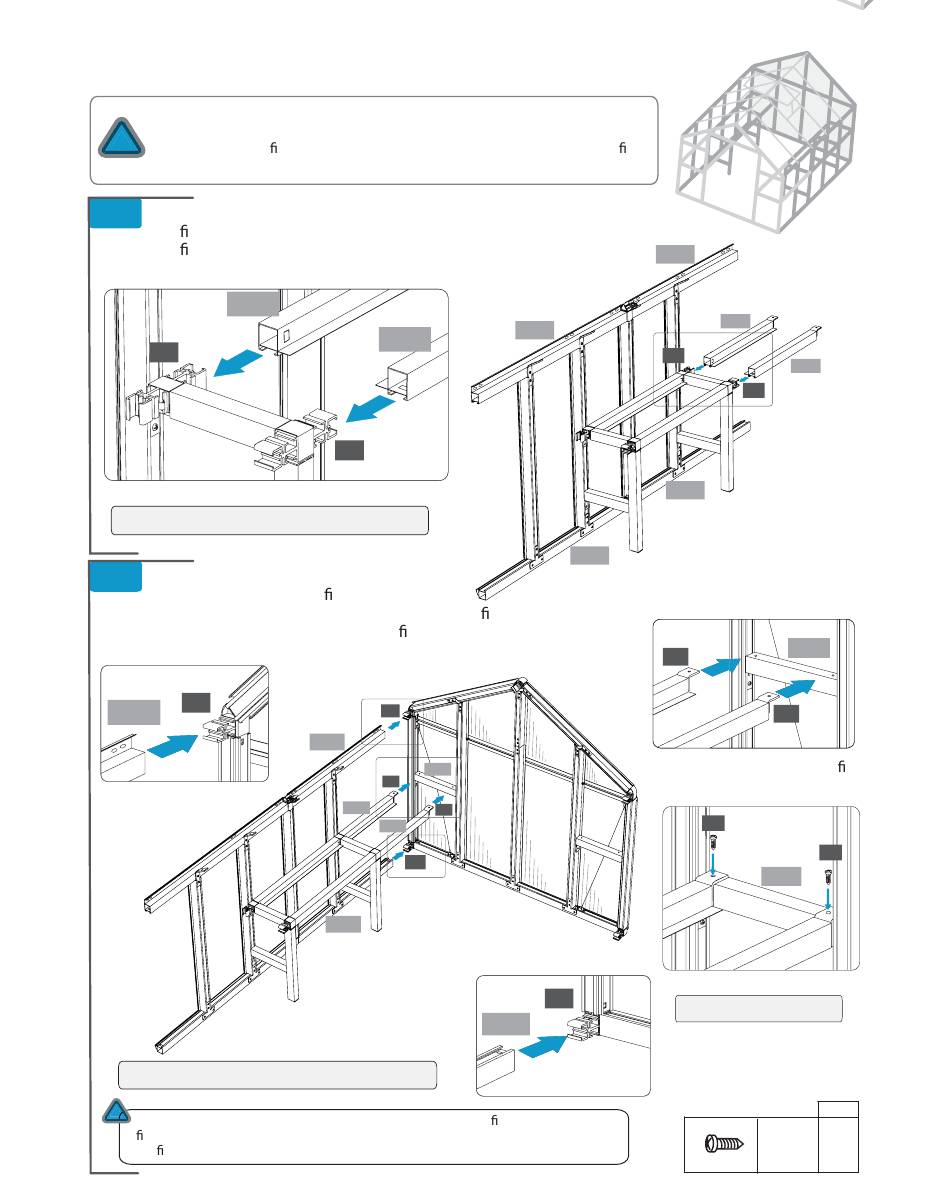

Connect Sides to Back

With the outside facing a wall, carefully stand back up and lean against the
wall. Stand each side up and place next to the back. Both sides are identical
!
until the shelf pro les are connected. Make certain that positions of pro les
L07A and L07B match the diagrams before connecting.
6.1A
Stand the left side facing inside with L07B next to the back. Slide shelf
pro le L14K into connector S03 until it clicks into place. Slide shelf
pro le L14L into connector S39 until it clicks into place.
L14K
S03
Connectors S03 and S39 CLICK into place.
6.1B
Carefully slide left side into back, lining
up connectors with pro les. Move side so
connectors S09 and S04 are half way into pro les L07B and L01C.
Connectors S37 rest on top of pro le L04F. Push side in until
connectors click into place.
S09
L07B
Connectors S04 and S09 CLICK into place.
!
There is only one way to properly fasten connectors into pro les. Line up parts
rst to ensure correct placement. Slide connectors until they CLICK securely into
pro le. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
www.stcny.com
L14L
S39
S09
L07B
L04F
S37
L14K
S37
L14L
S04
L01C
L01C
35 of 57
L07B
L07D
S03
L01C
L01D
S37
Secure connectors S37 to pro le
L04F with two S02 screws.
S04
VIEWS FROM INSIDE.
Screw
L14K
L14L
S39
L04F
S37
S02
S02
L04F
QTY
#S02 2
