Install Trim Plates

Lay out the trim plates in a staging area.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
13.1
Remove the six hex nuts from the hex bolts attached to
each G09A and G09B trim plate BEFORE installing.
13.2A

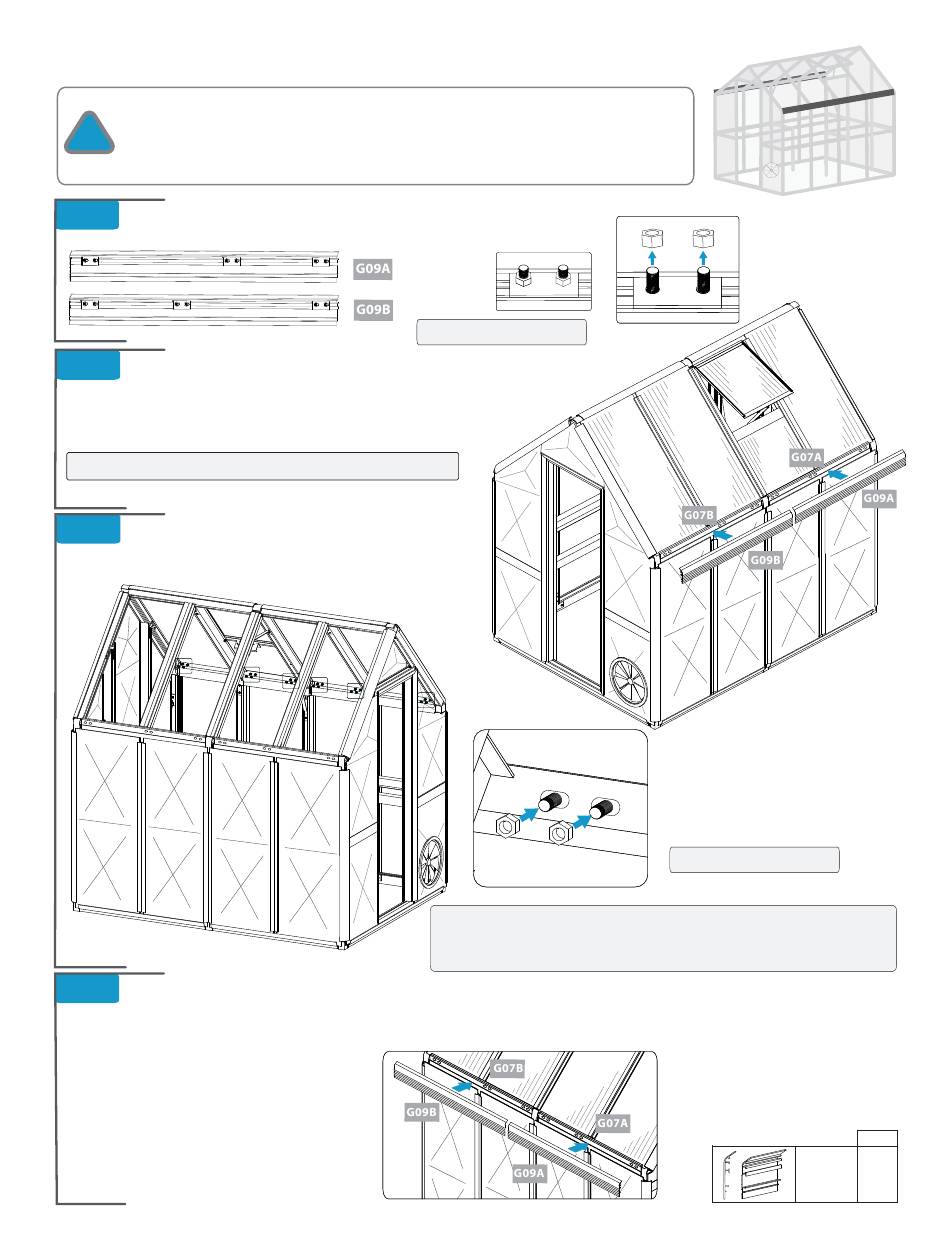

Place trim plates G09A and G09B onto profiles G07A and G07B
on outside of greenhouse. Trim plates fit over edges
of side and roof panels and bolts are inserted
into holes on profiles G07A and G07B.
NOTE: Trim plates cover edges of roof and side panels.
13.2B
From inside of greenhouse, place
hex nuts onto hex bolts in trim plates
G09A and G09B and tighten securely.
13.3
Repeat Step 13.2A and 13.2B on other side of greenhouse. Note the positions of profiles
G07A and G07B are reversed. Make sure to attach trim plate G09A to profile G07A in the
front and trim plate G09B to profile G07B in the back.
www.stcny.com
VIEWS FROM INSIDE.
IMPORTANT: The holes in profile G07A and G07B and the bolts in
trim plates G09A and G09B are in different positions. Fit trim plate
G09A into profile G07A. Fit trim plate G09B into profile G07B.
46 of 50
VIEWS FROM INSIDE.
Trim Plate
#G09A
#G09B
QTY
2
2
