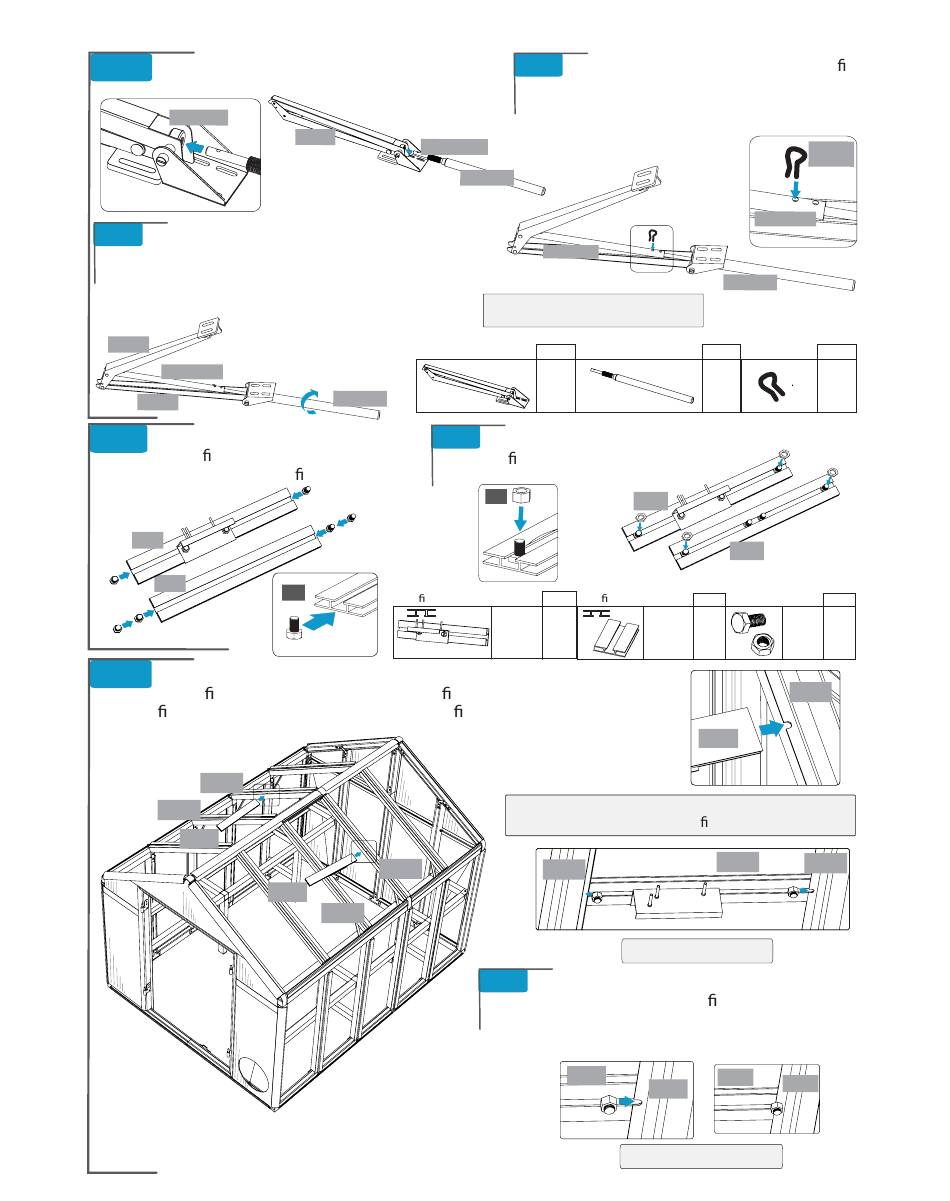

STC Easy2Build Easy-Grow Assembly Instructions Manual page 49

Unpack contents of Auto Vent Opener. Slide
10.4A
cylinder and piston rod through set collar on arm A.
set collar
10.4C Slide cylinder so threaded area enters set collar.
Turn cylinder clockwise to screw cylinder into
set collar. As you continue turning, the piston
rod forces the push arm back, pushing arm A
and arm B together.
arm B
push arm
arm A
Slide two S13 hex bolts into channel
10.5A
of pro le L05D and four S13 hex bolts
into channel of pro le L05G.
L05D
L05G
10.6A
With pins facing up on the inside of the greenhouse, slide one end
of pro le L05D into V-channel of pro le L03N. Angle it slightly to
t the other end into V-channel of pro le L03S.
L03Q
L03R
L05G
www.stcny.com
arm A
piston rod
Handle
cylinder
10.5B
S13
Pro le
L03N
L05D
L03S
10.4B Continue sliding cylinder so piston rod ts
into push arm and arm B begins to open.
Align hole in piston rod with second hole
in push arm. Insert hairQ`pin clip to secure.
cylinder
push arm
NOTE: The Auto Vent Opener will
be installed to the vent in step 10.10
Cylinder with Piston
QTY
1
Screw two S14 hex nuts onto bolts on ends of each
pro le. Do not completely tighten.
S14
L05D
Pro le
QTY
#L05D 1
IMPORTANT: Make sure the pins face UP on INSIDE
of the greenhouse when pro le L05D is installed.
L03N
VIEW FROM INSIDE.
10.6B Line up L05D channel with U-shaped
cutouts in sides of pro les L03N and
L03S. Slide hex nut and bolts into
U-shaped notches and tighten securely.
L05D
VIEWS FROM INSIDE.
47 of 57
hair pin
clip
push arm
cylinder
Hair Pin Clip
QTY QTY
1
L05G
Bolt / Nut
QTY
#S13
#L05G 1
#S14
L03N
L05D
L05D
L03S
L05D
L03S
L03S
1
QTY
6
4
