Install Trim Plates

Place the trim plates on a level surface.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.

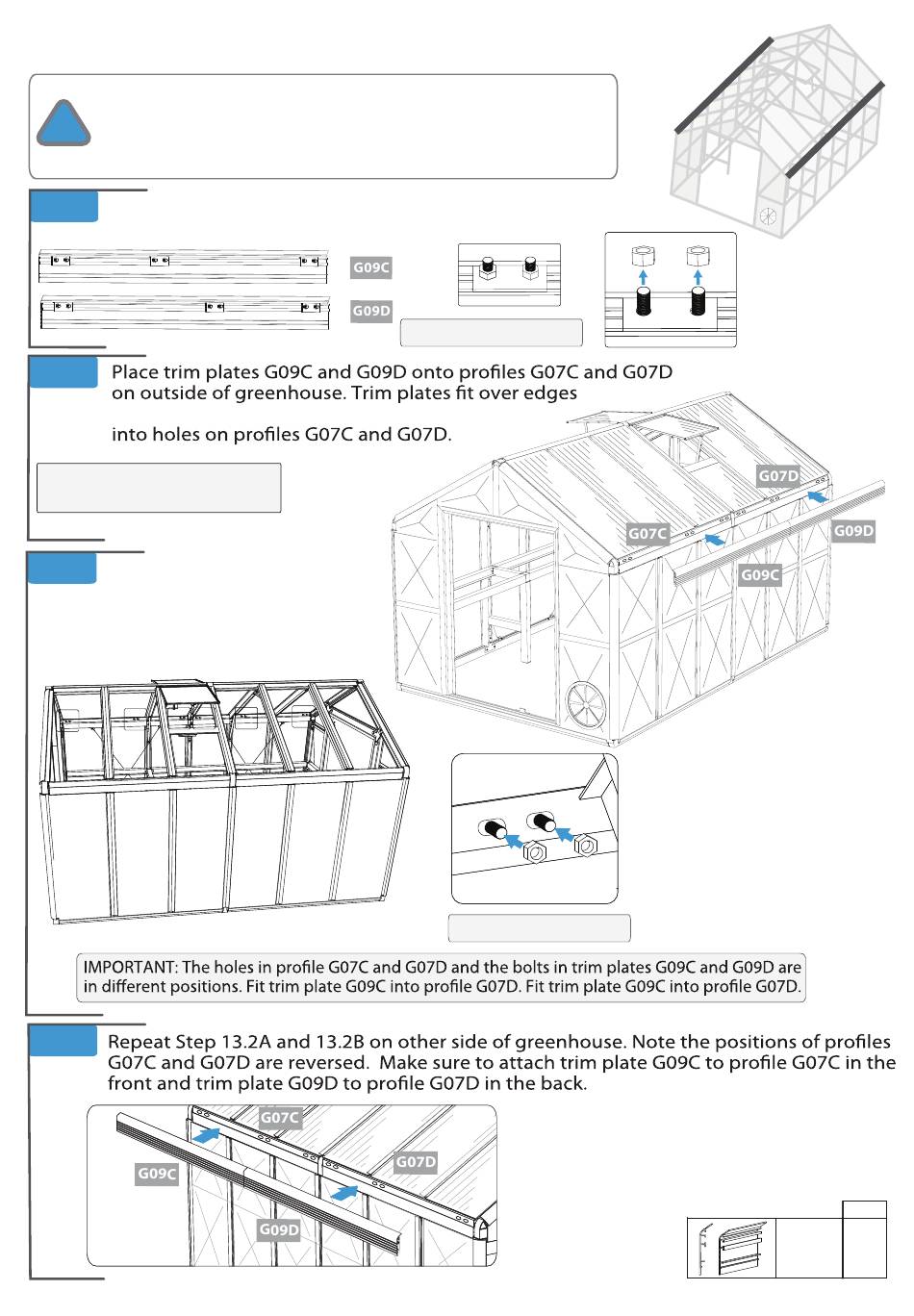

13.1 Remove the six hex nuts from the hex bolts attached to each
G09C and G09D trim plate BEFORE installing.
13.2A
of side and roof panels. Hex bolts are inserted
NOTE: Trim plates cover edges
of roof and side panels.
From inside of greenhouse,
13.2B
place hex nuts onto hex bolts
in trim plates G09C and G09D
and tighten securely.
13.3
www.stcny.com
VIEWS FROM INSIDE.
VIEWS FROM INSIDE.
50 of 56
Trim Plate
QTY
2
#G09C
#G09D 2
