Install Trim Plates

Place the trim plates on a level surface.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.

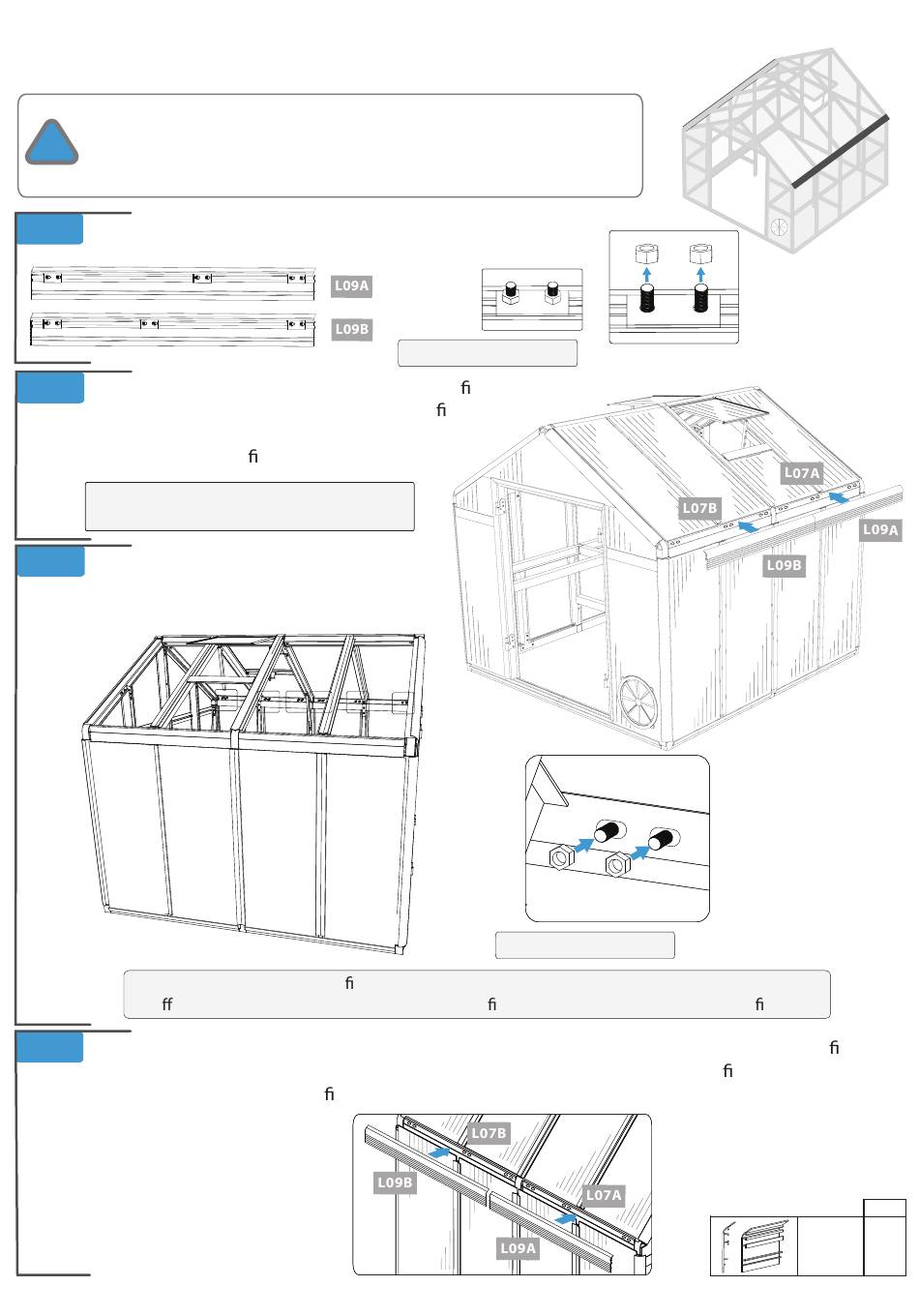

14.1 Remove the six hex nuts from the hex bolts attached to
each L09A and L09B trim plate BEFORE installing.
14.2A Place trim plates L09A and L09B onto pro les L07A and L07B
on outside of greenhouse. Trim plates t over edges
of side and roof panels and bolts are inserted
into holes on pro les L07A and L07B.
NOTE: Trim plates cover edges of black
rubber stripping, and roof and side panels.
From inside of greenhouse, place
14.2B
hex nuts onto hex bolts in trim plates
L09A and L09B and tighten securely.
IMPORTANT: The holes in pro le L07A and L07B and the bolts in trim plates L09A and L09B are
in di erent positions. Fit trim plate L09A into pro le L07A. Fit trim plate L09B into pro le L07B.
14.3
Repeat Step 14.2A and 14.2B on other side of greenhouse. Note the positions of pro les
L07A and L07B are reversed. Make sure to attach trim plate L09A to pro le L07A in the front
and trim plate L09B to pro le L07B in the back.
www.stcny.com
VIEWS FROM INSIDE.
VIEWS FROM INSIDE.
51 of 55
Trim Plate
QTY
#L09A 2
#L09B 2
