STC Easy2Build Easy-Grow Assembly Instructions Manual page 16

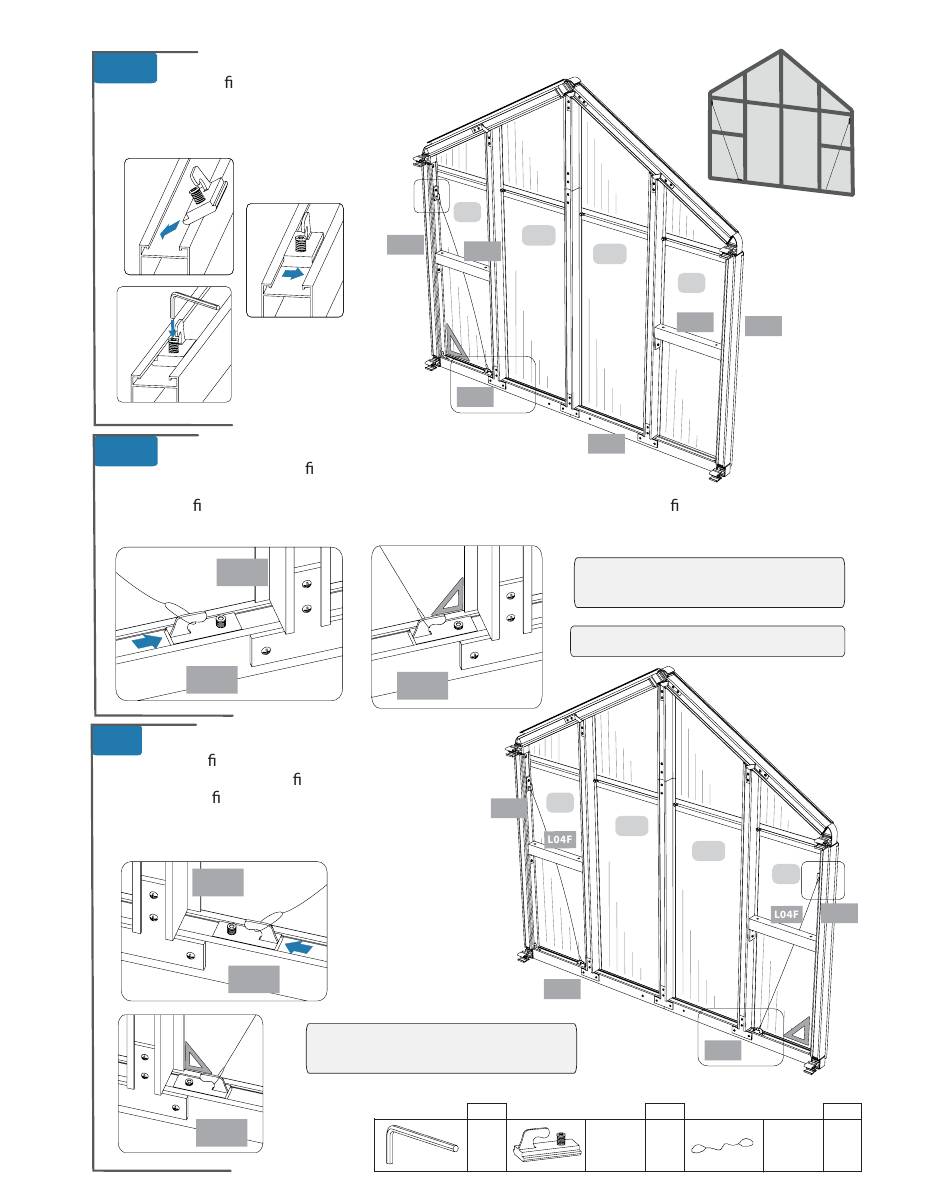

Insert long side of cable connector S06 at an angle
1.13A
into pro le channel L02B with HOOK FACING
UP. Slide connector to other side of
channel. Use hex key to securely
tighten and hold in place.
1.13B Attach one side of short cable S16 to hook on S06
and lace under pro le L04F. Attach other side of cable to a
second S06 cable connector and with hook facing center, insert into
pro le channel L01I. Push the S06 connector towards center until pro le corners are square
and cable is tight. Use hex key to securely tighten and hold in place.
L03C
L01I
1.14
Repeat step 1.13 inserting cable connectors S06
into pro les L02A and L01J. Cable rests next to
panel Y1, under pro le L04F. Slide connector
until pro le corners are square and cable is
tight. Use hex key to securely tighten
second connector and hold in place.
L03D
L01J
L01J
www.stcny.com
Y1
L02B
L04F
L01I
L01I
L02B
IMPORTANT: Make sure all corners
are squared at 90 degrees.
Hex Key
QTY
1
14 of 57
Y16
Y16
Y1
L04F
L01J
IMPORTANT: Make sure all corners
are squared at 90 degrees.
NOTE: ALL VIEWS ARE FROM INSIDE.
Y1
Y16
L01I
Cable Connector
QTY
#S06 4
L02A
Y16
Y1
L02A
L01J
Cable
QTY
#S16 2
