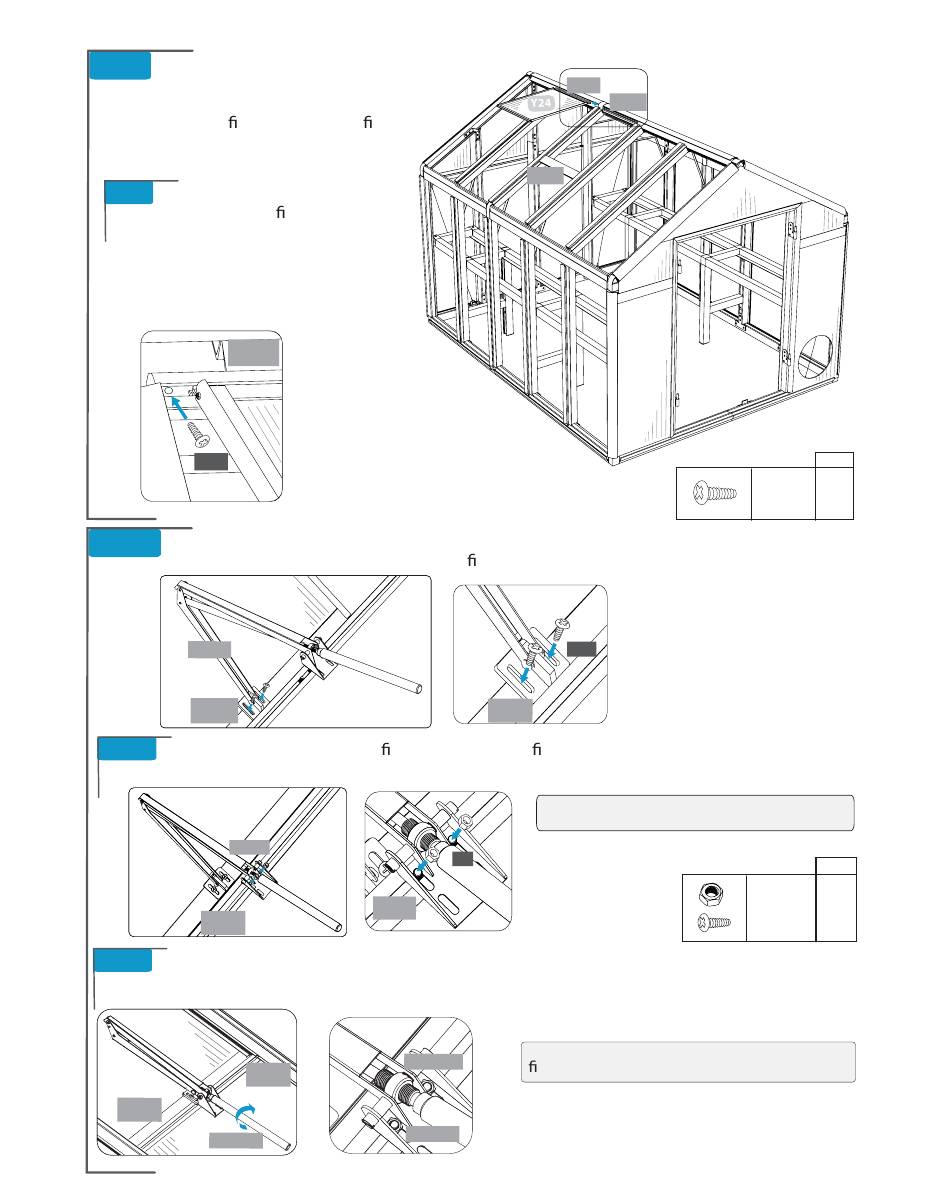

STC Easy2Build Easy-Grow Assembly Instructions Manual page 51

Stand on a small step ladder inside
10.9A
the greenhouse. Install second roof
vent to the left side of the greenhouse.
Slide pro le L11A into pro le L08B
from the back of the greenhouse
towards the front.
Continue to slide vent past
10.9B
the end of pro le L08B until
the hole in the other end is
visible. Screw S24A into hole
in L08A and slide vent back
until it rests next to the screw.
L08B
S24A
From the inside of the greenhouse open arms of auto vent slightly. Line up window
10.10A
bracket on arm B to holes in vent pro le L10A and attach with two S41A screws.
arm B
L10A
Slide bolts in channel of pro le L05G until they t into holes on end of arm A. Secure with
10.10B
two S14 hex nuts.
arm A
L05G
10.10C Carefully push upper handle B down until vent closes completely. Turn cylinder clockwise
until threaded area of cylinder is centered to set collar as shown.
L05G
L10A
cylinder
www.stcny.com
L05G
L10A
NOTE: ALL VIEWS ARE FROM INSIDE.
S14
L05G
IMPORTANT: Tighten the cylinder when you
set collar
nish or the auto vent will not function.
cylinder
49 of 57
L11A
L08B
Screw
S41A
Nut / Screw
QTY
#S24A 1
QTY
#S14 2
#S41A 2
