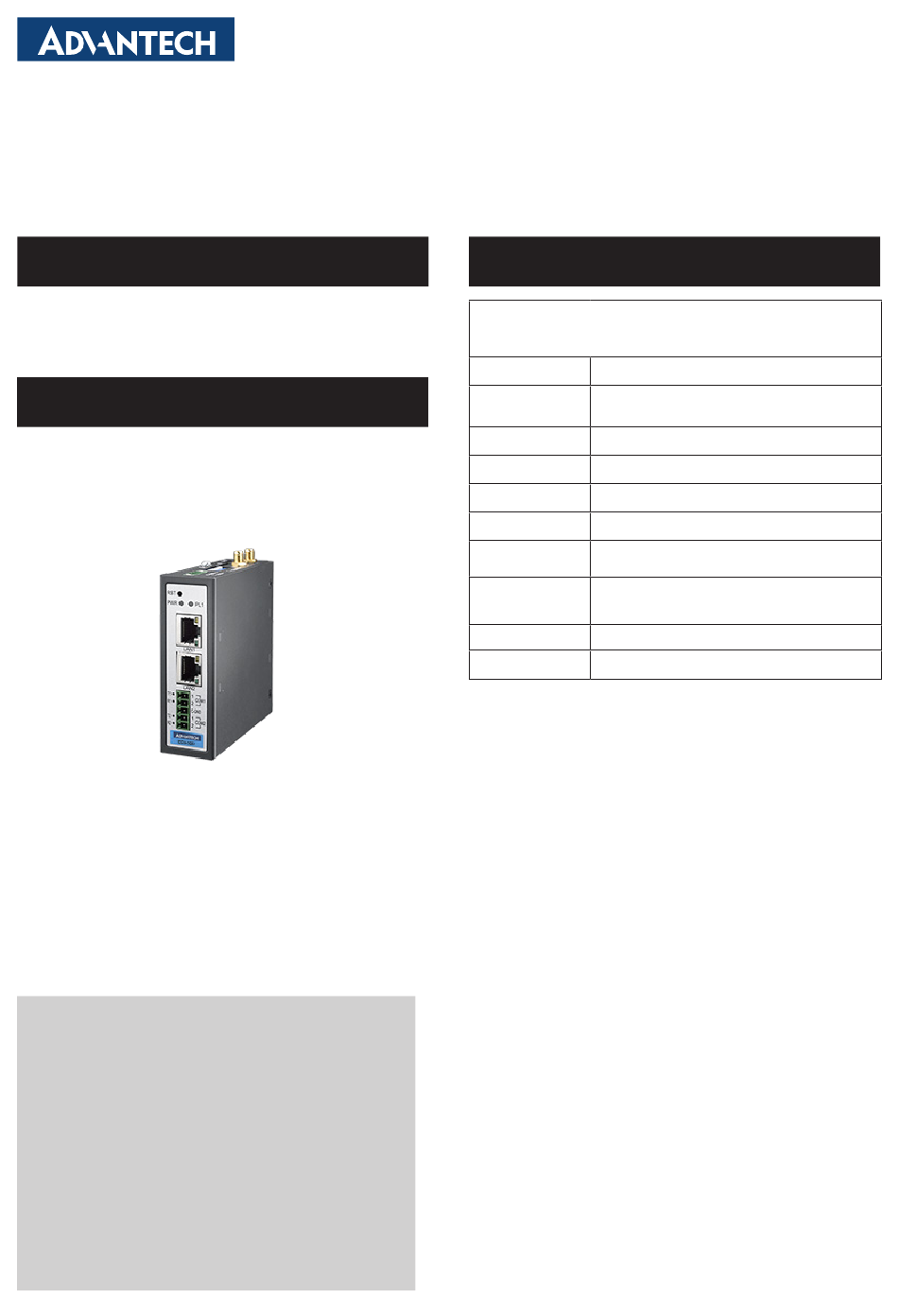

ECU-1051TL
Startup Manual
Packing List
Before installation, please ensure that the following items
have been included in your shipment:
1. ECU-1051 Product

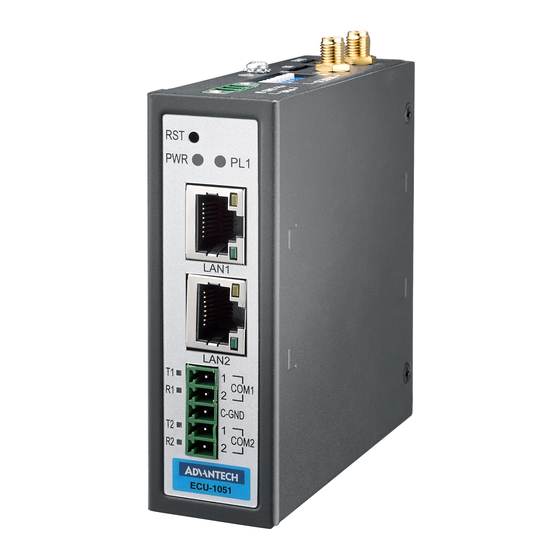

Overview
For distributed equipment management and maintenance,
ECU-1051TL playing as data publish gateway from site to
Cloud. The operation temperature range is -40~70°C. This
module is extremely cost-effective solution for industrial
measurement and monitoring applications.
Figure 1. Product Overview
For more information on this and other Advantech
products, please visit our website at
http://www.advantech.com
http://www.advantech.com/Products
For technical support and service, please visit our
support website at
http://support.advantech.com.tw/support/default.
aspx
This manual is for ECU-1051.
Part No. 2043105100
Printed in Taiwan
Specifications
Mounting
Power
Requirements
Ethernet Ports
Serial Ports
Indicators
Watchdog
Storage
Power
Consumption
Operation Temp.
Warranty
Edition 1
May 2019
Technical Specification of ECU-1051
Wall-Mount/ DIN-Rail
10~30 VDC
2 x 10/100 Base-T RJ-45 ports
2 x RS232 / RS 485
Power, LAN(LINK, ACT), Programmable
Built-in Hardware & Software
NAND Flash/ 512MB for System Image
1 x Micro SD slot for Data
2.4W @ 24VDC
-40 ~ 70 ℃
2 years
ECU-1051TL Startup Manual 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Advantech ECU-1051TL
Summary of Contents for Advantech ECU-1051TL
- Page 1 Requirements For distributed equipment management and maintenance, Ethernet Ports 2 x 10/100 Base-T RJ-45 ports ECU-1051TL playing as data publish gateway from site to 2 x RS232 / RS 485 Serial Ports Cloud. The operation temperature range is -40~70°C. This...
-
Page 2: Dimensions: (Unit: Mm)
Dimensions: (Unit: mm) Figure 2. Dimension Power Supply Wiring Figure 3. Power Supply Pin Definition Description PWR V+ DC power input PWR V- DC power input 2 ECU-1051TL Startup Manual... -
Page 3: Jumper Setting
Communication PIN Assignments RS-232/485 Serial Ports (Pin Assignments) C-GND Pins RS-232 RS-485 Data+ Data- Jumper Setting Figure 4. Jumper Location CN9(COM1) / CN10(COM2) Serial Ports (RS232/RS485) (4-6) RS232 mode (3-5) (2-4) Default RS485 mode, No Terminator (1-3) ECU-1051TL Startup Manual 3... -
Page 4: Installation
Installation 1. Wall Mount Figure 5. Wall Mount installation 2. DIN-Rail. Figure 6. DIN-Rail Kit Figure 7. DIN-Rail installation 4 ECU-1051TL Startup Manual... - Page 5 The WISE-PaaS/EdgeLink Studio is for completing ECU-1000TL and its I/O configuration and management. The PC operation system is Windows XP/Windows 7. The software installation package as well as user’s manual can be acquired from the fol- lowing path: http://www.advantech.com/ ECU-1051TL Startup Manual 5...
