Table of Contents
Related Manuals for Advantech WISE-2200-M
Summary of Contents for Advantech WISE-2200-M
- Page 1 User Manual WISE-2200-M...
-
Page 2: Product Warranty (2 Years)
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. -
Page 3: Technical Support And Assistance
Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –... -
Page 4: Document Feedback
Document Feedback To assist us in making improvements to this manual, we would welcome comments and constructive criticism. Please send all such - in writing to: support@advantech.com Package List Before setting up the system, check that the items listed below are included and in good condition. -
Page 5: Safety Instructions
Safety Instructions Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible. -
Page 6: Federal Communication Commission Interference Statement
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. -
Page 7: Industry Canada Statement
Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour l'exploitation de l'émetteur. Impedance (Ω) Manufacturer Model Antenna Type Max Gain (dBi) ADVANTECH 1750008837-01 Dipole 1.06... - Page 8 Chapter Product Overview...
-
Page 9: Series Family And Specifications

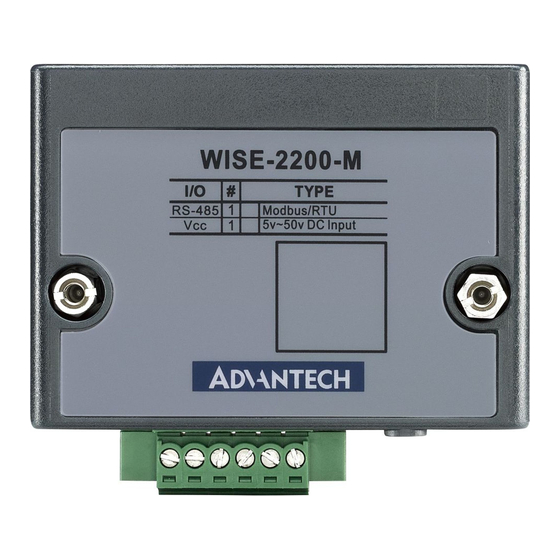

Series Family and Specifications Function Model Description Modbus Reading WISE-2200-M LoRaWAN Smart I/O Module Mechanical Design and Dimensions Figure 1.1 WISE-2200-M Dimension Front & Side... -
Page 10: System Diagram
System Diagram Figure 1.2 WISE-2200-M... -
Page 11: Led Definition
LED Definition 1.4.1 WISE-2200-M Series Figure 1.3 WISE-2200-M LED Indicator LED Indication Colour Behaviour Green Turn on when power on Turn on when OTAA join unsuccessfully Yellow Blink when send data to Gateway (On 0.2 sec) Blink when receive data from Gateway (On 0.2 sec) - Page 12 Chapter General Specification...
-
Page 13: General Specification
General Specification 2.1.1 Wireless Interface Protocol – LoRaWAN Operating Frequency – 902.3~914.9MHz Antenna Gain – 902~928MHz: 1.06 dBi Transmit Power – +17.52dBm for 920.3~923.4MHz Receiver Sensitivity – BW=62.5KHz, SF=6: -119dBm – BW=62.5KHz, SF=12: -137dBm – BW=500KHz, SF=6: -109dBm – BW=500KHz, SF=12: -128dBm 2.1.2 General –... - Page 14 2.1.3 Power Power input voltage: 5 ~ 50 VDC WISE-2200-M I/O Pinout 2.3.1 WISE-2200-M Terminal Block WISE-2200-M Define Pin Number Pin Name Description RS485_D+ RS-485 Data+ RS485_D- RS-485 Data- Power input (+) Power input (-)
